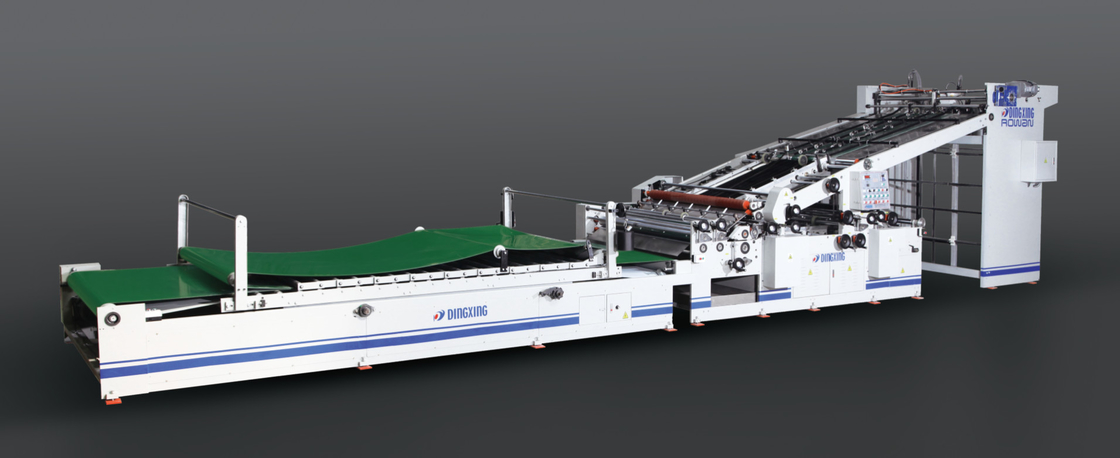

Single Three Layers Automatic Flute Laminator Middle Speed DF-1650EL

Single Three Layers Automatic Flute Laminator Middle Speed DF-1650EL
Single Three Layers Automatic Flute Laminator Middle Speed DF-1650EL Single Three Layers Automatic Flute Laminator Middle Speed DF-1650EL Single Three Layers Automatic Flute Laminator Middle Speed DF-1650EL Single Three Layers Automatic Flute Laminator Middle Speed DF-1650EL Single Three Layers Automatic Flute Laminator Middle Speed DF-1650EL

Large Image :  Single Three Layers Automatic Flute Laminator Middle Speed DF-1650EL

Product Details:
Place of Origin: China
Brand Name: DINGXING/DINGYI
Certification: ISO/CE
Model Number: DF-1650EL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 30000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 45DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 SET/MONTH

Single Three Layers Automatic Flute Laminator Middle Speed DF-1650EL

Description
Max. Speed: 6000 Piece/Hour Top Sheet GSM: 120-800
Bottom Sheet GSM: 300-800 Lamination Accuracy: ±1.5mm
High Light:

Three Layers Automatic Flute Laminator

,

auto flute laminator Middle Speed

,

Single Layers Automatic Flute Laminator

DF-1650EL Middle Speed Flute Laminator



DF-1650EL
Max. Size: 1650mm*1650mm
Min. Size: 450mm*450mm
Top Sheet GSM: 120g/㎡—800g/㎡
Bottom Sheet Thickness: 300g/㎡—800g/㎡
Max. Speed: 0-100sheets/min
Lamination Accuracy: ±1.5mm
Total weight: 7500kgs
Machine Size: 15005mm*2670mm*2500mm
Machine Power: AC-380V/50HZ/19KW





Single Three Layers Automatic Flute Laminator Middle Speed DF-1650EL 0



Single Three Layers Automatic Flute Laminator Middle Speed DF-1650EL 1



• This Rowan Series Automatic Flute Laminator is a fortified model adopting several patented mechanisms with a great improvement onmechanical system, driven system and aligning system by qualified engineers over years of experiences.



Single Three Layers Automatic Flute Laminator Middle Speed DF-1650EL 2



• This Rowan Series Automatic Flute Laminator is applied in broad scope of papers, bottom sheet from cardboards,grey

paperboards, single layer/three/five layers corrugated boards which can be laminated easily and accurately.



Single Three Layers Automatic Flute Laminator Middle Speed DF-1650EL 3

• Fine selection of parts with high accuracy, high tensile and high endurance ensures stable running and long operational life so as toproduce a great deal of profits for the customers.



Single Three Layers Automatic Flute Laminator Middle Speed DF-1650EL 4



• Improvement on driven system is to cut down maintenance cost and this new system lowers the noise and ensure easy and

convenient operation.



Single Three Layers Automatic Flute Laminator Middle Speed DF-1650EL 5
