17KW Pile Turner Machine Dust Removal Paper Turning Machine

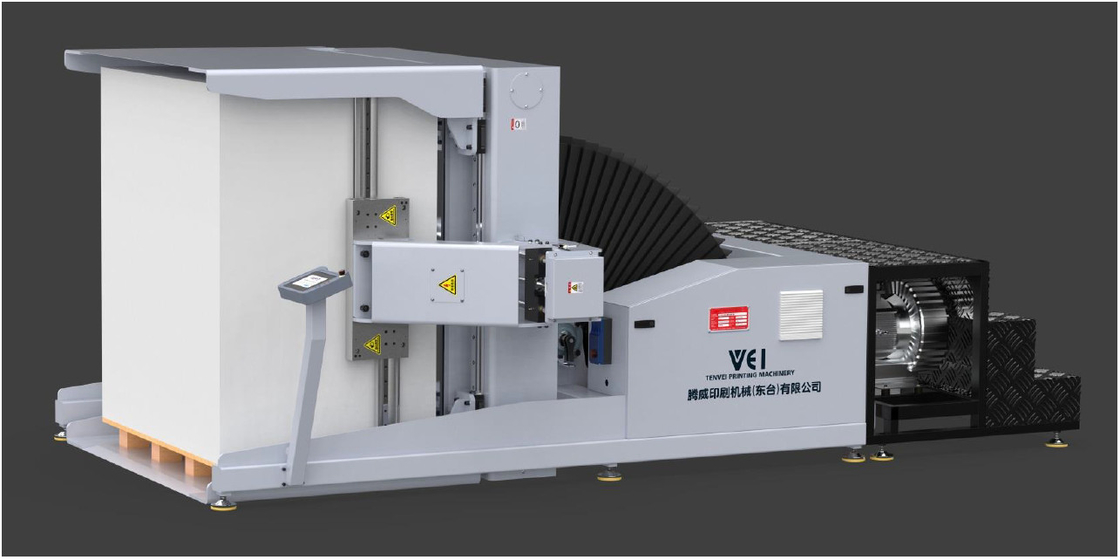

VEI-145A Automatic Paper Stacker Turning and Finishing Machine

1. Introduction :

VEI-145A automatic stack turning and finishing machine is a automatic flipping equipment which used to loosen the single-sheet paper stacks before and after printing, remove dust, reduce ink odor, make the edges of the paper neat at 90 degrees, change the special card board, and make the stack of paper during double-sided printing. This equipment adopts automatic one-button start operation, thereby reducing labor intensity and saving labor, improving production efficiency and printing quality, and reducing the probability of double-sheet downtime in printing and subsequent processing equipment.

2. Function and configuration

1. Equipped with 4 automatic operation program modes
2. Equipped with 3 channel blowing system
3. Equipped with side gauge automatic moving system
4. Equipped with man-machine interface testing and parameter debugging system
5. Equipped with wireless remote control system
6. Equipped with a wind-free coupling system
7. Equipped with vibration stepless frequency modulation system
8 Equipped with blower stepless pressure regulation system
9 Equipped with oil hydraulic twist-free coupling system
10 Equipped with digital clamping pressure control system
11 Equipped with stepless speed regulation system of blowing speed
12 Equipped with automatic program memory system when power off
1 3 Equipped with side gauge automatic paper detection system
14 Adopt PCB integrated wiring system
15 Equipped with air pressure filter and pressure regulator

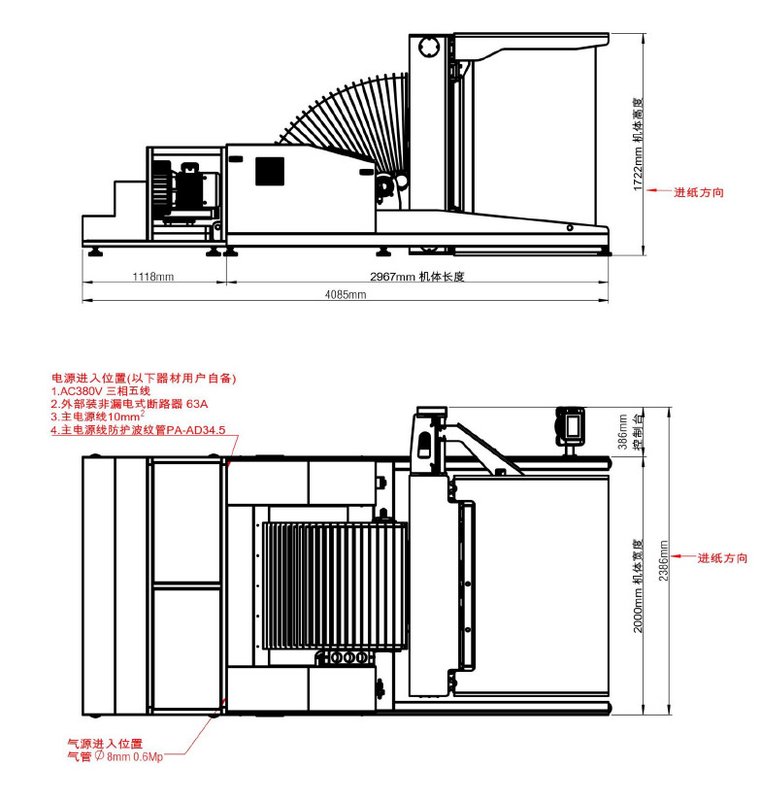

3.Parameter

4. Detail

The PCB integrated wiring system improves the operation stability and simplifies the faults caused by complex wiring.

Adopt DI plug-in high-speed motion program controller, which can be quickly replaced and repaired

High-strength heavy-duty steel plate welded base to improve equipment stability and durability

Using high pressure hydraulic coupling rotator, the hydraulic oil pipe is in a static state when working (to prevent the torsion of the hydraulic pipe when it rotates and reduce the service life)

One-piece bending paper clamping table, no welding is required for paper clamping, which improves overall safety and has a beautiful appearance. The front end of the paper feeding is processed with a one-piece slope, which is convenient for the entry of paper piles.

It adopts touch screen control. The man-machine interface is equipped with rich flexible operation selection and maintenance and debugging functions, and various safety alarm prompts and misoperation prompts are built-in.
