1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging

Certification
China Dongtai Dingxing Machinery Technology Co., Ltd certification
China Dongtai Dingxing Machinery Technology Co., Ltd certification
I'm Online Chat Now

1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging

1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging
1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging 1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging 1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging 1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging

Large Image :  1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging

Product Details:
Place of Origin: CHINA
Brand Name: TENGWEI
Certification: ISO/CE
Model Number: TEWE-185A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 20000-30000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 Set/Month

1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging

Description
Max. Height: 1600mm(including Pallet) Min. Height: 850mm(including Pallet)
Nozzle Quan.: 5 Flow: 2968m³/Hour
High Light:

1850*1350mm Paper Pile Turning Machine

,

Paper Aligning Pile Turning Machine

,

1850*1350mm paper jogging machine

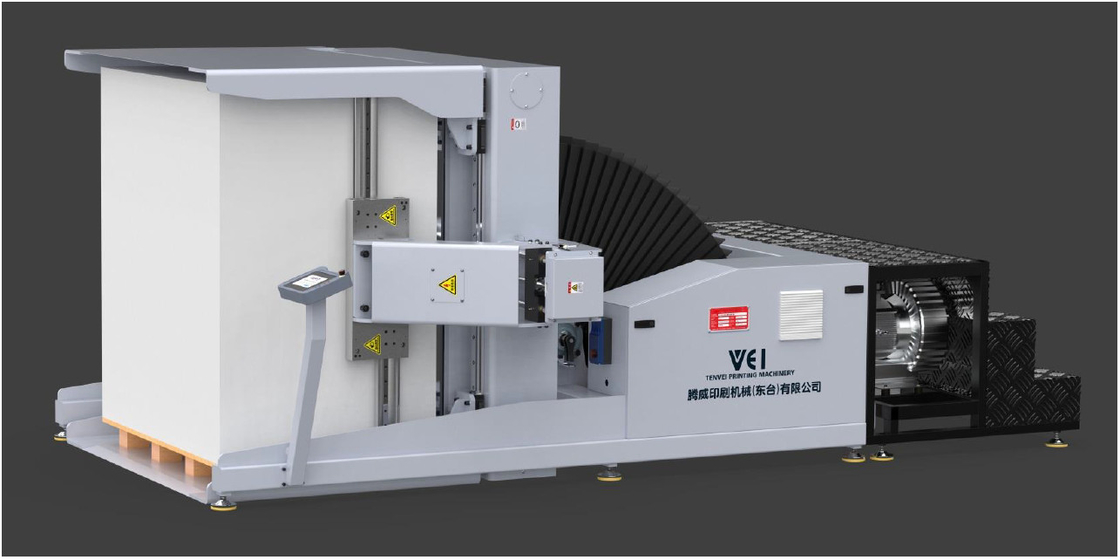

WPT-185A Automatic Paper Stacker Turning and Finishing Machine



1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging 0



1. Introduction :

Automatic Paper Stacker Turning and Finishing Machine is used to loosen, remove dust, reduce ink odor, neatly align the edges of the paper at 90 degrees, replace the special pallet, and automatically turn the stack during double-sided printing before or after the print process. This equipment adopts automatic one-button start operation, thereby reducing labor intensity and saving labor, improving production efficiency, and printing quality, and reducing the probability of double-sheet downtime in printing and subsequent processing equipment.



2. Function and configuration

  • Equipped with 4 automatic operation program modes
  • Equipped with 4-channel independent blowing system(2-channel for WPT-125E)
  • Equipped with side gauge automatic moving system
  • Equipped with touch screen testing and parameter debugging system
  • Equipped with pallet centering function
  • Equipped with wireless remote-control system
  • Equipped with operation warning system
  • Equipped with a wind-free coupling system
  • Equipped with vibration stepless frequency modulation system
  • Equipped with stepless pressure regulation system for blowing
  • Equipped with oil pressure free winding coupling system
  • Equipped with digital clamping pressure control system
  • Equipped with stepless speed regulation system for blowing speed
  • Equipped with upper and lower pallet reduction system
  • Equipped with automatic program memory system when power off
  • Equipped with side gauge automatic paper detection system
  • Adopt PCB integrated wiring system

3.Parameter

  WPT-120E WPT-145E WPT-165A WPT-185A
Max. Size 750*1150mm 1450*1100mm 1650*1200mm 1850*1350mm
Min. Size 400*400mm 600*400mm 800*600mm 800*600mm
Max. Height 1500mm (pallet include) 1600mm (pallet include) 1700mm (pallet include) 1600mm (pallet include)
Min. Height 650mm (pallet include) 850mm (pallet include) 950mm (pallet include) 850mm (pallet include)
Nozzle Quan. 2 4 4 5
Flow 1488m³/H 2800m³/H 2800m³/H 2968m³/H
Flow Pressure 40KPA 50KPA 60KPA 60KPA
Power 11KW 22KW 25KW 30KW
Supply AC380V/50HZ AC380V/50HZ AC380V/50HZ AC380V/50HZ
Weight 3000KG 4200KG 5200KG 6300KG



1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging 1



4. Detail

1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging 2

The PCB integrated wiring system improves the operation stability and simplifies the faults caused by complex wiring.

1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging 3



Adopt DI plug-in high-speed motion program controller, which can be quickly replaced and repaired



1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging 4



High-strength heavy-duty steel plate welded base to improve equipment stability and durability



1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging 5



Using high pressure hydraulic coupling rotator, the hydraulic oil pipe is in a static state when working (to prevent the torsion of the hydraulic pipe when it rotates and reduce the service life)

1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging 6



One-piece bending paper clamping table, no welding is required for paper clamping, which improves overall safety and has a beautiful appearance. The front end of the paper feeding is processed with a one-piece slope, which is convenient for the entry of paper piles.





1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging 71850*1350mm Paper Pile Turning Machine Paper Aligning Jogging 8



It adopts touch screen control. The man-machine interface is equipped with rich flexible operation selection and maintenance and debugging functions, and various safety alarm prompts and misoperation prompts are built-in.

1850*1350mm Paper Pile Turning Machine Paper Aligning Jogging 9
