2 Nozzles Automatic Stack Paper Pile Turner Reduce Ink Odor

2 Nozzles Automatic Stack Paper Pile Turner Reduce Ink Odor
2 Nozzles Automatic Stack Paper Pile Turner Reduce Ink Odor 2 Nozzles Automatic Stack Paper Pile Turner Reduce Ink Odor 2 Nozzles Automatic Stack Paper Pile Turner Reduce Ink Odor 2 Nozzles Automatic Stack Paper Pile Turner Reduce Ink Odor

Large Image :  2 Nozzles Automatic Stack Paper Pile Turner Reduce Ink Odor

Product Details:
Place of Origin: CHINA
Brand Name: TENGWEI
Certification: ISO/CE
Model Number: VEI-125A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 15000-20000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 Set/Month

2 Nozzles Automatic Stack Paper Pile Turner Reduce Ink Odor

Description
Max. Height: 1400mm(including Pallet) Min. Height: 650mm(including Pallet)
Suction Pressure: 40KPA Flow: 1000m³/Hour
High Light:

Automatic Stack Paper Pile Turner

,

2 Nozzles Automatic Paper Stack

,

2 Nozzles Paper Pile Turner

VEI-125A Pile Turner



· Can remove dust on the paper surfacelmprove ink adhesion and image quality It can eliminate static electricity on the surface of the paper, making the paper separation process smooth Improve ink adhesion and image quality When double- sided printing. the paper stack can be automatically turned 180 degrees



. Turn over to improve work efficiency and reduce labor intensity Using the principle of air compression friction heat energy to dry the paper surface without increasing energy consumption Use high-pressure wind energy to perform timely and high-frequency vibration to loosen the paper neatly, efficiently and quickly. reduce labor intensity. and save labor

VEI-125A Automatic Paper Stacker Turning and Finishing Machine



2 Nozzles Automatic Stack Paper Pile Turner Reduce Ink Odor 0





2 Nozzles Automatic Stack Paper Pile Turner Reduce Ink Odor 1



1. Introduction :

VEI-125A automatic stack turning and finishing machine is a automatic flipping equipment which used to loosen the single-sheet paper stacks before and after printing, remove dust, reduce ink odor, make the edges of the paper neat at 90 degrees, change the special card board, and make the stack of paper during double-sided printing. This equipment adopts automatic one-button start operation, thereby reducing labor intensity and saving labor, improving production efficiency and printing quality, and reducing the probability of double-sheet downtime in printing and subsequent processing equipment.



2. Function and configuration

1. Equipped with 4 automatic operation program modes
2. Equipped with 2 channel blowing system
3. Equipped with side gauge automatic moving system

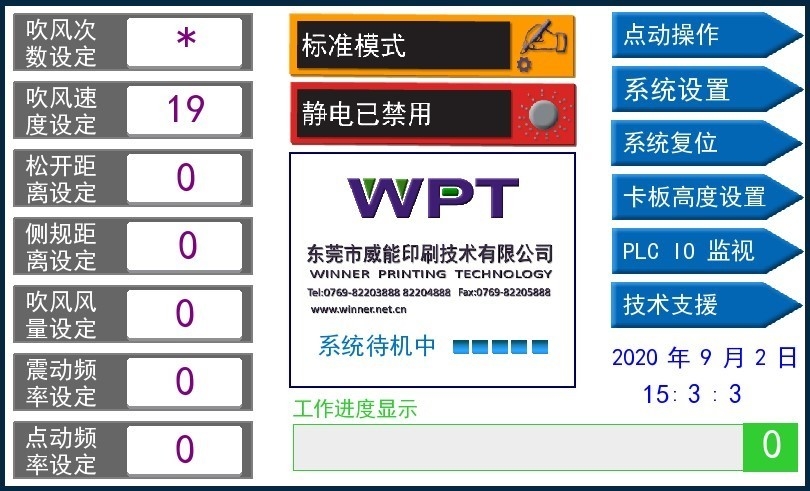

4. Equipped with man-machine interface testing and parameter debugging system
5. Equipped with wireless remote control system
6. Equipped with a wind-free coupling system
7. Equipped with vibration stepless frequency modulation system
8 Equipped with blower stepless pressure regulation system
9 Equipped with oil hydraulic twist-free coupling system
10 Equipped with digital clamping pressure control system
11 Equipped with stepless speed regulation system of blowing speed
12 Equipped with automatic program memory system when power off
1 3 Equipped with side gauge automatic paper detection system
14 Adopt PCB integrated wiring system
15 Equipped with air pressure filter and pressure regulator



3.Parameter

  WPT-125A WPT-145A WPT-165A WPT-185A
Max. Size 800*1200mm 1450*1100mm 1650*1200mm 1850*1350mm
Min. Size 400*400mm 600*400mm 800*600mm 800*600mm
Max. Height 1400mm (pallet include) 1600mm (pallet include) 1700mm (pallet include) 1600mm (pallet include)
Min. Height 650mm (pallet include) 850mm (pallet include) 950mm (pallet include) 850mm (pallet include)
Nozzle Quan. 2 4 4 5
Flow 1000m³/H 2800m³/H 2800m³/H 2968m³/H
Flow Pressure 40KPA 50KPA 60KPA 60KPA
Power 6KW 22KW 25KW 30KW
Supply AC380V/50HZ AC380V/50HZ AC380V/50HZ AC380V/50HZ
Weight 2500KG 4200KG 5200KG 6300KG

2 Nozzles Automatic Stack Paper Pile Turner Reduce Ink Odor 22 Nozzles Automatic Stack Paper Pile Turner Reduce Ink Odor 3
