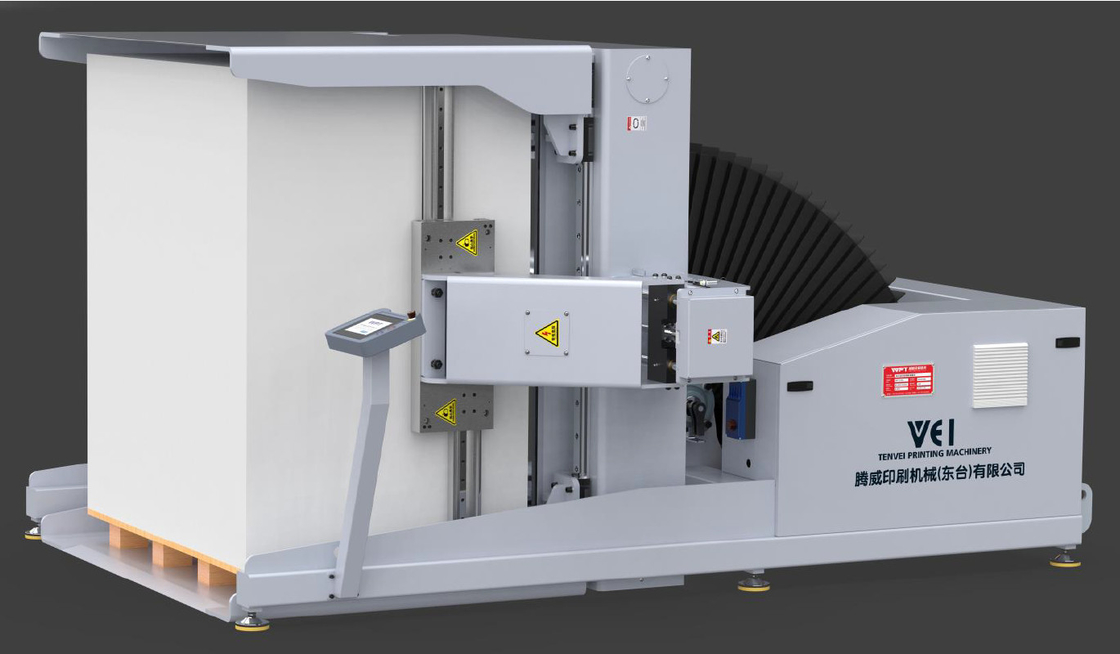

3 Nozzle Pile Turning Machine Paper Jogging Pallet Feeding

3 Nozzle Pile Turning Machine Paper Jogging Pallet Feeding
3 Nozzle Pile Turning Machine Paper Jogging Pallet Feeding 3 Nozzle Pile Turning Machine Paper Jogging Pallet Feeding 3 Nozzle Pile Turning Machine Paper Jogging Pallet Feeding 3 Nozzle Pile Turning Machine Paper Jogging Pallet Feeding

Large Image :  3 Nozzle Pile Turning Machine Paper Jogging Pallet Feeding

Product Details:
Place of Origin: CHINA
Brand Name: TENGWEI
Certification: ISO/CE
Model Number: VEI-125A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 15000-25000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 Set/Month

3 Nozzle Pile Turning Machine Paper Jogging Pallet Feeding

Description
Max. Height: 1500mm(including Pallet) Min. Height: 750mm(including Pallet)
Suction Pressure: 40KPA Flow: 1860m³/Hour
High Light:

3 Nozzle Pile Turning Machine

,

Pallet Feeding paper jogging machine

,

Pallet Feeding Pile Turning Machine

VEI-145A Pile Turner



1. Introduction :

VEI-145A automatic stack turning and finishing machine is a automatic flipping equipment which used to loosen the single-sheet paper stacks before and after printing, remove dust, reduce ink odor, make the edges of the paper neat at 90 degrees, change the special card board, and make the stack of paper during double-sided printing. This equipment adopts automatic one-button start operation, thereby reducing labor intensity and saving labor, improving production efficiency and printing quality, and reducing the probability of double-sheet downtime in printing and subsequent processing equipment.



2. Function and configuration

1. Equipped with 4 automatic operation program modes
2. Equipped with 3 channel blowing system
3. Equipped with side gauge automatic moving system
4. Equipped with man-machine interface testing and parameter debugging system
5. Equipped with wireless remote control system
6. Equipped with a wind-free coupling system
7. Equipped with vibration stepless frequency modulation system
8 Equipped with blower stepless pressure regulation system
9 Equipped with oil hydraulic twist-free coupling system
10 Equipped with digital clamping pressure control system
11 Equipped with stepless speed regulation system of blowing speed
12 Equipped with automatic program memory system when power off
1 3 Equipped with side gauge automatic paper detection system
14 Adopt PCB integrated wiring system
15 Equipped with air pressure filter and pressure regulator



3.Parameter

  WPT-125E WPT-145E WPT-165A WPT-185A
Max. Size 800*1200mm 1450*1050mm 1650*1200mm 1850*1350mm
Min. Size 400*400mm 600*500mm 800*600mm 800*600mm
Max. Height 1400mm (pallet include) 1500mm (pallet include) 1700mm (pallet include) 1600mm (pallet include)
Min. Height 650mm (pallet include) 750mm (pallet include) 950mm (pallet include) 850mm (pallet include)
Nozzle Quan. 2 3 4 5
Flow 1000m³/H 1860m³/H 2800m³/H 2968m³/H
Flow Pressure 40KPA 40KPA 60KPA 60KPA
Power 6KW 17KW 25KW 30KW
Supply AC380V/50HZ AC380V/50HZ AC380V/50HZ AC380V/50HZ
Weight 2500KG 3600KG 5200KG 6300KG



3 Nozzle Pile Turning Machine Paper Jogging Pallet Feeding 03 Nozzle Pile Turning Machine Paper Jogging Pallet Feeding 1
