Dust Removal Pile Turner Machine 1850*1350mm Paper Sheet Stacker

Dust Removal Pile Turner Machine 1850*1350mm Paper Sheet Stacker
Dust Removal Pile Turner Machine 1850*1350mm Paper Sheet Stacker Dust Removal Pile Turner Machine 1850*1350mm Paper Sheet Stacker Dust Removal Pile Turner Machine 1850*1350mm Paper Sheet Stacker Dust Removal Pile Turner Machine 1850*1350mm Paper Sheet Stacker

Large Image :  Dust Removal Pile Turner Machine 1850*1350mm Paper Sheet Stacker

Product Details:
Place of Origin: CHINA
Brand Name: TENGWEI
Certification: ISO/CE
Model Number: TEWE-185A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 20000-30000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 Set/Month

Dust Removal Pile Turner Machine 1850*1350mm Paper Sheet Stacker

Description
Max. Height: 1600mm(including Pallet) Min. Height: 850mm(including Pallet)
Nozzle Quan.: 5 Flow: 2968m³/Hour
High Light:

Dust Removal Pile Turner Machine Paper

,

1850*1350mm paper stacker machine

,

1850*1350mm paper Pile Turner Machine

WPT-185A Automatic Paper Stacker Turning and Finishing Machine



Dust Removal Pile Turner Machine 1850*1350mm Paper Sheet Stacker 0



1. Introduction :

Automatic Paper Stacker Turning and Finishing Machine is used to loosen, remove dust, reduce ink odor, neatly align the edges of the paper at 90 degrees, replace the special pallet, and automatically turn the stack during double-sided printing before or after the print process. This equipment adopts automatic one-button start operation, thereby reducing labor intensity and saving labor, improving production efficiency, and printing quality, and reducing the probability of double-sheet downtime in printing and subsequent processing equipment.



2. Function and configuration

  • Equipped with 4 automatic operation program modes
  • Equipped with 4-channel independent blowing system(2-channel for WPT-125E)
  • Equipped with side gauge automatic moving system

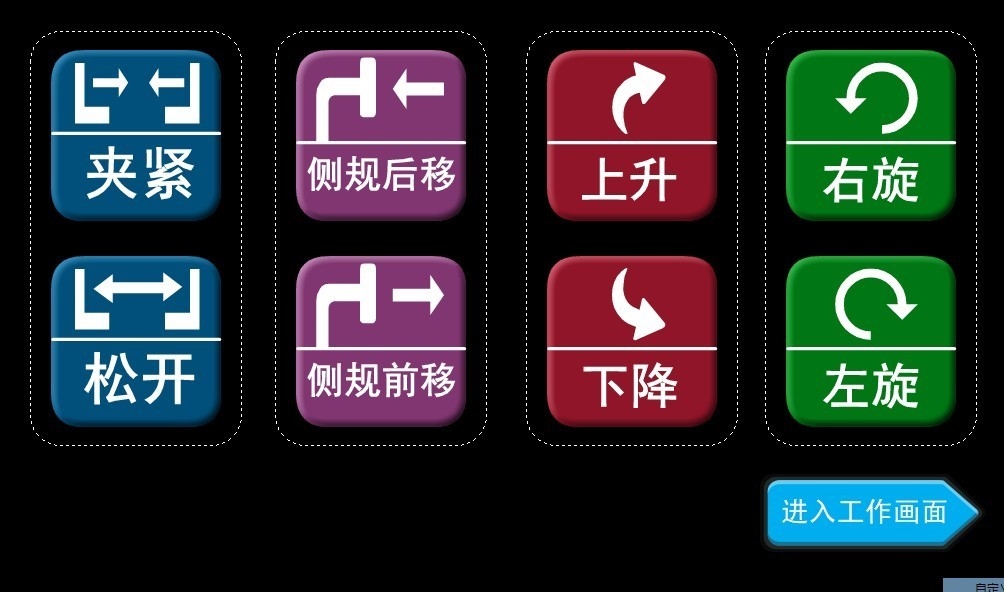

  • Equipped with touch screen testing and parameter debugging system
  • Equipped with pallet centering function
  • Equipped with wireless remote-control system
  • Equipped with operation warning system
  • Equipped with a wind-free coupling system
  • Equipped with vibration stepless frequency modulation system
  • Equipped with stepless pressure regulation system for blowing
  • Equipped with oil pressure free winding coupling system
  • Equipped with digital clamping pressure control system
  • Equipped with stepless speed regulation system for blowing speed
  • Equipped with upper and lower pallet reduction system
  • Equipped with automatic program memory system when power off
  • Equipped with side gauge automatic paper detection system
  • Adopt PCB integrated wiring system

3.Parameter

  WPT-120E WPT-145E WPT-165A WPT-185A
Max. Size 750*1150mm 1450*1100mm 1650*1200mm 1850*1350mm
Min. Size 400*400mm 600*400mm 800*600mm 800*600mm
Max. Height 1500mm (pallet include) 1600mm (pallet include) 1700mm (pallet include) 1600mm (pallet include)
Min. Height 650mm (pallet include) 850mm (pallet include) 950mm (pallet include) 850mm (pallet include)
Nozzle Quan. 2 4 4 5
Flow 1488m³/H 2800m³/H 2800m³/H 2968m³/H
Flow Pressure 40KPA 50KPA 60KPA 60KPA
Power 11KW 22KW 25KW 30KW
Supply AC380V/50HZ AC380V/50HZ AC380V/50HZ AC380V/50HZ
Weight 3000KG 4200KG 5200KG 6300KG

Dust Removal Pile Turner Machine 1850*1350mm Paper Sheet Stacker 1Dust Removal Pile Turner Machine 1850*1350mm Paper Sheet Stacker 2
