Max. Sheet Size (Length X Width): 740 X 1040MM Min. Sheet Size (Length X Width): 340 X 300MM
Sheet Weight: 100 - 600GSM Max. Sheet Output: 10000Piece/Hour
Film Thickness: 10 - 100 MY Max. Film Width: 1020MM
High Light:

10000Pcs/H High Speed Film Laminator

,

740*1040mm Hot Knife Film Laminator Machine

,

Hot Knife Film Laminator Machine 10000Pcs/H

SUNFLOWER SF-102

SF-102 High Level Film Laminator

System for laminating of foils on paper and cardboard sheets with solvent free PUR adhesives



Manufactured in Shanghai by Shenzhen Modern Top Machinery Co., Ltd and Shanghai YOCO Printing Machinery Co., Ltd under license from Steinemann, Switzerland







740*1040mm Hot Knife Film Laminator Machine 10000Pcs/H High Speed 0









1. PRICE





2. SPECIFICATION
Max. sheet size (Length x Width) 740 x 1040 mm

Min. sheet size (Length x Width)

Sheet weight

340 x 300

100 - 600

mm

g/m2

Max. sheet output *) 10000 sph
or max. production speed   80-100
m/min.
Installed power 42 kVA
Power consumption (average value at 400 V, 50 / 60 Hz) 20 - 25 kVA
Film thickness *) 10 - 100 my
Max. film width 1020 mm
Max. film roll diameter 410 mm





3. DESCRIPTION OF EACH SECTION



Pos. 1



SHEET FEEDER SFI 108/145 L



Feeder with table, feeding the sheets in an underlapped manner.



The feeder sucks the sheets from the rear end and is equipped with a pile plate allowing lateral adjustment of the stack. Adjustable lateral blower nozzles creating an air cushion under the sheet and guaranteeing a proper sheet by sheet feeding even at high speeds.

With double sheet control.



740*1040mm Hot Knife Film Laminator Machine 10000Pcs/H High Speed 1



Pos. 2

SHEET ALIGNMENT UNIT



The sheets run continuously underlapped into the sheet alignment unit, adjusted against the front stops to the required underlap for laminating laterally aligned by a mechanical side lay device (operating side) and then accelerated to production speed.



Length of underlapping



0 – 30 mm

740*1040mm Hot Knife Film Laminator Machine 10000Pcs/H High Speed 2



Pos. 3



DOUBLE SHEET CLEANING WITH BRUSH AND CALENDER



  1. Cleaning brush with suction fan and filter

Two counter rotating brushes with integrated dust extraction system and dust filter clean the substrate surface from any loose impurities.



b)Sheet cleaning calendar

The calendar is used for cleaning the surface of the sheet from contamination (anti set-off powder, etc.).

A heated chrome roller picks up particles and simultaneously calendars the sheets by



means of the corresponding pressure. A doctoring system cleans the chrome roller continuously. This results in a lower consumption of adhesive.





Diameter of the chromed calendaring roller 180 mm
Diameter of the counter pressure roller 180 mm
Water heated surface temperature up to 80 º C.
Gap of the rollers infinitely adjustable 0 – 2 mm



740*1040mm Hot Knife Film Laminator Machine 10000Pcs/H High Speed 3



Pos. 4

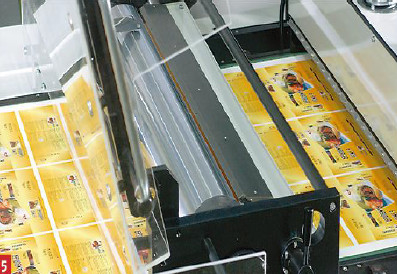

LAMINATING UNIT WITH FILM UNROLLING, GLUE COATING UNIT, LAMINATING CALENDER AND SHEET SEPARATOR



Laminating unit, consisting of:

  • film unreeling system
  • film slitter and rest film reeling
  • automatic adhesive feeding and dosing
  • adhesive application
  • scissor platform for easy access
  • electronically controlled film tension
  • chromed laminating cylinder and rubberised counter pressure roller
  • HOT KNIFE rotating sheet separator

740*1040mm Hot Knife Film Laminator Machine 10000Pcs/H High Speed 4



Automatic adhesive feeding, heating and dosing system

  • glue pumping system for 200 l drum, with heated follower plate
  • heated feed pipe with automatically controlled adhesive valve
  • level control for the adhesive sump



Adhesive coating unit

Permitting the even application of a defined amount of adhesive of 1.8 - 4.0 g/m2 at a working temperature of

70 – 90° C and consisting of:

  • adjustable gap roller
  • speed regulated dosing roller for the desired amount of adhesive
  • transfer roller
  • application roller
  • automatically engaging pressure roller for the adhesive application
  • safety cover with integrated aspiration system for the adhesive sump
  •

740*1040mm Hot Knife Film Laminator Machine 10000Pcs/H High Speed 5

Laminating unit

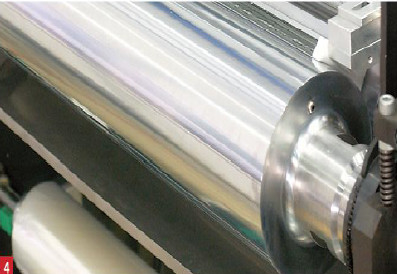

Consisting of chrome plated steel roller and rubbered counter pressure roller, both being motorized independently. The laminating rollers are not heated and guarantee in connection with the provided adjustable gap setting an absolute lay-flat of the substrates independent of their weight. This ensures a high counter pressure and a low lamination pressure, avoiding sheet distortion.

740*1040mm Hot Knife Film Laminator Machine 10000Pcs/H High Speed 6

Sheet separating unit “Hot-Knife”

An electronically controlled rotary “Hot-Knife” situated immediately after the laminating station separates the film sheet by sheet, independent of the film width and machine speed. The accuracy of the separation is within ± 1 mm.

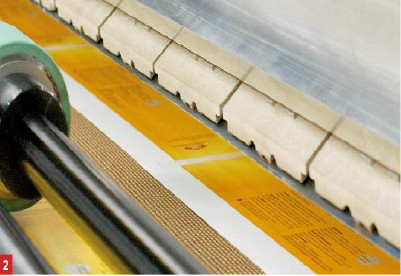

740*1040mm Hot Knife Film Laminator Machine 10000Pcs/H High Speed 7



Pos. 5



SHEET STACKER



For stacking the separated laminated paper / board sheets. The pile formation is controlled by front and rear stops and two side joggers



  • Sheet profiling system for paper sheets below 180 g/m2
  • Pneumatically operated sheet brake
  • Controlled blowing air from the rear and top for fast sheet stacking
  • Pneumatically controlled side joggers for stack formation
  • Pile level monitoring by means of adjustable capacitive proximity switch.



Pos. 6



CONTOL SYSTEM

*** Electrical control system and PLC use Siemens !

Use Siemens latest S7-1200 PLC , paper feeding , main moter , delivery , glue pump use independent PLC programmer.

Through Siemens Profinet networking to achieve decentralized centralized control . Servo and frequency conversion are all controlled by Profinet network.









The machine is equipped with a test value and a programmable monitoring system. The locally mounted supervision units and drive systems are interconnected to the main controller by an Ethernet link. The installed Touch Panel with colour display panel is used for the operation of the complete machine. Additional local operating controls allow where needed precise access to the corresponding machine module.





A clear schematic operation display guides the operator during the whole set-up, production and cleaning process cycle, using colour indications and text windows.





The also included job management system allows the memorizing of the machine settings in case of a recurring job.





On desire the complete machine management system can be retrofitted or supplied on demand.



The simple menu control with colour indication and text windows supports the operator. The error diagnosis is supported by the system.

740*1040mm Hot Knife Film Laminator Machine 10000Pcs/H High Speed 8



Pos. 7

TOUCH PANEL OPERATION



Schematic display of the operating cycle. Settings ad adjustments are made by the simple touch of screen. The status of the machine is indicated in a colour code.



4.PAYMENT TERMS



  • 30% down payment upon confirmation; 70% by T/T or by irrevocable L/C at sight before shipment



5.DELIVERY TIME



  • 3 months after receipt of down payment



6. INSTALLATION



  • Installation of the machine is free of charge
  • Customer is responsible for the expenses of round-trip air tickets, hotel accommodation (3 star hotel), meals and local transportation for engineers. If a







translator is required, it will be on customer’s account.



7.WARRANTY



  • There is 1 year warranty (from the date of installation) on all parts, mechanical and electrical, due to defect in manufacturing, except for consumable parts such as belts, rubber sucker, etc and if “accident” or mal-operation has occurred.

740*1040mm Hot Knife Film Laminator Machine 10000Pcs/H High Speed 9

8.REMARKS



  • All the above prices and conditions are subject to our final confirmation
  • This quotation is valid for 30 days only
