Home > products > Automatic Flute Laminator >
Middle Speed Auto Flute Laminator Full Automatic Flute Laminating Machine

Middle Speed Auto Flute Laminator Full Automatic Flute Laminating Machine

Full Automatic Flute Laminating Machine

Middle Speed Auto Flute Laminator

High Accuracy Auto Flute Laminator

Place of Origin:

DONGGUAN

Brand Name:

DINGXING/DINGYI

Contact Us
Request A Quote
Middle Speed Auto Flute Laminator Full Automatic Flute Laminating Machine
Middle Speed Auto Flute Laminator Full Automatic Flute Laminating Machine Middle Speed Auto Flute Laminator Full Automatic Flute Laminating Machine Middle Speed Auto Flute Laminator Full Automatic Flute Laminating Machine Middle Speed Auto Flute Laminator Full Automatic Flute Laminating Machine Middle Speed Auto Flute Laminator Full Automatic Flute Laminating Machine
Product Details
Type:
Laminating Machine
Applicable Industries:
Manufacturing Plant, Paper Laminating Industry, Paper Packing Machine
Showroom Location:
Canada, United States, Poland
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty Of Core Components:
2 Years
Core Components:
PLC, Engine, Bearing, Gearbox, Motor
Condition:
New
Application:
Commodity
Packaging Type:
Cartons, Paper
Packaging Material:
Paper
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
Customized
Dimension(L*W*H):
11985*2420*2500mm
Weight:
6500 KG
Warranty:
1 Year
Key Selling Points:
High-accuracy
Machine Type:
Auto Flute Laminator
Speed:
Middle Speed
After Warranty Service:
Online Support, Field Maintenance And Repair Service
After-sales Service Provided:
Engineers Available To Service Machinery Overseas, Free Spare Parts
Min.Sheet Size:
350*350mm
Max.Sheet Size:
1650*1650*
Max. Speed:
0-100sheets/min
Certificate:
CE ISO
Business Type:
Manufacturer Direct Sales
Company History:
More Than 40 Years
Marketing Type:
Hot Product 2021
Port:
Qingdao
Highlight:

Full Automatic Flute Laminating Machine

,

Middle Speed Auto Flute Laminator

,

High Accuracy Auto Flute Laminator

Payment & Shipping Terms
Price
$45,000.00 - $55,000.00/sets
Packaging Details
standard packing
Supply Ability
10 Set/Sets per Month
RELATED PRODUCTS
Good price Middle Speed Auto Flute Laminator Full Automatic Flute Laminating Machine online Video

Middle Speed Auto Flute Laminator Full Automatic Flute Laminating Machine

Get Best Price
Good price Single Three Layers Automatic Flute Laminator Middle Speed DF-1650EL online Video

Single Three Layers Automatic Flute Laminator Middle Speed DF-1650EL

Get Best Price
Good price 1450mm*1450mm Automatic Flute Laminator Rowan Series DF-1450L online Video

1450mm*1450mm Automatic Flute Laminator Rowan Series DF-1450L

Get Best Price
Good price Corrugated Boards Automatic Flute Laminator Machine 100 Sheets /Min DF-1450S online Video

Corrugated Boards Automatic Flute Laminator Machine 100 Sheets /Min DF-1450S

Get Best Price
Contact Us
+86 18678943457
tony@dingxingmachinery.com
86-515-85571076
Contact Now
Product Description

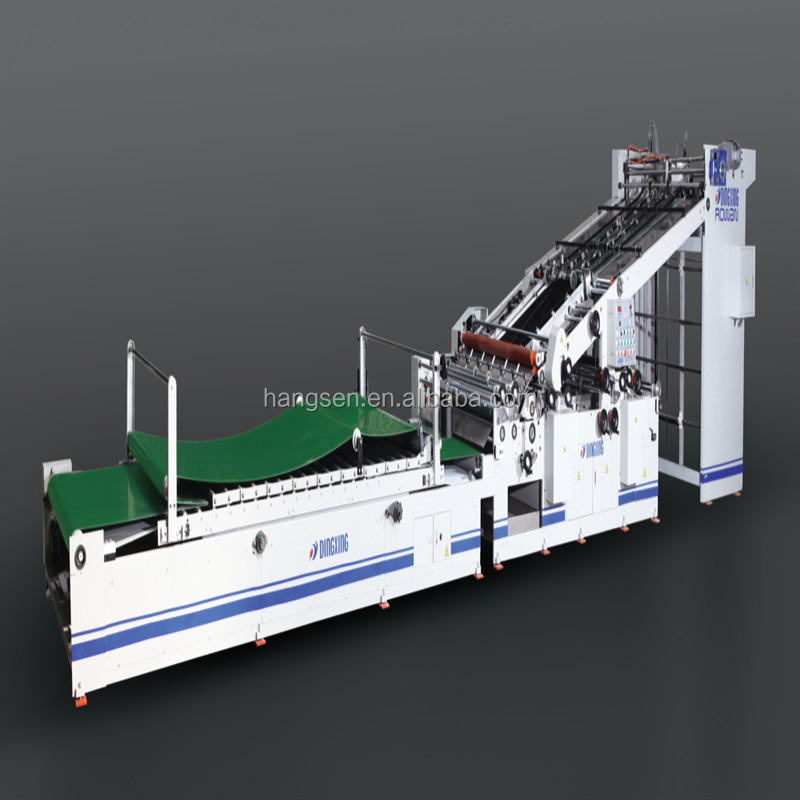

Auto Flute Laminator , Full Automatic Flute Laminating Machine



• This Rowan Series Automatic Flute Laminator is a fortified model adopting several patented mechanisms with a great improvement on

mechanical system, driven system and aligning system by qualified engineers over years of experiences.

• This Rowan Series Automatic Flute Laminator is applied in broad scope of papers, bottom sheet from cardboards,grey

paperboards, single layer/three/five layers corrugated boards which can be laminated easily and accurately.

• Fine selection of parts with high accuracy, high tensile and high endurance ensures stable running and long operational life so as to

produce a great deal of profits for the customers.

• Improvement on driven system is to cut down maintenance cost and this new system lowers the noise and ensure easy and

convenient operation



Model

DF-1450S

DF-1450L

DF-1650L

DF-1650EL

Max.Sheet Size(L*W, mm)

1450*1100

1450*1400

1650*1400

1650*1650

Min.Sheet Size(L*W, mm)

350*350

450*450

450*450

450*450

Thickness

Litho

120~800gsm

Substrate

300~800gsm (Up to 10mm Thick)

A~N Single Layer/ Three/Five Layers/7Layers Corrugated Boards, Grey Paperboards and Boards

Accuracy

±1.5mm(Subject to Paper Quality and Specifications)

Speed

0~100 sheets/Min(Subject to Paper Quality and Specifications)

Power

AC~380V/

50HZ/14KW

AC~380V/

50HZ/18KW

AC~380V/

50HZ/19KW

AC~380V/

50HZ/19KW

Dimension: L*W*H(M)

11985*2420*2500

14280*2420*2500

14280*2670*2500

15005*2670*2500

Weight(KG)

6500

7000

7200

7500



Middle Speed Auto Flute Laminator Full Automatic Flute Laminating Machine 0Middle Speed Auto Flute Laminator Full Automatic Flute Laminating Machine 1Middle Speed Auto Flute Laminator Full Automatic Flute Laminating Machine 2Middle Speed Auto Flute Laminator Full Automatic Flute Laminating Machine 3

Middle Speed Auto Flute Laminator Full Automatic Flute Laminating Machine 4













Tags：

Automatic Flute Laminator Rowan Series

Middle Speed Automatic Flute Laminator

Automatic Flute Laminator Machine
