Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450

Certification
China Dongtai Dingxing Machinery Technology Co., Ltd certification
China Dongtai Dingxing Machinery Technology Co., Ltd certification
I'm Online Chat Now

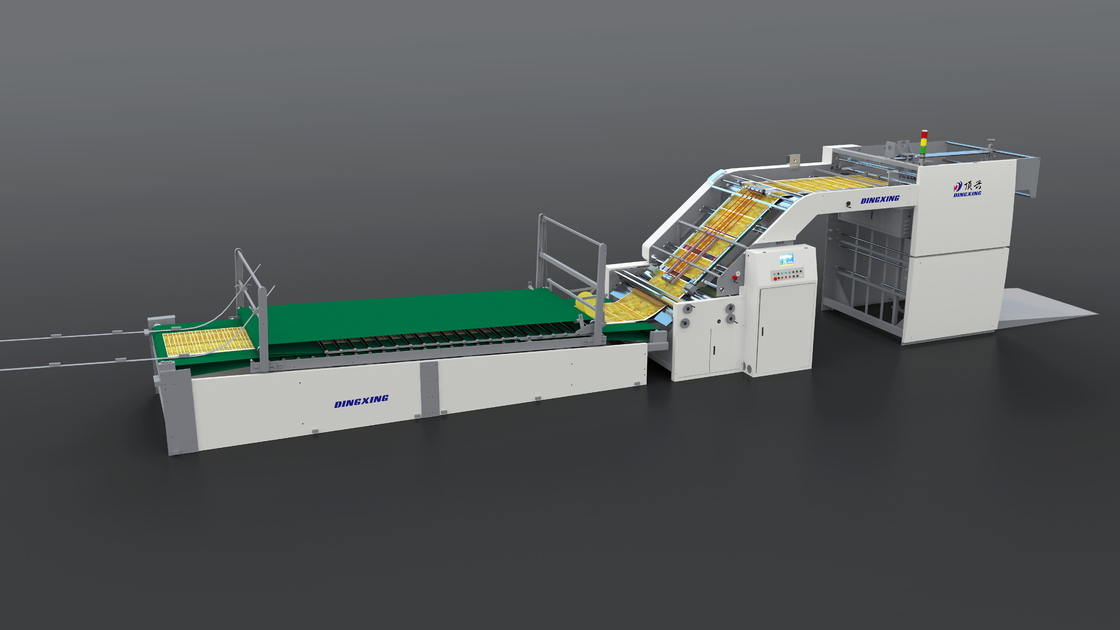

Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450

Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450
Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450

Large Image :  Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450

Product Details:
Place of Origin: China
Brand Name: DINGXING/DINGYI
Certification: ISO/CE
Model Number: DX-1450
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 50000-70000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 30DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 15SET/MONTH

Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450

Description
Max. Speed: 12000 Piece/Hour Top Sheet GSM: 120-600
Bottom Sheet Thickness: 0.5mm-10mm Lamination Accuracy: ±1mm
High Light:

1450mm*1450mm High Speed Flute Laminator

,

corrugated High Speed Flute Laminator

,

1450mm*1450mm corrugated laminator machine

DX-1450 High Speed Flute Laminator


 DX-1450DX-1650DX-1650XL
Max. Size:1450mm*1450mm1650mm*1450mm1650mm*1650mm
Min. Size:400mm*450mm400mm*450mm400mm*450mm
Top Sheet GSM:120gsm600g/120gsm—600g/㎡120gsm—600g/㎡
Bottom Sheet Thickness:0.5-10mm0.5-10mm0.5-10mm
Max. Speed:30~150m/min30~150m/min30~150m/min
Lamination Accuracy:±1.5mm±1.5mm±1.5mm
Total Weight:7000kgs7500kgs7500kgs
Machine Size:14056mm*2314mm*2560mm14056mm*2514mm*2560mm16525mm*2514mm*2560mm
Machine Power:AC380/50HZ/26KWAC380/50HZ/28KWAC380/50HZ/28KW
Suitable PaperSingle face(flute A-G), Multi-ply(3-7) corrugated cardboard, grey paperboard, paper board over 300 GSM.


Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 0



Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 1

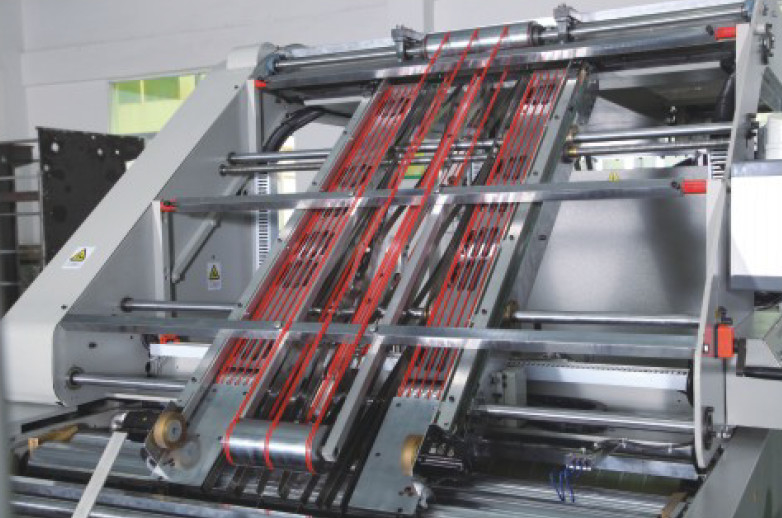

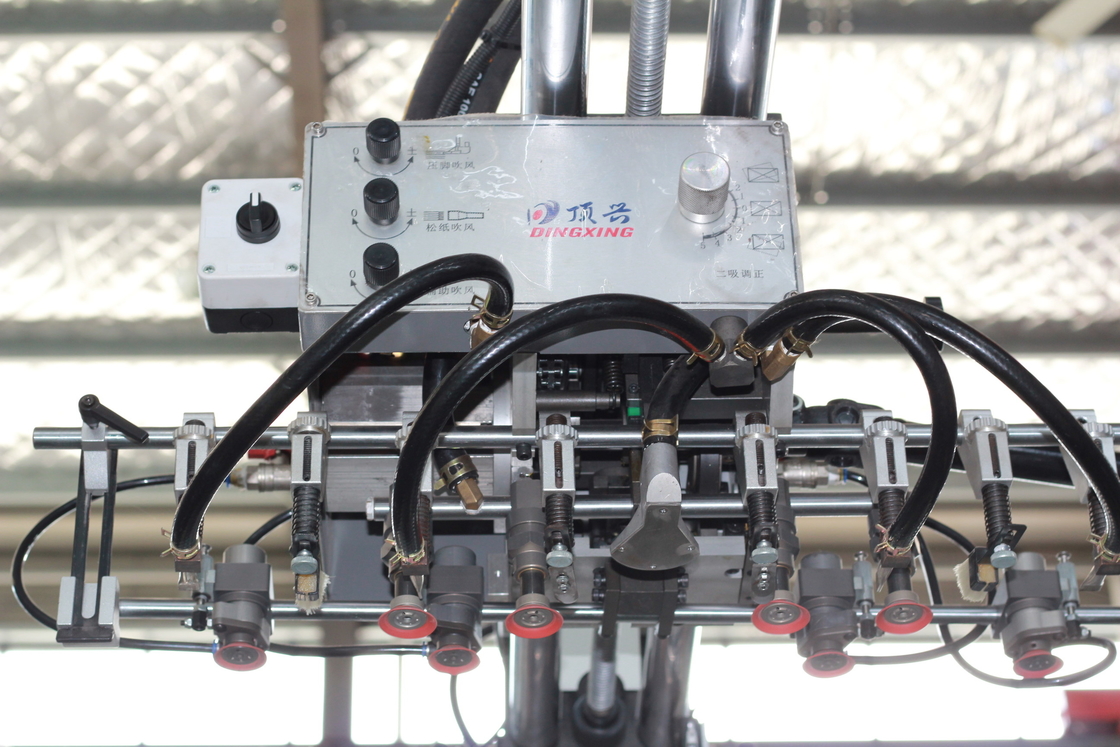

• Servo shaftless back feeder, make the top sheet feeding paper overlap, fast and efficiency.


Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 2

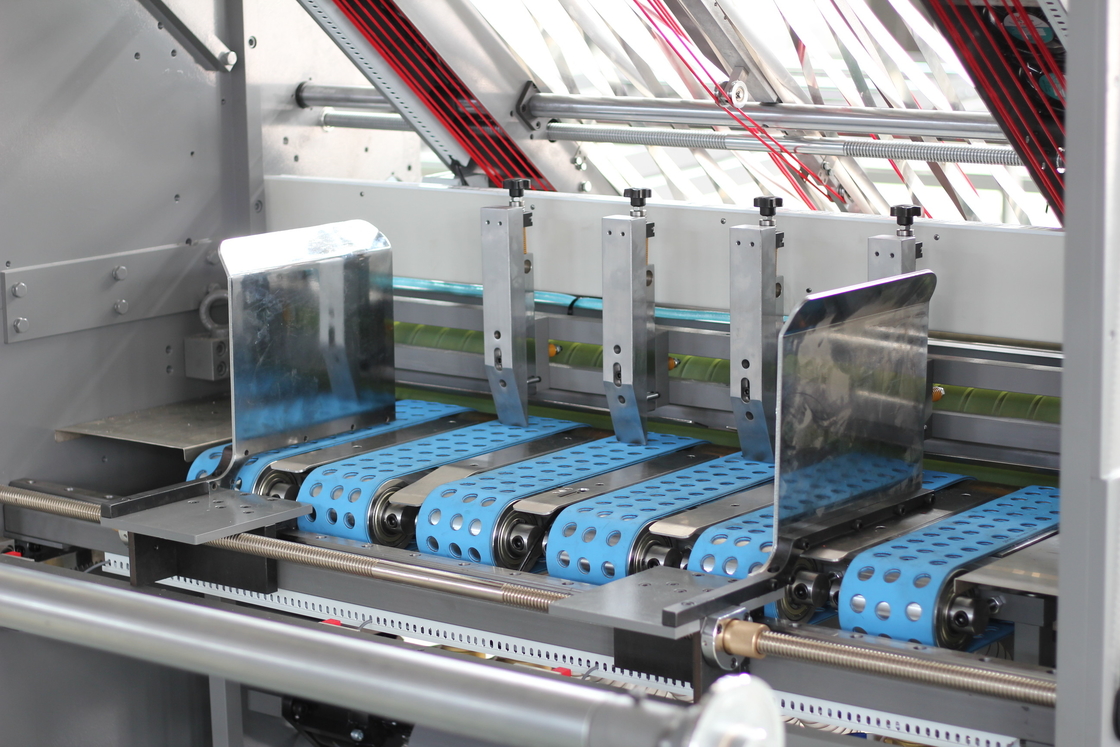

• Dual servo bottom sheet feeder ensures smooth feeding of warping and multi-ply paperboards.


Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 3

• Computerized high-speed lamination at max.speed of 12,000 sheets per hour(Paper length:600mm)
• Feeder Base: Low E-type piling table ensures direct paper feeding by pallet cart. Railway truck pre-loader is optional.

Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 4

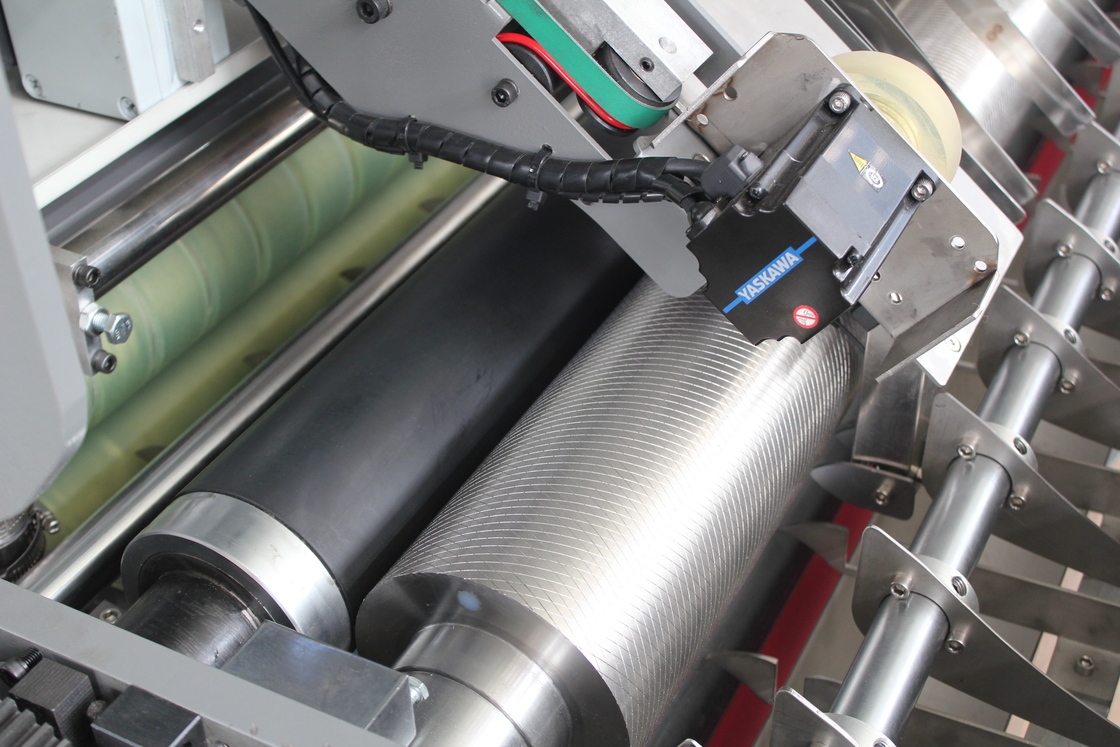

• Gluing System:High-precision gluing rollers, glue side stopper, auto glue level controller, no overflow at high speed and glue recirculation system.


Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 5

• Compensation Aligning System: multiple sensors detect relative position of bottom paper,while servo motors ensure dependent upper paper delivery compensation to guarantee precise aligning of two sheets.


Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 6Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 7

• Electrical Control System: Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition,irregularities and job record. CE certified.



 DX-1450DX-1650DX-1650XL
Max. Size:1450mm*1450mm1650mm*1450mm1650mm*1650mm
Min. Size:400mm*450mm400mm*450mm400mm*450mm
Top Sheet GSM:120gsm600g/120gsm—600g/㎡120gsm—600g/㎡
Bottom Sheet Thickness:0.5-10mm0.5-10mm0.5-10mm
Max. Speed:30~150m/min30~150m/min30~150m/min
Lamination Accuracy:±1.5mm±1.5mm±1.5mm
Total Weight:7000kgs7500kgs7500kgs
Machine Size:14056mm*2314mm*2560mm14056mm*2514mm*2560mm16525mm*2514mm*2560mm
Machine Power:AC380/50HZ/26KWAC380/50HZ/28KWAC380/50HZ/28KW
Suitable PaperSingle face(flute A-G), Multi-ply(3-7) corrugated cardboard, grey paperboard, paper board over 300 GSM.
