Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450

Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450

1450mm*1450mm High Speed Flute Laminator

corrugated High Speed Flute Laminator

1450mm*1450mm corrugated laminator machine

Place of Origin:

China

Brand Name:

DINGXING/DINGYI

Certification:

ISO/CE

Model Number:

DX-1450

Contact Us
Request A Quote
Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450
Product Details
Max. Speed:
12000 Piece/Hour
Top Sheet GSM:
120-600
Bottom Sheet Thickness:
0.5mm-10mm
Lamination Accuracy:
±1mm
Highlight:

1450mm*1450mm High Speed Flute Laminator

,

corrugated High Speed Flute Laminator

,

1450mm*1450mm corrugated laminator machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 50000-70000/SET
Packaging Details
Meteorological anti-rust film and steel bottom bracket
Delivery Time
30DAYS
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
15SET/MONTH
RELATED PRODUCTS
Good price Automatic Corrugated Cardboard Flute Laminator CE Certified online Video

Automatic Corrugated Cardboard Flute Laminator CE Certified

Get Best Price
Good price Cardboard Automatic High Speed Flute Laminator Inline With Electric Driven online Video

Cardboard Automatic High Speed Flute Laminator Inline With Electric Driven

Get Best Price
Good price 7 Layers Corrugate High Speed Flute Laminator 150m/Min DX-1450 online Video

7 Layers Corrugate High Speed Flute Laminator 150m/Min DX-1450

Get Best Price
Good price 120-600gsm Top Sheet Automatic 5 Ply Flute Laminator ISO CE online Video

120-600gsm Top Sheet Automatic 5 Ply Flute Laminator ISO CE

Get Best Price
Contact Us
+86 18678943457
tony@dingxingmachinery.com
86-515-85571076
Contact Now
Product Description

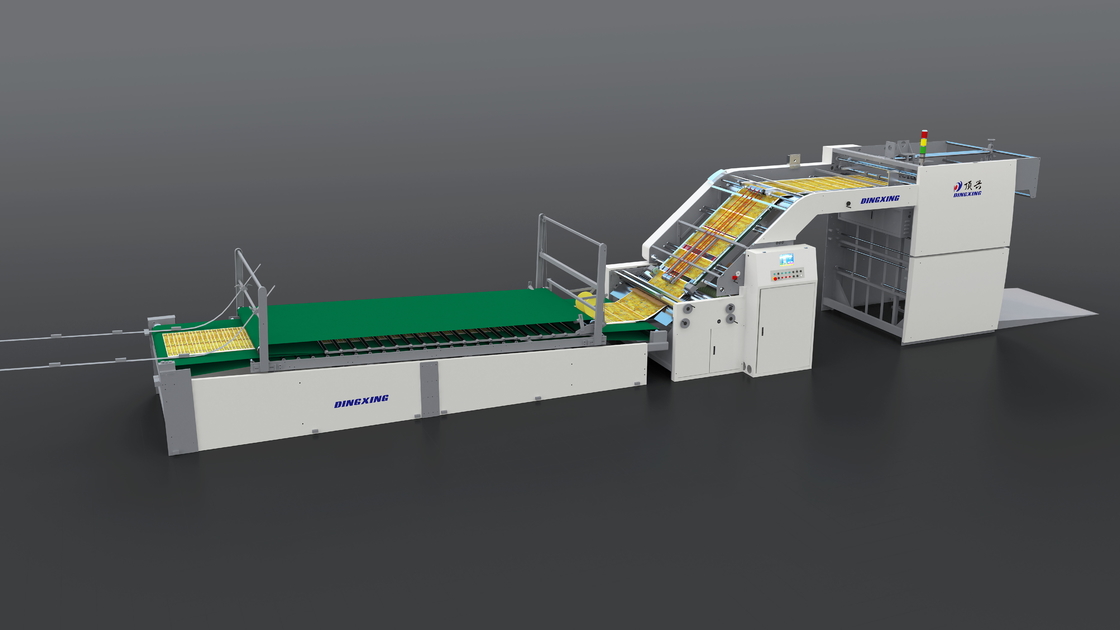

DX-1450 High Speed Flute Laminator


 DX-1450DX-1650DX-1650XL
Max. Size:1450mm*1450mm1650mm*1450mm1650mm*1650mm
Min. Size:400mm*450mm400mm*450mm400mm*450mm
Top Sheet GSM:120gsm—600g/㎡120gsm—600g/㎡120gsm—600g/㎡
Bottom Sheet Thickness:0.5-10mm0.5-10mm0.5-10mm
Max. Speed:30~150m/min30~150m/min30~150m/min
Lamination Accuracy:±1.5mm±1.5mm±1.5mm
Total Weight:7000kgs7500kgs7500kgs
Machine Size:14056mm*2314mm*2560mm14056mm*2514mm*2560mm16525mm*2514mm*2560mm
Machine Power:AC380/50HZ/26KWAC380/50HZ/28KWAC380/50HZ/28KW
Suitable PaperSingle face(flute A-G), Multi-ply(3-7) corrugated cardboard, grey paperboard, paper board over 300 GSM.


Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 0



Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 1


• Servo shaftless back feeder, make the top sheet feeding paper overlap, fast and efficiency.


Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 2

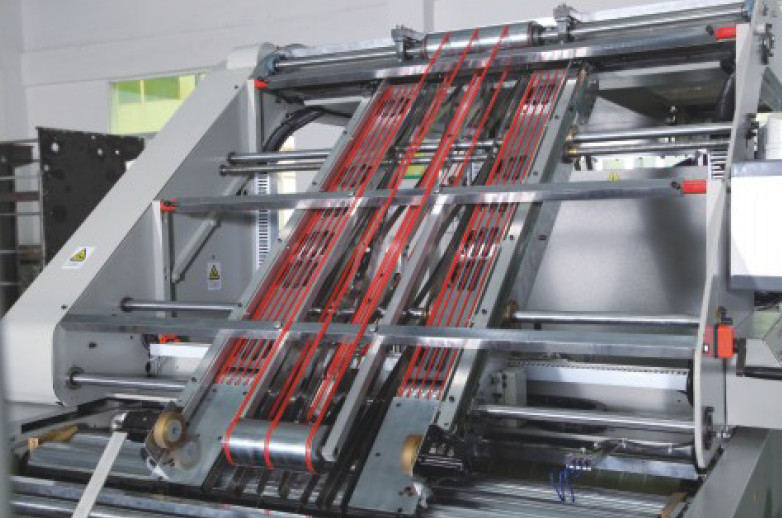

• Dual servo bottom sheet feeder ensures smooth feeding of warping and multi-ply paperboards.


Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 3

• Computerized high-speed lamination at max.speed of 12,000 sheets per hour(Paper length:600mm)
• Feeder Base: Low E-type piling table ensures direct paper feeding by pallet cart. Railway truck pre-loader is optional.

Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 4

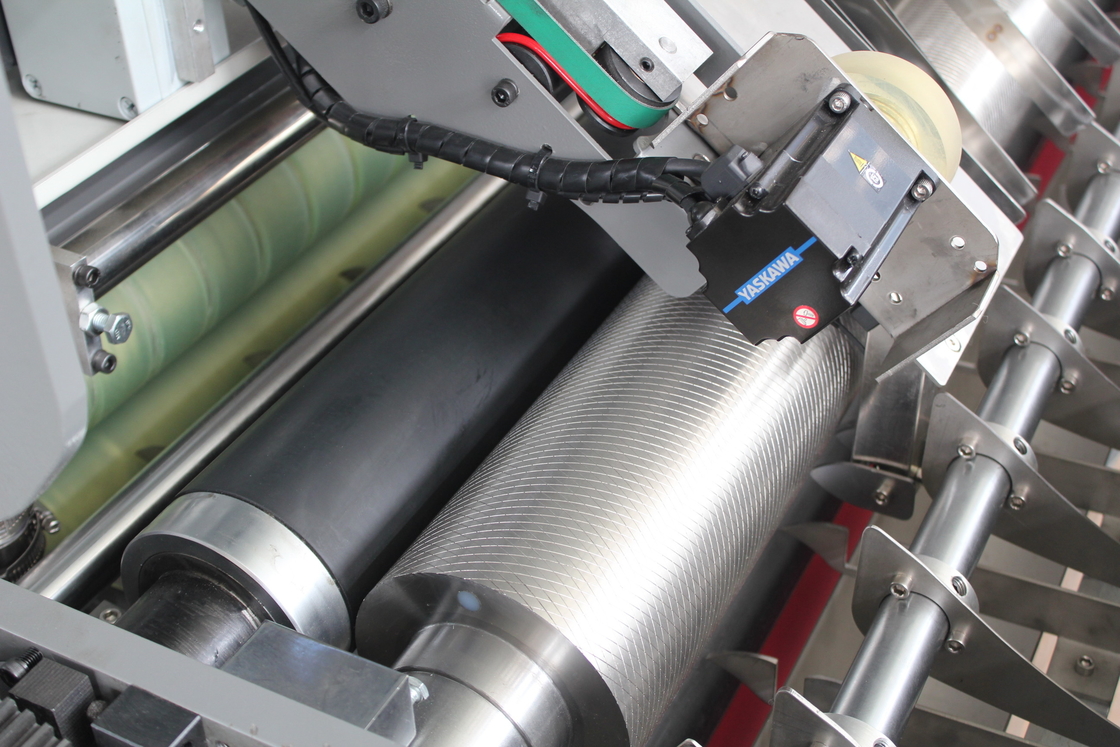

• Gluing System:High-precision gluing rollers, glue side stopper, auto glue level controller, no overflow at high speed and glue recirculation system.


Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 5

• Compensation Aligning System: multiple sensors detect relative position of bottom paper,while servo motors ensure dependent upper paper delivery compensation to guarantee precise aligning of two sheets.


Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 6Corrugated 1450mm*1450mm High Speed Flute Laminator Machine DX-1450 7

• Electrical Control System: Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition,irregularities and job record. CE certified.



 DX-1450DX-1650DX-1650XL
Max. Size:1450mm*1450mm1650mm*1450mm1650mm*1650mm
Min. Size:400mm*450mm400mm*450mm400mm*450mm
Top Sheet GSM:120gsm—600g/㎡120gsm—600g/㎡120gsm—600g/㎡
Bottom Sheet Thickness:0.5-10mm0.5-10mm0.5-10mm
Max. Speed:30~150m/min30~150m/min30~150m/min
Lamination Accuracy:±1.5mm±1.5mm±1.5mm
Total Weight:7000kgs7500kgs7500kgs
Machine Size:14056mm*2314mm*2560mm14056mm*2514mm*2560mm16525mm*2514mm*2560mm
Machine Power:AC380/50HZ/26KWAC380/50HZ/28KWAC380/50HZ/28KW
Suitable PaperSingle face(flute A-G), Multi-ply(3-7) corrugated cardboard, grey paperboard, paper board over 300 GSM.
