120-600gsm Top Sheet Auto Flute Laminator Corrugated Laminator Machine CE

120-600gsm Top Sheet Auto Flute Laminator Corrugated Laminator Machine CE

600gsm Top Sheet Auto Flute Laminator

600gsm Top Sheet Corrugated Laminator Machine

Flute Corrugated Laminator Machine CE

Place of Origin:

China

Brand Name:

DINGXING/DINGYI

Certification:

ISO/CE

Model Number:

DX-1650

Contact Us
Request A Quote
120-600gsm Top Sheet Auto Flute Laminator Corrugated Laminator Machine CE
120-600gsm Top Sheet Auto Flute Laminator Corrugated Laminator Machine CE 120-600gsm Top Sheet Auto Flute Laminator Corrugated Laminator Machine CE 120-600gsm Top Sheet Auto Flute Laminator Corrugated Laminator Machine CE 120-600gsm Top Sheet Auto Flute Laminator Corrugated Laminator Machine CE
Product Details
Max. Speed:
12000 Piece/Hour
Top Sheet GSM:
120-600
Bottom Sheet Thickness:
0.5mm-10mm
Lamination Accuracy:
±1mm
Highlight:

600gsm Top Sheet Auto Flute Laminator

,

600gsm Top Sheet Corrugated Laminator Machine

,

Flute Corrugated Laminator Machine CE

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 50000-70000/SET
Packaging Details
Meteorological anti-rust film and steel bottom bracket
Delivery Time
30DAYS
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
30 SET/MONTH
RELATED PRODUCTS
Good price Automatic Corrugated Cardboard Flute Laminator CE Certified online Video

Automatic Corrugated Cardboard Flute Laminator CE Certified

Get Best Price
Good price Cardboard Automatic High Speed Flute Laminator Inline With Electric Driven online Video

Cardboard Automatic High Speed Flute Laminator Inline With Electric Driven

Get Best Price
Good price 7 Layers Corrugate High Speed Flute Laminator 150m/Min DX-1450 online Video

7 Layers Corrugate High Speed Flute Laminator 150m/Min DX-1450

Get Best Price
Good price 120-600gsm Top Sheet Automatic 5 Ply Flute Laminator ISO CE online Video

120-600gsm Top Sheet Automatic 5 Ply Flute Laminator ISO CE

Get Best Price
Contact Us
+86 18678943457
tony@dingxingmachinery.com
86-515-85571076
Contact Now
Product Description

DX-1650 High Speed Flute Laminator



  DX-1450 DX-1650 DX-1650XL
Max. Size: 1450mm*1450mm 1650mm*1450mm 1650mm*1650mm
Min. Size: 400mm*450mm 400mm*450mm 400mm*450mm
Top Sheet GSM: 120gsm—600g/㎡ 120gsm—600g/㎡ 120gsm—600g/㎡
Bottom Sheet Thickness: 0.5-10mm 0.5-10mm 0.5-10mm
Max. Speed: 30~150m/min 30~150m/min 30~150m/min
Lamination Accuracy: ±1.5mm ±1.5mm ±1.5mm
Total Weight: 7000kgs 7500kgs 7500kgs
Machine Size: 14056mm*2314mm*2560mm 14056mm*2514mm*2560mm 16525mm*2514mm*2560mm
Machine Power: AC380/50HZ/26KW AC380/50HZ/28KW AC380/50HZ/28KW
Suitable Paper Single face(flute A-G), Multi-ply(3-7) corrugated cardboard, grey paperboard, paper board over 300 GSM.





120-600gsm Top Sheet Auto Flute Laminator Corrugated Laminator Machine CE 0



120-600gsm Top Sheet Auto Flute Laminator Corrugated Laminator Machine CE 1

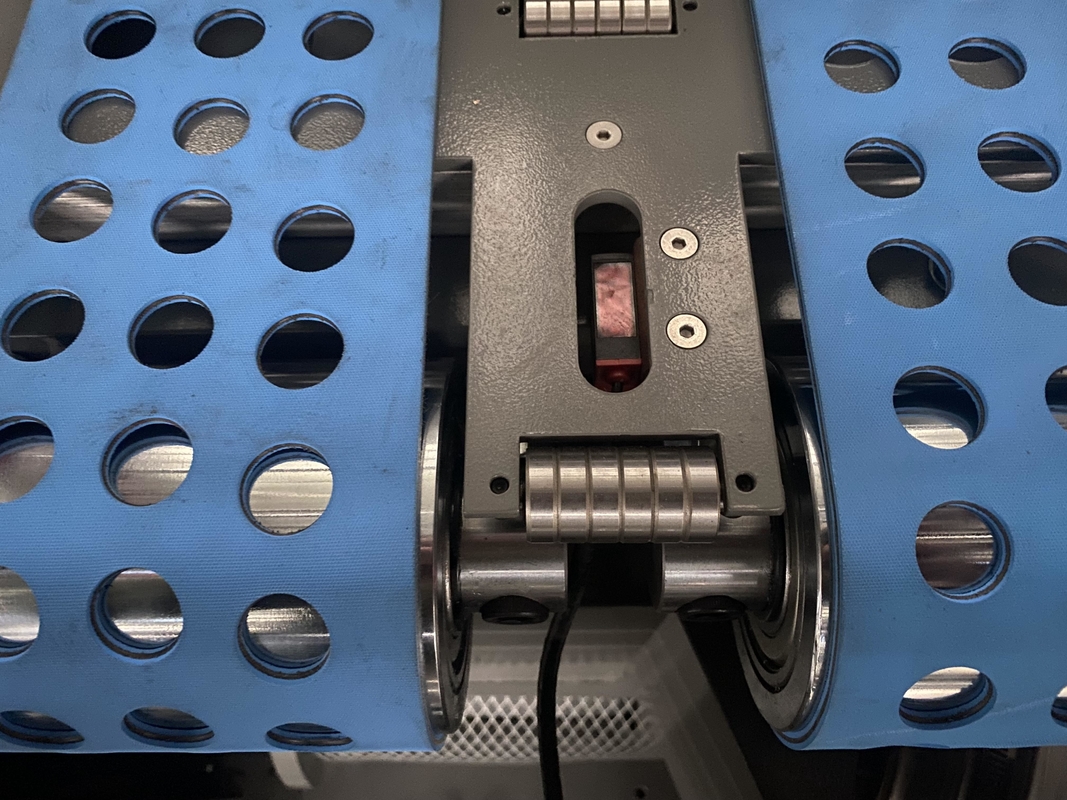

• Servo shaftless back feeder, make the top sheet feeding paper overlap, fast and efficiency.



120-600gsm Top Sheet Auto Flute Laminator Corrugated Laminator Machine CE 2

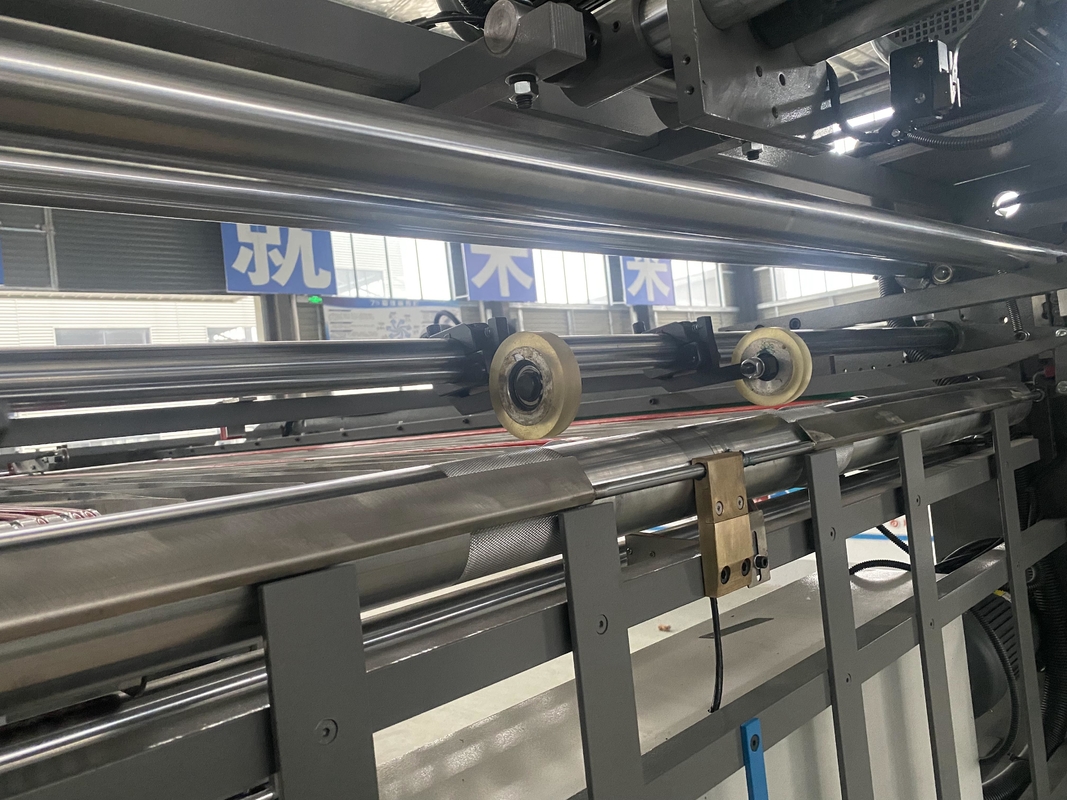

• Dual servo bottom sheet feeder ensures smooth feeding of warping and multi-ply paperboards.



120-600gsm Top Sheet Auto Flute Laminator Corrugated Laminator Machine CE 3

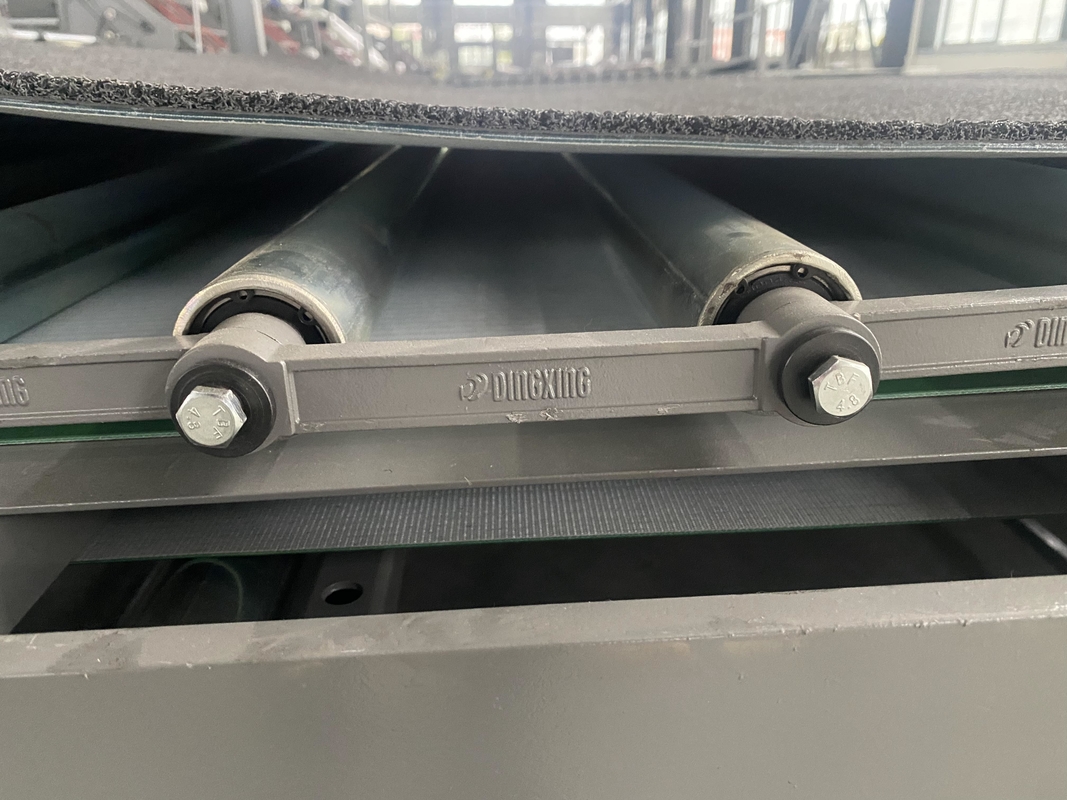

• Computerized high-speed lamination at max.speed of 12,000 sheets per hour(Paper length:600mm)

• Feeder Base: Low E-type piling table ensures direct paper feeding by pallet cart. Railway truck pre-loader is optional.

120-600gsm Top Sheet Auto Flute Laminator Corrugated Laminator Machine CE 4

• Gluing System:High-precision gluing rollers, glue side stopper, auto glue level controller, no overflow at high speed and glue recirculation system.



120-600gsm Top Sheet Auto Flute Laminator Corrugated Laminator Machine CE 5



• Compensation Aligning System: multiple sensors detect relative position of bottom paper,while servo motors ensure dependent upper paper delivery compensation to guarantee precise aligning of two sheets.



120-600gsm Top Sheet Auto Flute Laminator Corrugated Laminator Machine CE 6120-600gsm Top Sheet Auto Flute Laminator Corrugated Laminator Machine CE 7



• Electrical Control System: Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition,irregularities and job record. CE certified.
