1650mmx1650mm Flute Lamination Pasting Machine PLC Control

1650mmx1650mm Flute Lamination Pasting Machine PLC Control
1650mmx1650mm Flute Lamination Pasting Machine PLC Control 1650mmx1650mm Flute Lamination Pasting Machine PLC Control 1650mmx1650mm Flute Lamination Pasting Machine PLC Control 1650mmx1650mm Flute Lamination Pasting Machine PLC Control

Large Image :  1650mmx1650mm Flute Lamination Pasting Machine PLC Control

Product Details:
Place of Origin: CHINA
Brand Name: DINGXING/DINGYI
Certification: ISO/CE
Model Number: DX-1650XL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 30000-80000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 SET/MONTH

1650mmx1650mm Flute Lamination Pasting Machine PLC Control

Description
Color: Customizable Function: Two Sheet Lamination
Part Brand: International Professional Leading Brand Main Market: Europe And North America
High Light:

1650mmx1650mm flute lamination pasting machine

,

Flute Lamination Pasting Machine PLC Control

,

PLC Flute Lamination Machine

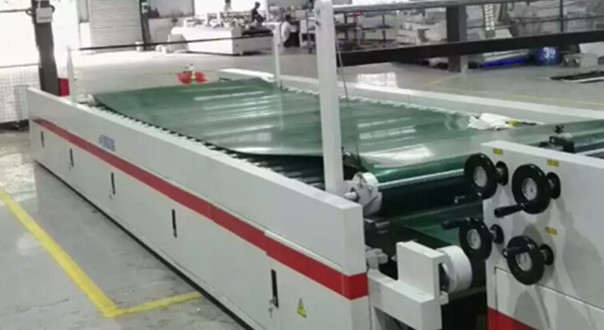

DX-1650XL Front Edge High Lamination Accuracy Flute Laminator



Leading-edge L .itho Feeder ensures stable running at high speed and no extra adjustment for different job. . Servo shaftless back feeder, make the top sheet feeding paper overlap. fast and efficiency. " Dual servo bottom sheet feeder ensures smooth feeding of warping and multi ply paperboards. Computerized high-speed lamination at max. speed of 12,000 sheets per hour(Paper length:600mm)



Feeder Base: Low E-type piling table ensures direct paper feeding by pallet cart. Railway truck pre-loader is optional. . Gluing System:High- precision gluing rollers, glue side stopper. auto glue level controller. no overflow at high speed and glue recirculation system. . Compensation Aligning System: multiple sensors detect relative position of bottom paper .while servo motors ensure dependent upper paperdelivery compensation to guarantee precise aligning of two sheets. . Electrical Control System: Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition,irregularities and job record. CE certified.



Model/Modelo

DX-1450



DX-1650





DX-1650XL



DX-2050 DX-2100

Max. SheetSize(WXL)

Tamaño máximo (WXL)



1450mmx1450mm

(57’x57’)



1650mmx1450mm

(65’x57’)



1650mmx1650mm

(65’x65’)

2050mmx1650mm

(817’x65’)

2100mmx2100mm

(83x83’)

Min. Sheet Size(WXL)

Tamaño mínimo de tabla

400mmx400mm

(16’x16’)

400mmx400mm

(16’x16’)

400mmx400mm

(16’x16’)

550mmx450mm

(21’x18’)

550mm*450mm

(22x18’)

Thickness of Upper Paper

Grosor del papel



120~600gsm





Thickness of Bottom Paper

Grosor de fondo

0.5-10mm

A-N Flute single layer/3 layers/5 layers /7 layers Corrugate board, Grey Board and Board

Flauta A-N de una capa / 3 capas / 5 capas / 7 capas Tablero corrugado, tablero gris y tablero



Max. Speed

Velocidad máxima

150m/min (Subject to board quality and specification)

Laminating Precision

Precisión de laminado

±1.5mm

±1.5mm ±1.5mm ±1.5mm ±2mm

Power

Poder

200V/-380V3-25HP

200V/-380V3-25HP

200V/-380V3-25HP

200V/-380V3-25HP 200V/-380V3-25HP



1650mmx1650mm Flute Lamination Pasting Machine PLC Control 0
