Product: DX-1650XL High-speed Litho Laminator

(Synchronous Servo-driven)



Front Edge High Speed Flute Laminator 150m/Min Litho Lamination Machine 0



DX-1650XL Front Edge High Speed Flute Laminator







Technical Data:



Model DX-1650XL
Max. Sheet Size (W*L) 1650*1650mm
Min. Sheet Size (W*L) 500*450mm
Thickness Top sheet 120~600gsm
Bottom sheet 0.5-10mm
Laminating Accuracy ±1mm (subject to paper cutting precision)
Max. Speed

150 m/min (Subject to board quality and specification)

e.g., around 10,000 sheets/hour at length 600mm

Power AC380/50HZ/29KW
Dimension L*W*H 16727mmx2514mmx2180mm



**Specifications are subject to change without notice



  1. Laminating tolerance. If paper quality and cut is good and precise enough, and at the speed of 9000 sheets/hour, the laminator can reach as well as 1.0mm tolerance or less.
  2. The knurled stainless-steel gluing roller can guarantee the glue consumption normally ranging from 25-30gsm subject to operator’s skills and types of corrugated paper.







Litho Sheet Feeding Section
  • Front-top leading-edge suction feeder ensures stable running at high speed.
  • No extra adjustment for different sheets format, easy to operate.
  • E-type paper holding plate for quick paper changeover.
  • Pre-loading device by rail equipped as standard.
  • Easy for pulling thin paper to lowest 100 gsm paper.





Front Edge High Speed Flute Laminator 150m/Min Litho Lamination Machine 1





Bottom sheet feeding section
  • Equipped with two Yaskawa servo motors, one is for accurate paper feeding timing, another is for controlling intermittent air suction for better bigger size paper feeding.
  • Big air blower and separate belt holders ensure smooth feeding of 2ply,3ply,4ply, 5ply and cardboard, no vibration of belt holder.

Front Edge High Speed Flute Laminator 150m/Min Litho Lamination Machine 2



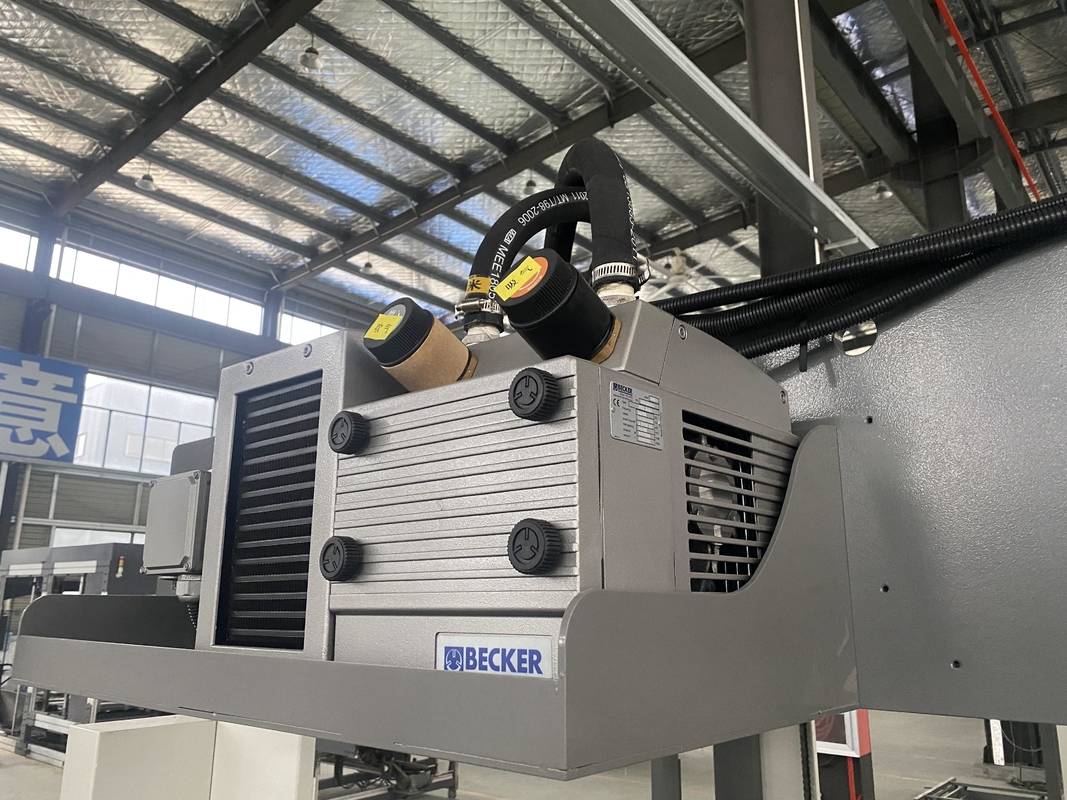

Front Edge High Speed Flute Laminator 150m/Min Litho Lamination Machine 3



Servo motor assembly to ensure accurate and strengthened suction





Front Edge High Speed Flute Laminator 150m/Min Litho Lamination Machine 4



Gluing section
  • High precise coating stainless steel roller mechanism assures even glue applied.
  • Special mechanism ensures paper stripping off the gluing roller, easy to clean, dismantle and adjust
  • Three sensors to control the glue volume level automatically.
  • Side Glue stopper ensures no overflow at high speed and glue re-circulation at high speed.

Front Edge High Speed Flute Laminator 150m/Min Litho Lamination Machine 5







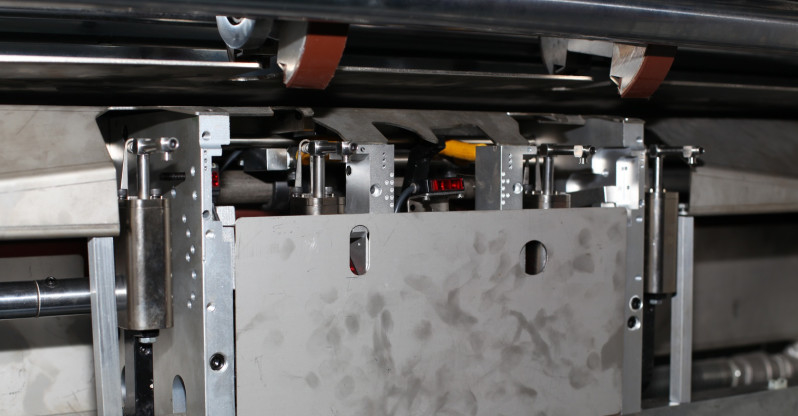

Register section
  • Multi sensors to monitor feeding position of the bottom sheets, the upper two servo motors (Japanese Yaskawa brand) adjust the top sheets synchronously to make accurate register during lamination.

Front Edge High Speed Flute Laminator 150m/Min Litho Lamination Machine 6



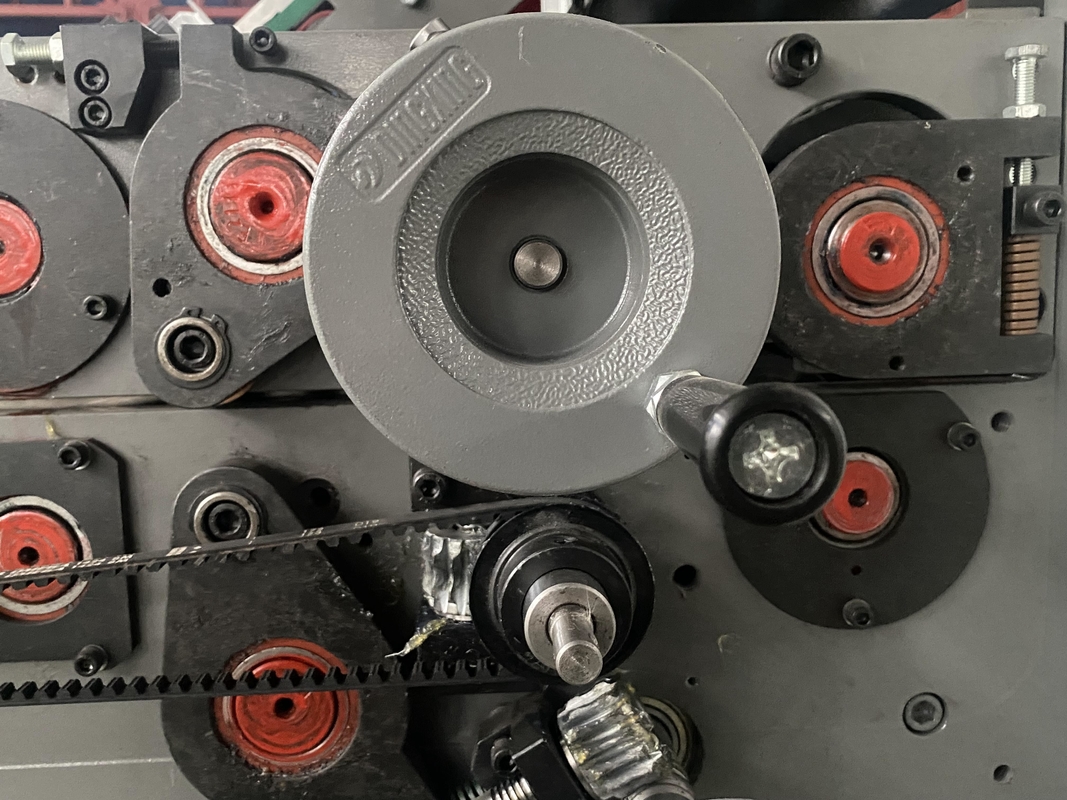

Transmission system

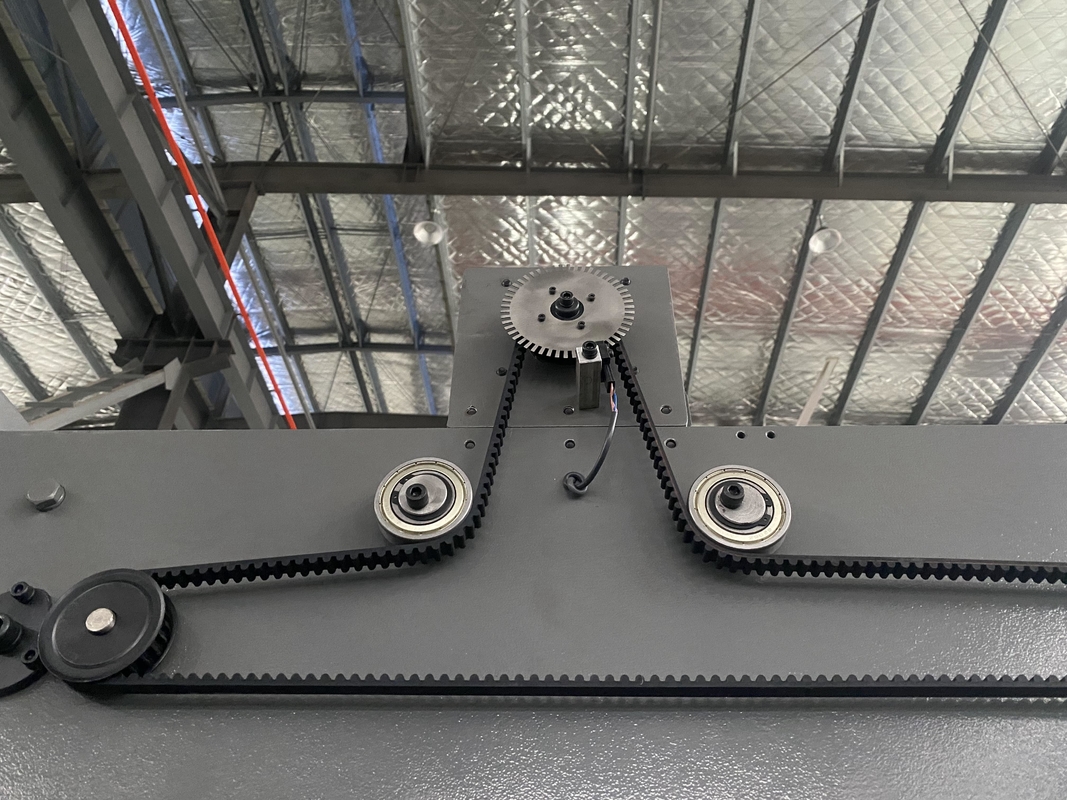

Multi Power transmission evenly distributed by gears and belts combination, maintenance free, low noise, high efficiency

  • Main gears for gluing rollers are made from Taiwan company.

Front Edge High Speed Flute Laminator 150m/Min Litho Lamination Machine 7

Pressing conveyor
  • The laminated sheets collected by press conveyor as standard for perfect bonding.
  • The conveyor speed is adjustable by one motor as per the machine speed.

Front Edge High Speed Flute Laminator 150m/Min Litho Lamination Machine 8





Touch Screen

  • Man-machine interface (Proface) with PLC touch-screen control, warning light indicator, automatic monitoring of production condition, irregularities and job record.

Front Edge High Speed Flute Laminator 150m/Min Litho Lamination Machine 9



Control Cabinet



Front Edge High Speed Flute Laminator 150m/Min Litho Lamination Machine 10
