Grey Board Laminating Machine 16KW For Price Tag Puzzles

Grey Board Laminating Machine 16KW For Price Tag Puzzles
Grey Board Laminating Machine 16KW For Price Tag Puzzles Grey Board Laminating Machine 16KW For Price Tag Puzzles Grey Board Laminating Machine 16KW For Price Tag Puzzles Grey Board Laminating Machine 16KW For Price Tag Puzzles

Large Image :  Grey Board Laminating Machine 16KW For Price Tag Puzzles

Product Details:
Place of Origin: CHINA
Brand Name: DINGYI
Certification: ISO/CE
Model Number: DX-600
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 20000-50000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 45 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 3 SET/MONTH

Grey Board Laminating Machine 16KW For Price Tag Puzzles

Description
Color: Customizable Function: Two Cardboard Lamination
Max. Sheet Size: 600Wx600L Accuracy: ±0.5mm
High Light:

Board Laminating Machine For Price Tag

,

Price Tag Puzzles Board Laminating Machine

,

Grey Board Laminating Machine 16KW

DX-600 Price Tag Puzzle Grey Board Laminator



Specifications

Model DX-600
Max. Sheet Size(mm) 600Wx600L
Min. Sheet Size(mm) 297Wx210L
Thickness of Upper Paper 100-800g/m²
Thickness of Bottom Paper 180-1800g/m²
Max. Speed 105pcs/min (Subject to Paper Quality)
Laminating Precision ±0.5mm(Standard smooth paperboard)
Total Weight 6000kg

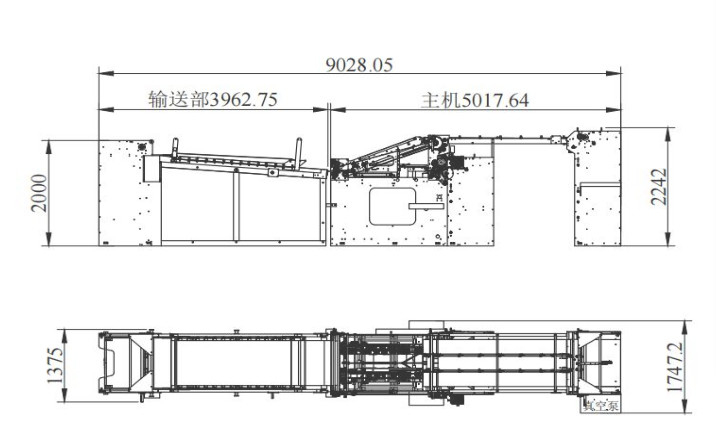

Dimensions 9M
Operation Space 3M×12M
Power AC380V/50HZ/16KW


**Specifications are subject to change without notice



Function

Lamination of two paperboards at precision of ±0.5mm, this equipment is capable to laminate and glue combination of thin paper, art paper, cardboard, gray cardboard or thick paper board together to increase the material strength and thickness, or being laminated to have special effect. After shearing or mold cutting, the laminated products can be made to be hang-tag, display card, packing box, material pad, hard cover book, photo album, sun shield or inner lining of piece goods, product demonstration book, puzzle, toys, handbag or decoration materials.







Litho Sheet Feeding Section
  • Front-top leading-edge suction feeder ensures stable running at high speed.
  • No extra adjustment for different sheets format, easy to operate.
  • E-type paper holding plate for quick paper changeover.
  • Pre-loading device by rail equipped as standard.
  • Easy for pulling thin paper to lowest 100 gsm paper.
Bottom Sheet Feeding Section
  • Front-top leading-edge suction feeder ensures stable running at high speed.
  • No extra adjustment for different sheets format, easy to operate.Grey Board Laminating Machine 16KW For Price Tag Puzzles 0

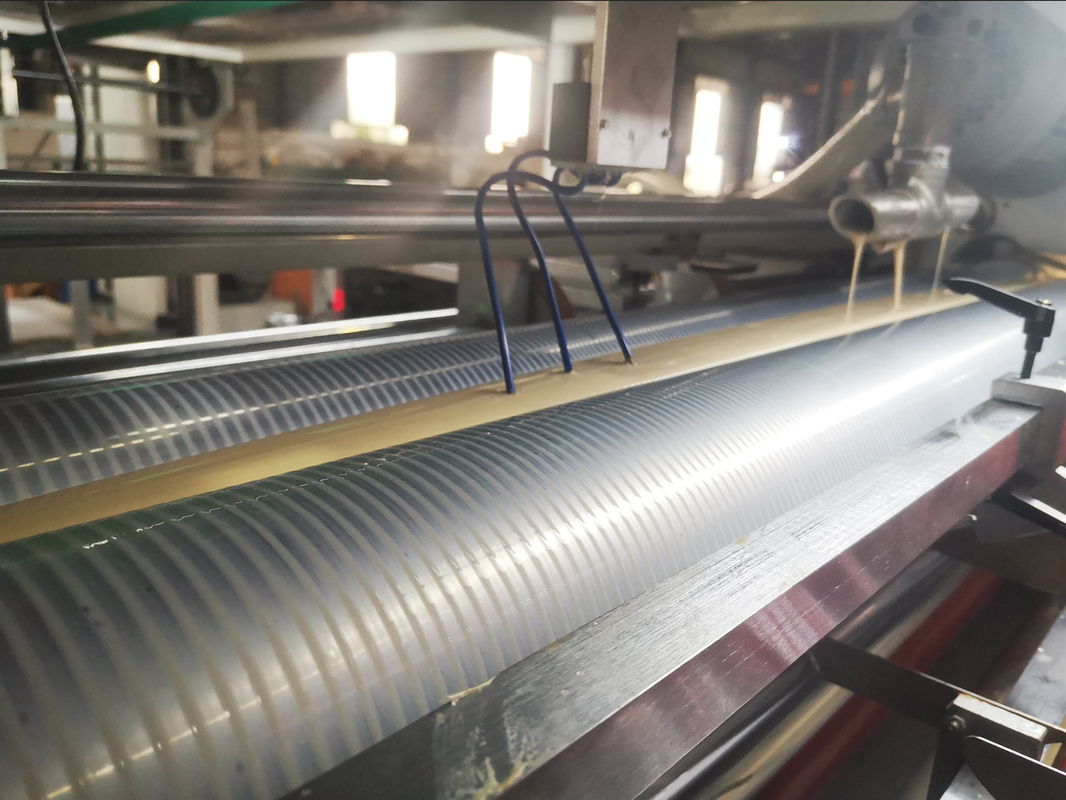

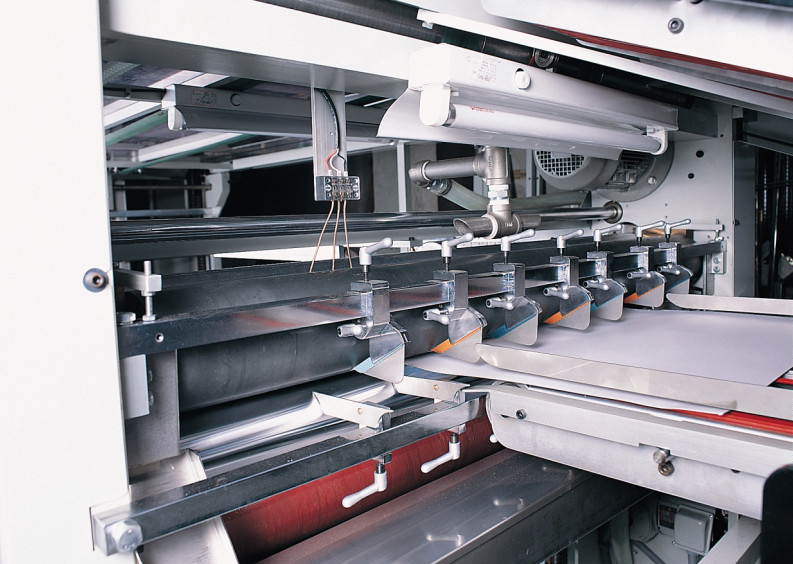

Glue Coating Device

  • Precision of upper glue roller and glue adjusting roller is less than 0.01mm.
  • Minimum coating thickness can be adjusted to 0.02mm.
  • Three sensors to control the glue level automatically.
  • No overflow with delicate Side Glue Stopper at high speed and glue re-circulation system.
  • Paper releaser: releasing the paper from coating roller, also for convenience in dismantle, cleaning and calibration of the coating roller.





Grey Board Laminating Machine 16KW For Price Tag Puzzles 1

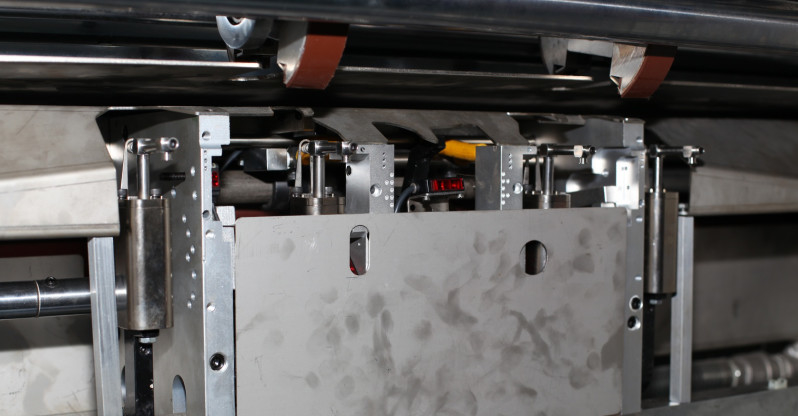

Aligning System:

  • Unique dynamic aligning with synchronized laminating.
  • Front Stopper and Side Stopper to guarantee laminating precision.
  • Lamination of two paperboards at precision of ±0.5mm or higher with good quality paper.

Grey Board Laminating Machine 16KW For Price Tag Puzzles 2Grey Board Laminating Machine 16KW For Price Tag Puzzles 3

Grey Board Laminating Machine 16KW For Price Tag Puzzles 4



Transmission system:

  • The state-of -art planet transmission system allows even distribution in power transmission. The whole equipment is in timer belt transmission, free of servicing, low noise and high efficiency.

Grey Board Laminating Machine 16KW For Price Tag Puzzles 5



Pressing Conveyor:

  • Motorized adjustment of revolving speed and press length allows easy paper size switching.
  • Press laminated paper in multiple layers, and speed up the revolution with the paper pressed individually.
  • Extra rollers apply repeated heavy pressure to make the finished sheets smoother and more perfect.

Grey Board Laminating Machine 16KW For Price Tag Puzzles 6



Automatic Stacker:

  • Vibrant-loose Collecting Mechanism to loosen laminated sheets neatly and ensures smooth collection of paper.
  • E-type stacking plate and high-speed elevator rapidly and conveniently pull out the finished products.

Grey Board Laminating Machine 16KW For Price Tag Puzzles 7



Electric Control System:

  • Three sets of dialogue window: including Man-machine Interface, Voice Alarm and Lamp Indicating PLC.
  • Detect operation condition, abnormal condition, maintenance and working record automatically.
  • Selected electric control elements from Siemens, Becker, Yaskawa and Taiwan.Grey Board Laminating Machine 16KW For Price Tag Puzzles 8
  • Grey Board Laminating Machine 16KW For Price Tag Puzzles 9



  • Brand of Main Parts:

    Part Name Brand/Origin
    Main motor Siemens
    Vacuum Pump Becker
    Feeder Taiwan
    Bearing Germany/Japan
    Belt Japan/Germany
    Electric Element France/Japan/Germany
    Chain Germany/Taiwan
    Converter Japan
    PLC Yaskawa, Japan
    Man-machine Interface Taiwan

Grey Board Laminating Machine 16KW For Price Tag Puzzles 10
