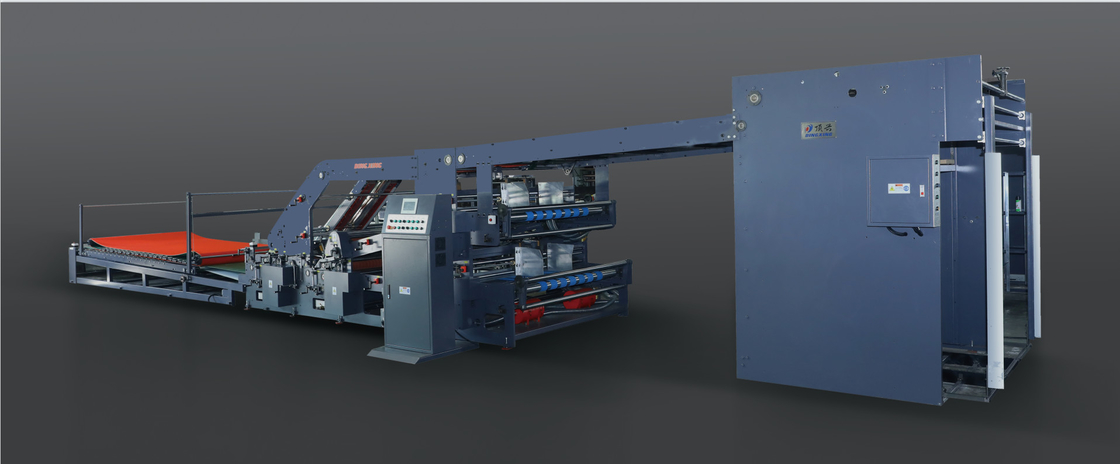

1650*1400mm Cardboards Corrugated Laminator Machine Servo Motor Alignment

Description
Max. Speed: 5000 Piece/Hour Top Sheet GSM: 120-600
Max. Size: 1650*1400 Lamination Accuracy: ±1.5mm
High Light:

1650*1400mm Corrugated Laminator Machine

,

1650*1400mm corrugated laminating machine

,

Cardboards Corrugated Laminator Machine

DW-1650 2+2+1 Automatic Flute Laminator





Specifications:

Note: Specifications are subject to change without notice.

Model DW-1650
Max.Sheet Size(L*W, mm) 1650*1450
Min.Sheet Size(L*W, mm) 450*450
Thickness Litho 120~800gsm
Middle 300-800gsm(single flute)
Substrate

300~800gsm (Up to 10mm Thick)

A~N Single Layer/ 3/5Layers Corrugated Boards, Grey Paperboards and Cardboards

Accuracy Within ± 2 mm(Subject to Paper Quality and Specifications)
Speed 0 -5000sheets/hour(Subject to Paper Quality and Specifications)
Power AC~380V(30HP)
Dimension: L*W*H(MM) 1700*2650*2600
Weight(KG) 9800

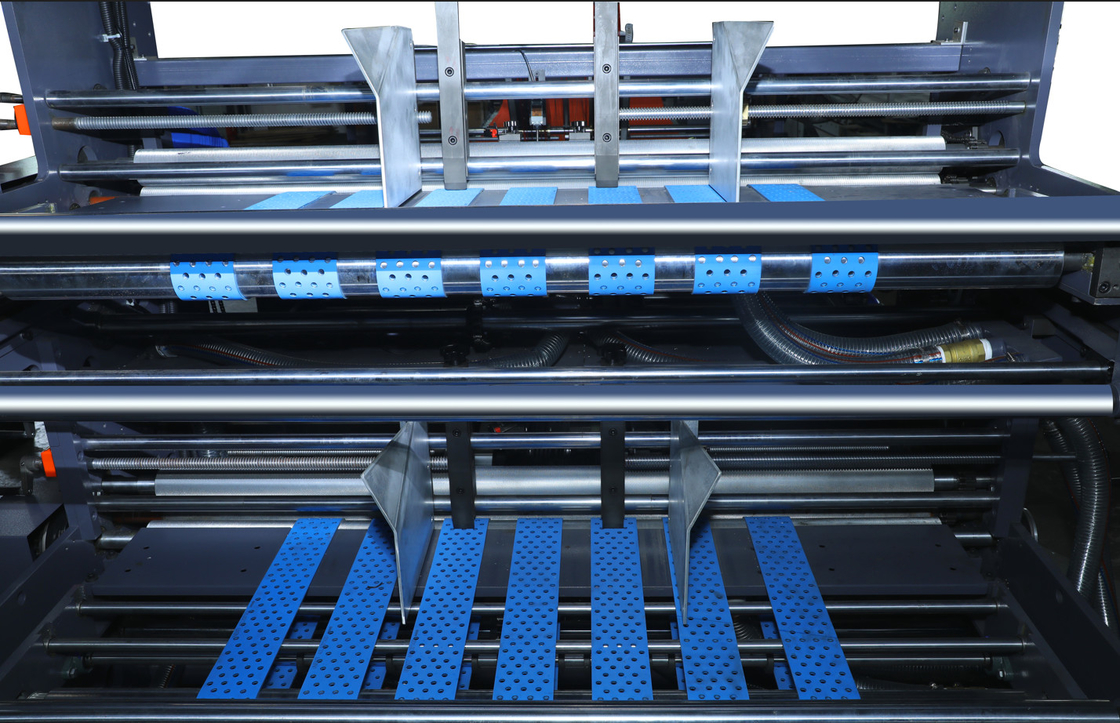

Litho Paper Feeder

  • Equipped with 4 paper raising caps and 4 feeding caps to ensure smooth feeding.
  • Paper pressing base with air blower and two sides sub-blower for wider paper.

1650*1400mm Cardboards Corrugated Laminator Machine Servo Motor Alignment 0

Gluing System

The adjustable glue roller system applies evenly on the corrugated board. The special chrome plated glue roller saves glue consumption with three sensors to prevent overflow. This recycles gluing system which refills the glue in the slot at both gluing rollers by electric glue controller. The gluing system prevents glue wasting for better performance of lamination.





Belt-Driven System

Cut down maintenance cost and lower the noise

1650*1400mm Cardboards Corrugated Laminator Machine Servo Motor Alignment 1



Substrate Two Paper Feeders

The corrugated paper is attached and goes through the Spring plates by suction belt and make the corrugated board delivery smoothly. Newly designed assistance belt helps to do the perfect suction belt feeding jobs, especially for 3/5 /7 ply.



1650*1400mm Cardboards Corrugated Laminator Machine Servo Motor Alignment 2





1650*1400mm Cardboards Corrugated Laminator Machine Servo Motor Alignment 3

Servo motor Alignment and Timing System

  • Servo motor alignment for top paper and bottom 4ply corrugated boards. Multi sensors to monitor feeding position of the bottom sheets, the upper two servo motors (Japanese Yaskawa brand) adjust the top sheets synchronously to make accurate register during lamination.
  • Synchronous Register Belts. Bottom two corrugated boards are registered and aligned y synchronous pushing claw that makes accurate registration. There are buffer designed before pushing claw striking the paper that prevent paper edge from damage. The micro adjuster and bearing holding system allows accurate lamination of two substrate papers conveyed.

1650*1400mm Cardboards Corrugated Laminator Machine Servo Motor Alignment 4







Pressing Conveyor

Integrated with upper and lower pressing conveyor, all boards are pressed and dried naturally until they are laminated tightly without air bubbles.



1650*1400mm Cardboards Corrugated Laminator Machine Servo Motor Alignment 5



Side Frames

Newly designed machine with strengthened frames ensures stability even at highest speed and long machine life. Independent roller wheels are easy to dismantle to ensure quick replacement.

Solid and durable precision casting hand wheels.



Electrical Control System

1. Operator Panel shows all operation buttons and functions. Auxiliary Operator Panels are located in the Feeder and Pressing Conveyor. The Counter calculates laminating sheets through photocell control and Fixed Speed Device ensures fixed running speed.

2. Electrical driven systems are Schneider and Fotek & Anly from Taiwan.



Sources of Main Parts



Name Place of Origin or Materials
  1. Main motor
Taiwan(Joint venture)
2.Lifting motor Taiwan(Joint venture)
3. Decelerator Taiwan(Joint venture)
4.Glue Pump Taiwan(Joint venture)
5.Clutch & Brake Nikka from Taiwan
6.Electrical drive Schneider from France, Fotek,Anly from Taiwan
7.Belts Japan
9. Air Blower Taiwan(Joint venture)
10.Air pump Becker
11.Servo motor Yaskawa


1650*1400mm Cardboards Corrugated Laminator Machine Servo Motor Alignment 6
