5 Layer Paperboard Flute Laminating Machine 5000 Piece / Hour

5 Layer Paperboard Flute Laminating Machine 5000 Piece / Hour
5 Layer Paperboard Flute Laminating Machine 5000 Piece / Hour 5 Layer Paperboard Flute Laminating Machine 5000 Piece / Hour 5 Layer Paperboard Flute Laminating Machine 5000 Piece / Hour 5 Layer Paperboard Flute Laminating Machine 5000 Piece / Hour

Large Image :  5 Layer Paperboard Flute Laminating Machine 5000 Piece / Hour

Product Details:
Place of Origin: China
Brand Name: DINGYI
Certification: ISO/CE
Model Number: DW-1650
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 30000-80000/SET

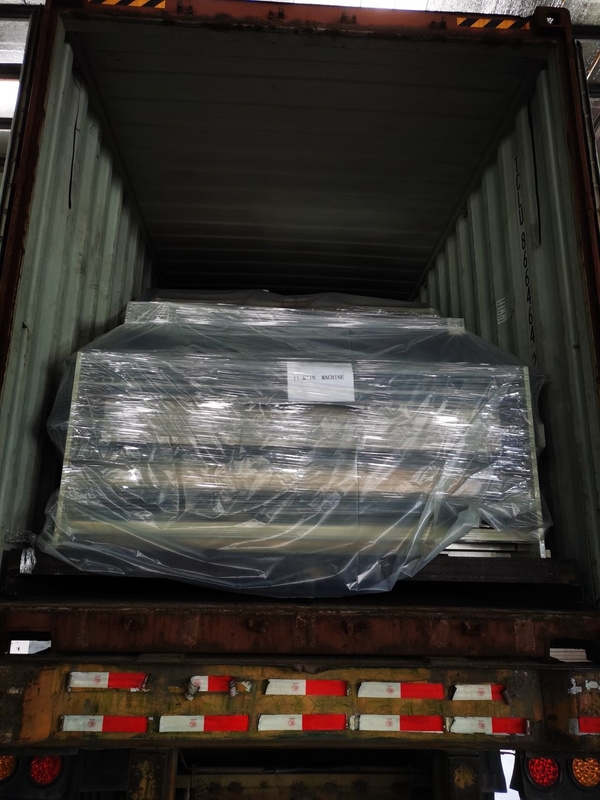

Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 60 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 3 SET/MONTH

5 Layer Paperboard Flute Laminating Machine 5000 Piece / Hour

Description
Max. Speed: 5000 Piece/Hour Max. Working Size: 1650*1400
Bottom Sheet GSM: A/C/B/E/F Flute Lamination Accuracy: ±1.5mm
High Light:

Flute Laminating Machine 5000 Piece / Hour

,

5 Layer paperboard laminating machine

,

5 Layer Flute Laminating Machine

DW-1650 Two Flute Combation Laminator





Automatic 5ply Flute Laminator is fortified model adopting two bottom feeders and one top feeder, especially suitable for laminatingtwo single flutes into 4 ply corrugated boards, also acting as a regular flute laminator to transfer thick and large -sized boards smoothly. Operation easily



Automatic Sply Flute Laminator is applied in broad scope of papers, bottom sheet from single layer/three/five layers corrugatedboards which can
be laminated easily and accurately, and total boards from 2 bottom feeders are maximum 8 layers . Servo aligning unit between top and bottom paper to guarantee better lamination precision.



Specifications:

Note: Specifications are subject to change without notice.

Model DW-1650
Max.Sheet Size(L*W, mm) 1650*1450
Min.Sheet Size(L*W, mm) 450*450
Thickness Litho 120~800gsm
Middle 300-800gsm(single flute)
Substrate

300~800gsm (Up to 10mm Thick)

A~N Single Layer/ 3/5Layers Corrugated Boards, Grey Paperboards and Cardboards

Accuracy Within ±2 mm(Subject to Paper Quality and Specifications)
Speed 0 -5000sheets/hour(Subject to Paper Quality and Specifications)
Power AC~380V(30HP)
Dimension: L*W*H(MM) 1700*2650*2600
Weight(KG) 9800
