High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410

High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410
High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410 High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410 High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410 High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410

Large Image :  High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410

Product Details:
Place of Origin: CHINA
Brand Name: DINGYI
Certification: ISO/CE
Model Number: DX-1410
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 20000-50000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 SET/MONTH

High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410

Description
Color: Customizable Function: Two Cardboard Lamination
Part Brand: International Professional Leading Brand Accuracy: ±0.5mm
High Light:

High Speed art paper Cardboard Laminator

,

Art Paper Cardboard High Speed Laminator

,

Cardboard Laminator 105 pcs/Min

DX-1410 High Speed Cardbaord Laminating Machine



Specifications

Model DX-1410
Max. Sheet Size(mm) 1410Wx1000L
Min. Sheet Size(mm) 450Wx450L
Thickness of Upper Paper 100-800g/m²
Thickness of Bottom Paper 180-1800g/m²
Max. Speed 105pcs/min (Subject to Paper Quality)
Laminating Precision ±0.5mm(Standard smooth paperboard)
Total Weight 7500kg
Dimensions 8900mm*2770mm*2180mm
Operation Space 3M×12M
Power AC380V/50HZ/16KW


**Specifications are subject to change without notice



Function

Lamination of two paperboards at precision of ±0.5mm, this equipment is capable to laminate and glue combination of thin paper, art paper, cardboard, gray cardboard or thick paper board together to increase the material strength and thickness, or being laminated to have special effect. After shearing or mold cutting, the laminated products can be made to be hang-tag, display card, packing box, material pad, hard cover book, photo album, sun shield or inner lining of piece goods, product demonstration book, puzzle, toys, handbag or decoration materials.







Litho Sheet Feeding Section
  • Front-top leading-edge suction feeder ensures stable running at high speed.
  • No extra adjustment for different sheets format, easy to operate.
  • E-type paper holding plate for quick paper changeover.
  • Pre-loading device by rail equipped as standard.
  • Easy for pulling thin paper to lowest 100 gsm paper.
Bottom Sheet Feeding Section
  • Front-top leading-edge suction feeder ensures stable running at high speed.
  • No extra adjustment for different sheets format, easy to operate.High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410 0

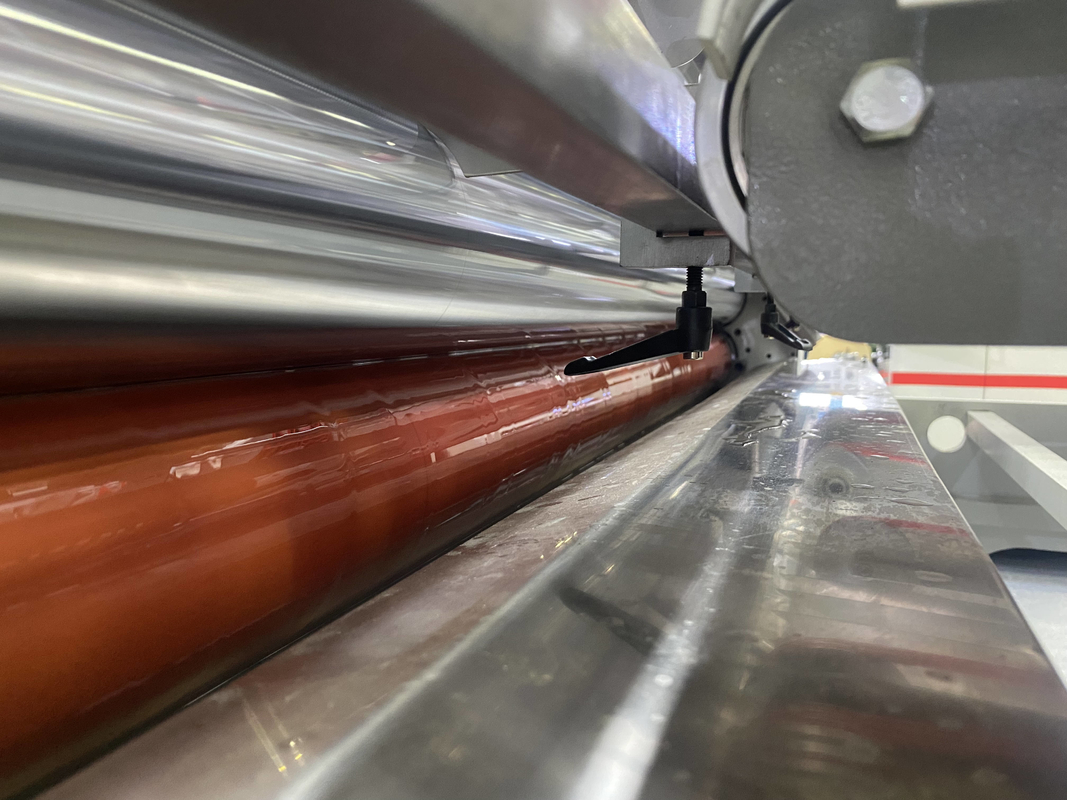

Glue Coating Device

  • Precision of upper glue roller and glue adjusting roller is less than 0.01mm.
  • Minimum coating thickness can be adjusted to 0.02mm.
  • Three sensors to control the glue level automatically.
  • No overflow with delicate Side Glue Stopper at high speed and glue re-circulation system.
  • Paper releaser: releasing the paper from coating roller, also for convenience in dismantle, cleaning and calibration of the coating roller.

High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410 1



High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410 2

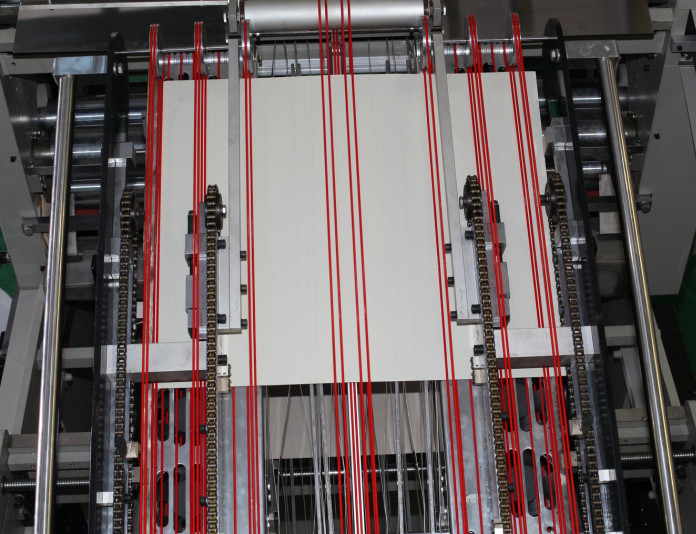

Aligning System:

  • Unique dynamic aligning with synchronized laminating.
  • Front Stopper and Side Stopper to guarantee laminating precision.
  • Lamination of two paperboards at precision of ±0.5mm or higher with good quality paper.

High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410 3High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410 4



Transmission system:

  • The state-of -art planet transmission system allows even distribution in power transmission. The whole equipment is in timer belt transmission, free of servicing, low noise and high efficiency.

High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410 5



Pressing Conveyor:

  • Motorized adjustment of revolving speed and press length allows easy paper size switching.
  • Press laminated paper in multiple layers, and speed up the revolution with the paper pressed individually.
  • Extra rollers apply repeated heavy pressure to make the finished sheets smoother and more perfect.

High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410 6



Automatic Stacker:

  • Vibrant-loose Collecting Mechanism to loosen laminated sheets neatly and ensures smooth collection of paper.
  • E-type stacking plate and high-speed elevator rapidly and conveniently pull out the finished products.

High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410 7



Electric Control System:

  • Three sets of dialogue window: including Man-machine Interface, Voice Alarm and Lamp Indicating PLC.
  • Detect operation condition, abnormal condition, maintenance and working record automatically.
  • Selected electric control elements from Siemens, Becker, Yaskawa and Taiwan.High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410 8



  • Brand of Main Parts:

    Part Name Brand/Origin
    Main motor Siemens
    Vacuum Pump Becker
    Feeder Taiwan
    Bearing Germany/Japan
    Belt Japan/Germany
    Electric Element France/Japan/Germany
    Chain Germany/Taiwan
    Converter Japan
    PLC Yaskawa, Japan
    Man-machine Interface Taiwan

    High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410 9



    High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410 10



    High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410 11

High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410 12High Speed Art Paper Cardboard Laminator 105pcs/min DX-1410 13
