6-25mm Thermal Film Laminator Machine Automatic Feeding

Certification
China Dongtai Dingxing Machinery Technology Co., Ltd certification
China Dongtai Dingxing Machinery Technology Co., Ltd certification
I'm Online Chat Now

6-25mm Thermal Film Laminator Machine Automatic Feeding

6-25mm Thermal Film Laminator Machine Automatic Feeding
6-25mm Thermal Film Laminator Machine Automatic Feeding 6-25mm Thermal Film Laminator Machine Automatic Feeding 6-25mm Thermal Film Laminator Machine Automatic Feeding 6-25mm Thermal Film Laminator Machine Automatic Feeding

Large Image :  6-25mm Thermal Film Laminator Machine Automatic Feeding

Product Details:
Place of Origin: CHINA
Brand Name: MTM/DINGXING
Certification: ISO/CE
Model Number: MTM-130E4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 60000-90000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 SET/MONTH

6-25mm Thermal Film Laminator Machine Automatic Feeding

Description
Max. Laminating Width (mm): 1080 Max Sheet W×L (mm): 1080×1300
Min Sheet W×L (mm): 350×350 Paper Thickness (gsm): 100-500
High Light:

25mm Thermal Film Laminator Machine

,

Thermal Film Laminator Machine Automatic Feeding

,

25mm film automatic laminator machine

MTM-130E4 Automatic Hot Knife Film Laminator



MTM-E Automatic Hot Knife Film Laminator

Description Quantity

Automatic Hot Knife Film Laminator 1 SET Model: MTM-130E4

6-25mm Thermal Film Laminator Machine Automatic Feeding 0

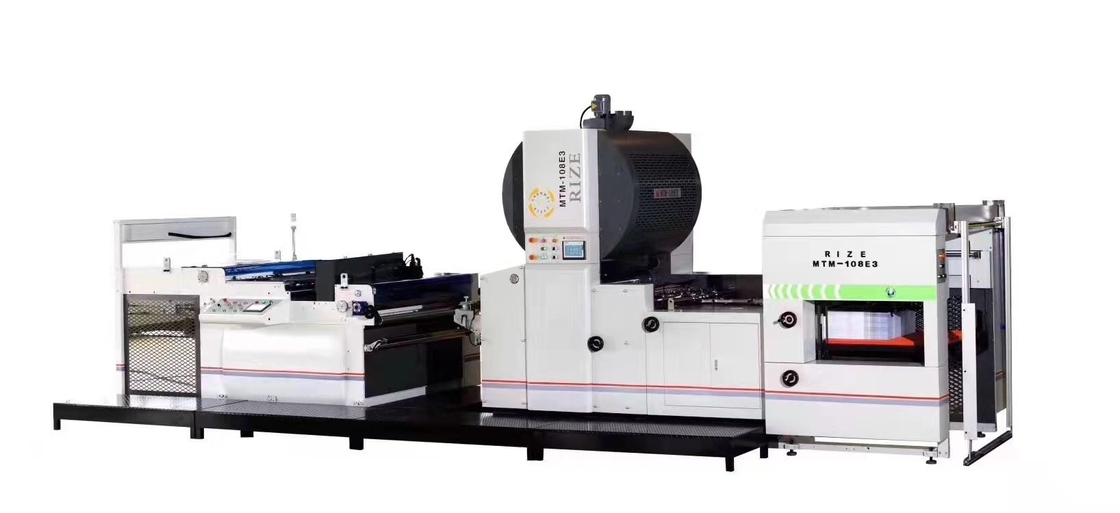

Automatic Hot Knife Film Laminator

Hot knife cutting blade is suitable for all films, especially PET film,metalized films(metpet) etc..

General features:

●High efficient: Power consumption of hot knife is as low as 0.4kW.

●No tail film: knife blade temperatures rose to 400 °C within 3 seconds to ensure net and quick cutting.

●High Speed Cut: 80 meters per minute.

●High cut accuracy: Double laser self-aligning device ensures perfect cutting effect.

●High precision ceramic anilox coating roller as standard to ensure super even gluing, no glue stripes, longer roller life, anti-corrosion, glue saving(5g/sqm).

●Non-stop paper feeder system enables continuous feeding without machine stop to minimize waste film.

●Electric thermal powder-removal system ensures clean paper surface to enhance lamination quality.

●Electric glue drying system combined with heat recirculation system to guarantee quick heating to dry the glue and power saving.(30kW consumption in production)



Specification Sheet



MODEL MTM-130E MTM-145E

Max. laminating width (mm)



1080 1080
Max sheet W×L (mm) 1080×1300 1080X1450
Min sheet W×L (mm) 350×350 350×350
Paper thickness (gsm) 100-500 100-500
Film thickness (µm) 6--25 6--25
Machine speed (m/min) 10-70 10-70
Machine Dimension L*W*H (mm) 10300*2366*2900 12994*2754*2926
Machine weight (kgs) 9500 10200

Total power (kw)



68kW

30kW(Production)

68kW

30kW(Production)





Standard Function Sections:

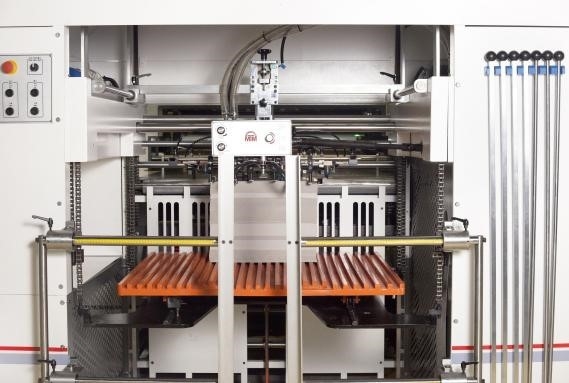

  1. Automatic feeder

-Servo control automatic high speed feeder.

-Non-stop feeding device.



6-25mm Thermal Film Laminator Machine Automatic Feeding 1







B. Side lay register

-Mechanical side lay register

-High speed paper registration.

6-25mm Thermal Film Laminator Machine Automatic Feeding 2



C. Powder Removal System



-Electrostatic paper powder collector as standard

- to increase paper brightness and reduce the amount of glue.



6-25mm Thermal Film Laminator Machine Automatic Feeding 3

D. Laminating Section







- Electromagnetic heating system , quick heating , energy saving and environmental protection.


6-25mm Thermal Film Laminator Machine Automatic Feeding 4



E. Coating System:(with Electromagnetic energy-saving system)



- Precision ceramic roller coating , glue saving.


6-25mm Thermal Film Laminator Machine Automatic Feeding 5





F. Drying system:(with Electromagnetic energy-saving system)



- Hot air circulation system , high speed drying , power saving.

6-25mm Thermal Film Laminator Machine Automatic Feeding 6



G. Automatic cutting







-STEINEMANN hot knife cutting system suitable for PET/OPP/PVC/Aluminum foil film cutting

-Servo automatic tracking control

-Servo control tension

-Laser positioning, accurate and precise

6-25mm Thermal Film Laminator Machine Automatic Feeding 7





  1. Automatic Non-stop Stacker

-Three sides paper aligning , automatic speed reduction , double sheet removal device.

6-25mm Thermal Film Laminator Machine Automatic Feeding 8
