Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker

Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker

12000sheet/hour Automatic Flute Laminator

Gearbox Automatic Flute Laminator

Electric High Speed Flute Laminator

Place of Origin:

Shandong, China

Brand Name:

Hangsen

Contact Us
Request A Quote
Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker
Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker
Product Details
Type:
Laminating Machine
Applicable Industries:
Manufacturing Plant, Packing Machine, Packing Industry
Showroom Location:
Egypt, Canada, Turkey, United States, Viet Nam, Philippines, Indonesia, India, Mexico, Thailand, Argentina, South Korea, Algeria, Poland
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Core Components:
PLC, Engine, Gearbox, Motor, Pump
Condition:
New
Application:
Packing
Packaging Type:
Cartons
Packaging Material:
Paper
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
Customized
Dimension(L*W*H):
16727*2514*2180mm
Weight:
7500 KG
Warranty:
1 Year
Key Selling Points:
High-accuracy
Machine Type:
High Speed Flute Laminator
Speed:
12000sheet/hour
Feeder Base Type:
Back Feeder Or Leading Edge Feeder
Gluing System:
No Overflow And Recycle
Compensation Aligning System:
Precise Aligning With Servo Motor
Electrical Control System:
PLC Control
Optional:
Leading-edge Feeder
Other Optional:
Back Feeder
Certificate:
CE ISO
Laminating Precision::
±1mm
Marketing Type:
New Product 2021
Port:
Qingdao
Highlight:

12000sheet/hour Automatic Flute Laminator

,

Gearbox Automatic Flute Laminator

,

Electric High Speed Flute Laminator

Payment & Shipping Terms
Price
$55,000.00 - $65,000.00/sets
Packaging Details
standard packing
Supply Ability
10 Set/Sets per Month
RELATED PRODUCTS
Good price Automatic Corrugated Cardboard Flute Laminator CE Certified online Video

Automatic Corrugated Cardboard Flute Laminator CE Certified

Get Best Price
Good price Cardboard Automatic High Speed Flute Laminator Inline With Electric Driven online Video

Cardboard Automatic High Speed Flute Laminator Inline With Electric Driven

Get Best Price
Good price 7 Layers Corrugate High Speed Flute Laminator 150m/Min DX-1450 online Video

7 Layers Corrugate High Speed Flute Laminator 150m/Min DX-1450

Get Best Price
Good price 120-600gsm Top Sheet Automatic 5 Ply Flute Laminator ISO CE online Video

120-600gsm Top Sheet Automatic 5 Ply Flute Laminator ISO CE

Get Best Price
Contact Us
+86 18678943457
tony@dingxingmachinery.com
86-515-85571076
Contact Now
Product Description

Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker

Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker 0

Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker 1Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker 2



Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker 3

DX-1450
DX-1650
DX-1650XL
DX-2100
MAX
145*145mm
165*145mm
165*165mm
210*210mm
MIN
400*450mm
400*450mm
400*450mm
550*450mm
TOP GSM
120-600/m²
120-600/m²
120-600/m²
120-600/m²
BOT THICK
0.5-10MM A-N 2/3/5 corrugated board, grey paper board, cardboard



SPEED
150M/MIN



ACCURACY
±1.5MM



POWER
26KW
28KW
28KW
29KW
WEIGHT
7T
7.5T
7.5T
8.5T
Dimension
14056*2314*2560mm
14056*2514*2560mm
16598*2514*2560mm
17607*2964*2180mm



Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker 4

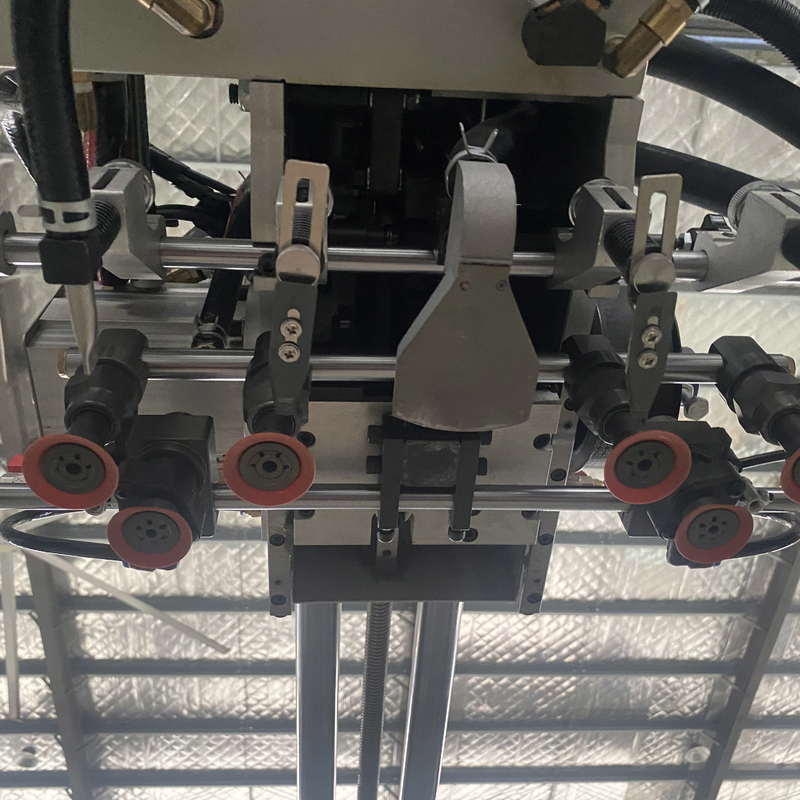

Servo shaftless back feeder, make the top sheet feeding paper overlap, fast and efficiency.
Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker 5
Dual servo bottom sheet feeder ensures smooth feeding of warping and multi-ply paperboards.
Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker 6

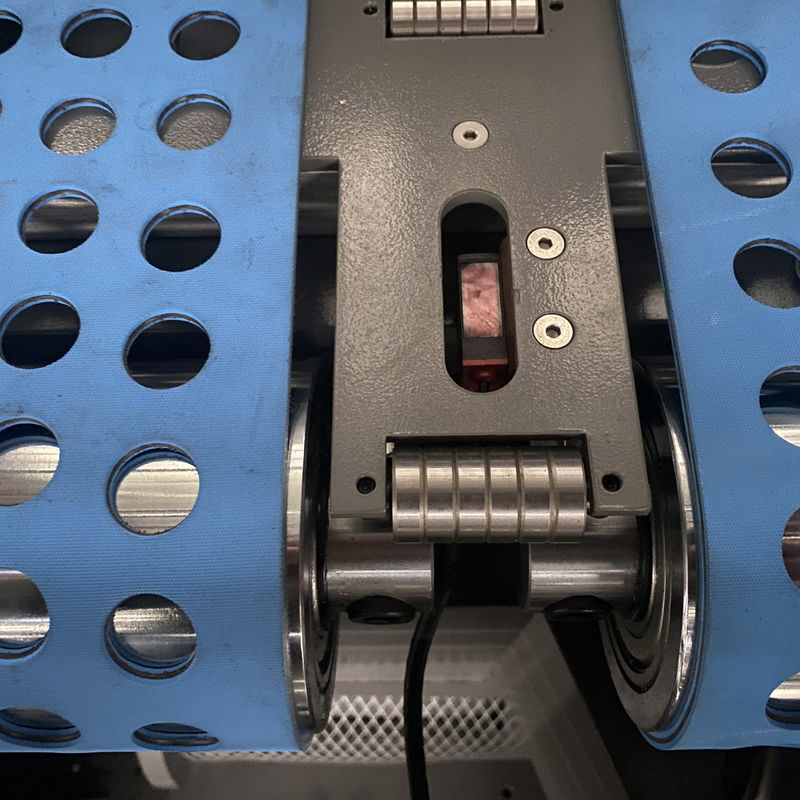

Multiple sensors detectrelative position of bottom paper, while servo motors ensure dependentupper paper delivery compensation to guarantee precise aligning of two sheets.
Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker 7

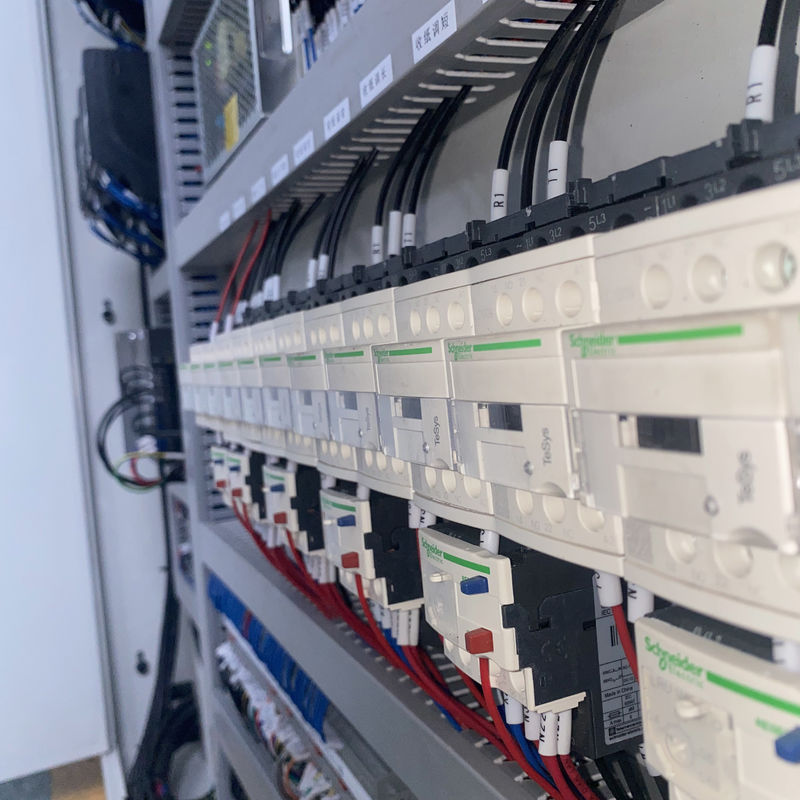

Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition, irregularities and job record. CE certified. The electrical components adopt international brands, such as Yaskawa, Schneider, Siemens and Omron, etc.
Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker 8

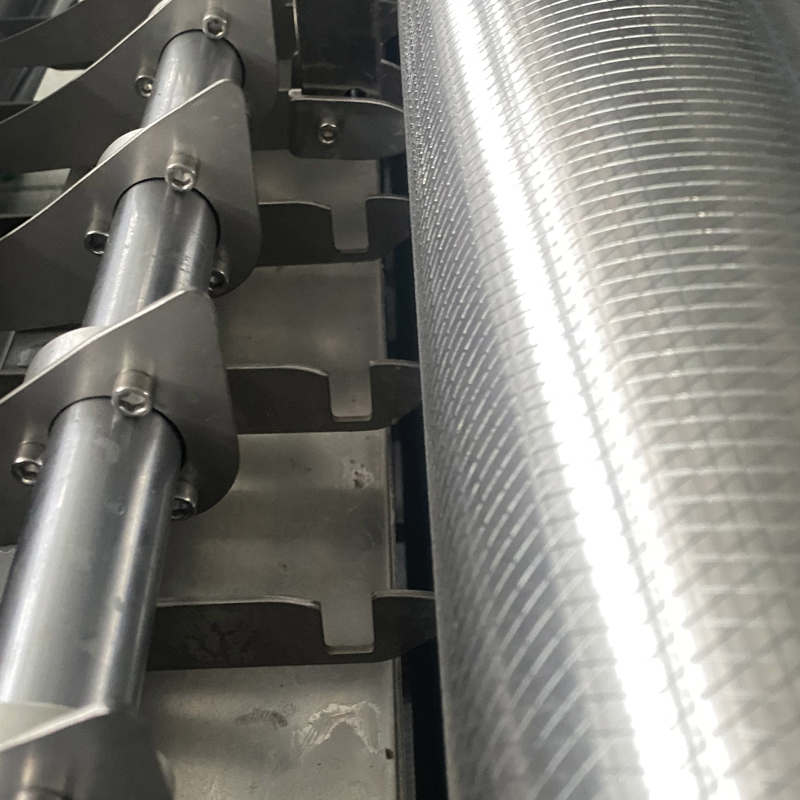

High-precision gluing rollers, glue side stopper, auto glue level controller, no overflow at high speed and glue recirculation system.
Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker 9

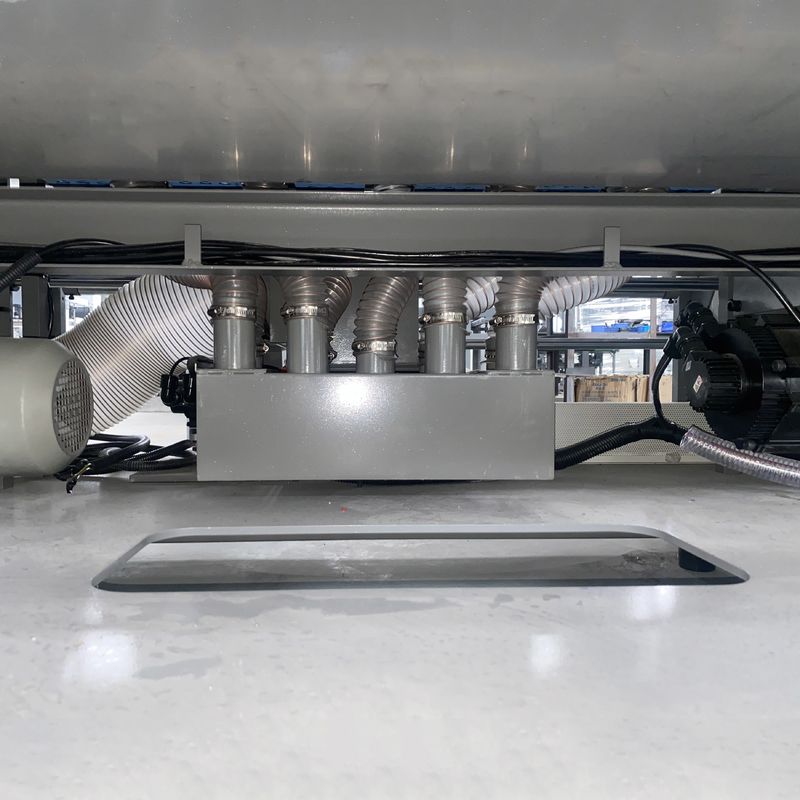

Bottom sheet suction equipped with servo motors instead of electromagnetic valve, much stable and efficient.


Easy Operation High Speed Automatic Flute Laminator With Auto Flip Flop Stacker 10
