Customized High Speed Flute Laminator Inline With Auto Flip Flop Stacker

Customized High Speed Flute Laminator Inline With Auto Flip Flop Stacker
Customized High Speed Flute Laminator Inline With Auto Flip Flop Stacker Customized High Speed Flute Laminator Inline With Auto Flip Flop Stacker Customized High Speed Flute Laminator Inline With Auto Flip Flop Stacker Customized High Speed Flute Laminator Inline With Auto Flip Flop Stacker Customized High Speed Flute Laminator Inline With Auto Flip Flop Stacker Customized High Speed Flute Laminator Inline With Auto Flip Flop Stacker

Large Image :  Customized High Speed Flute Laminator Inline With Auto Flip Flop Stacker

Product Details:
Place of Origin: DONGGUAN
Brand Name: DINGXING/DINGYI
Payment & Shipping Terms:
Price: $55,000.00 - $65,000.00/sets
Packaging Details: standard packing
Supply Ability: 10 Set/Sets per Month

Customized High Speed Flute Laminator Inline With Auto Flip Flop Stacker

Description
Type: Laminating Machine Applicable Industries: Manufacturing Plant, Packing Machine, Packing Industry
Showroom Location: Canada, United States, Poland Video Outgoing-inspection: Provided
Machinery Test Report: Provided Warranty Of Core Components: 2 Years
Core Components: PLC, Engine, Bearing, Motor Condition: New
Application: Packing Packaging Type: Cartons
Packaging Material: Paper Automatic Grade: Automatic
Driven Type: Electric Voltage: Customized
Dimension(L*W*H): 16727*2514*2180mm Weight: 7500 KG
Warranty: 1 Year Key Selling Points: High-accuracy
Machine Type: High Speed Flute Laminator Speed: 12000sheet/hour
Feeder Base Type: E -type Piling Table Gluing System: No Overflow
Compensation Aligning System: Precise Aligning Electrical Control System: PLC Control
Optional: Leading-edge Feeder Other Optional: Back Feeder
Certificate: CE ISO Laminating Precision:: ±1mm
Marketing Type: New Product 2021 Port: Qingdao
High Light:

Customized High Speed Flute Laminator

,

29KW High Speed Flute Laminator

,

Auto Flip Flop Stacker Laminator

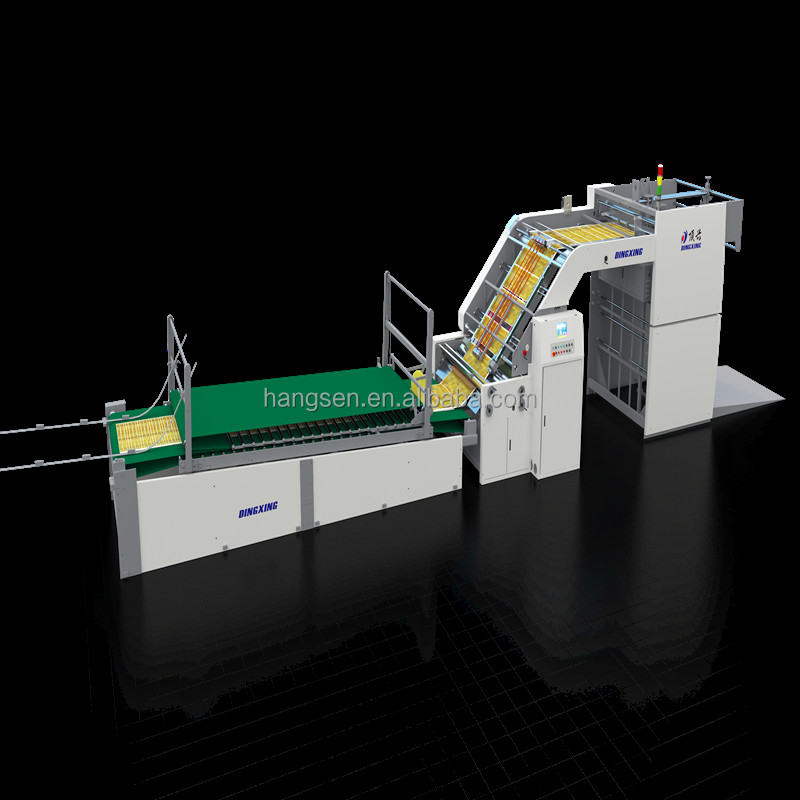

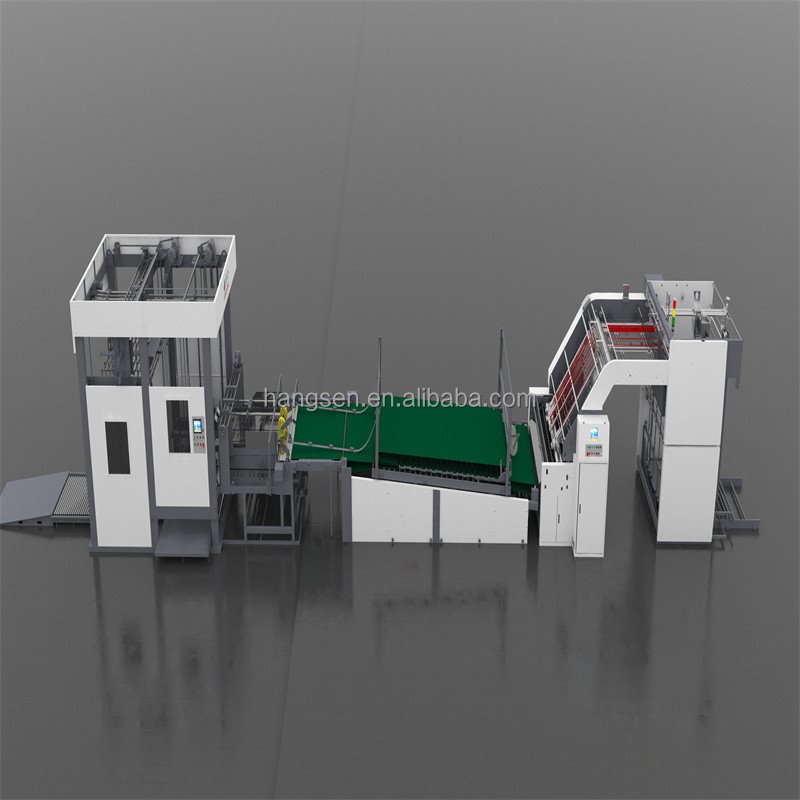

High Speed Flute Laminator Inline with Auto Flip Flop  Stacker



Computerized high-speed lamination at max.speed of 12,000 sheets per hour(Paper length:600mm)

• Feeder Base: Low E-type piling table ensures direct paper feeding by pallet cart. Railway truck pre-loader is optional.

• Gluing System:High-precision gluing rollers, glue side stopper, auto glue level controller, no overflow at high speed and glue recirculation system.

• Compensation Aligning System: multiple sensors detect relative position of bottom paper,while servo motors ensure dependent upper paper

delivery compensation to guarantee precise aligning of two sheets.

• Electrical Control System: Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition,

irregularities and job record. CE certified.



DX-1450

DX-1650

DX-1650XL

DX-2100

MAX

145*145

165*145

165*165

210*210

MIN

400*450

400*450

400*450

550*450

TOP GSM

120-600

120-600

120-600

120-600

BOT THICK

0.5-10MM A-N 2/3/5 corrugated board, grey paper board, cardboard

SPEED

150M/MIN

ACCURACY

±1.5MM

POWER

26KW

28KW

28KW

29KW

WEIGHT

7

7.5

7.5

8.5

Dimension

14056*2314*2560

14056*2514*2560

16598*2514*2560

17607*2964*2180

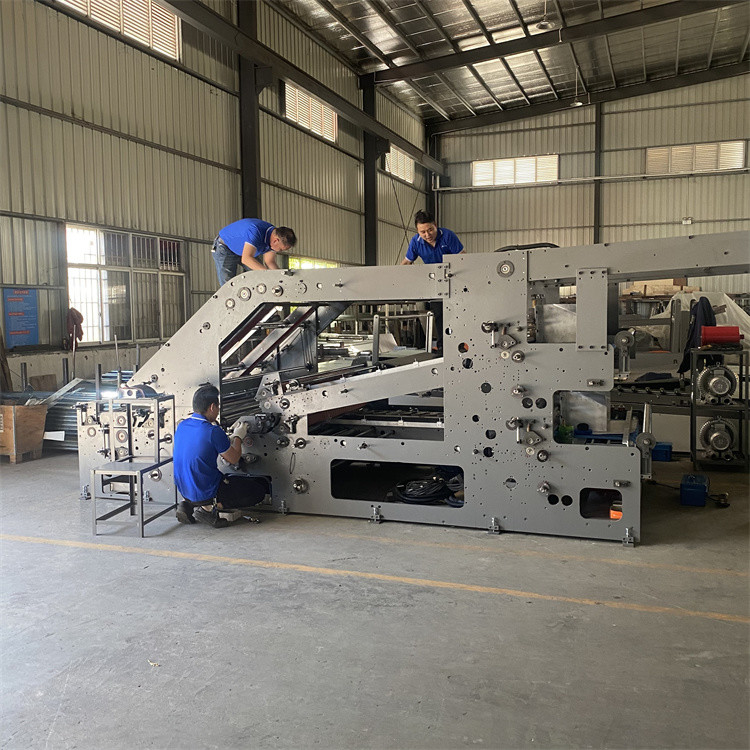

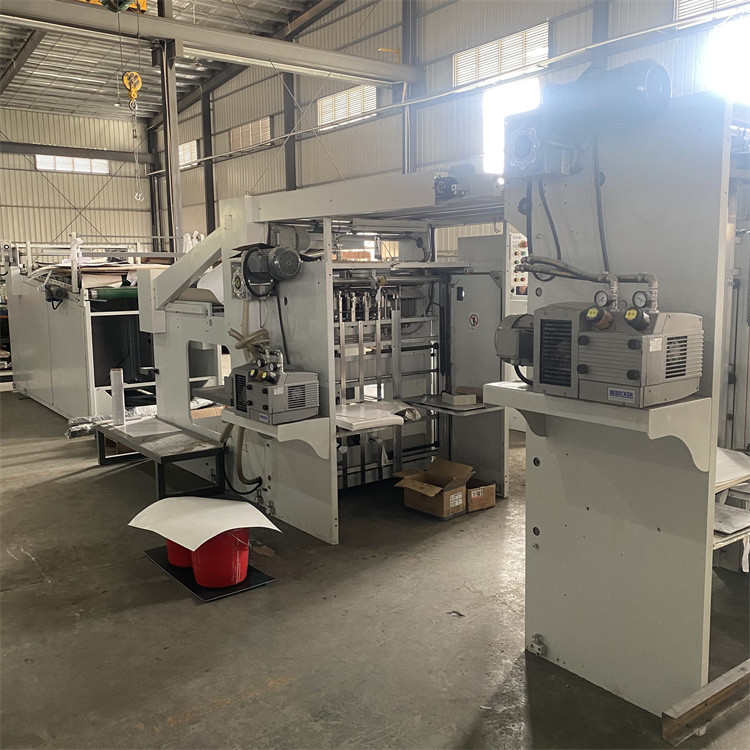

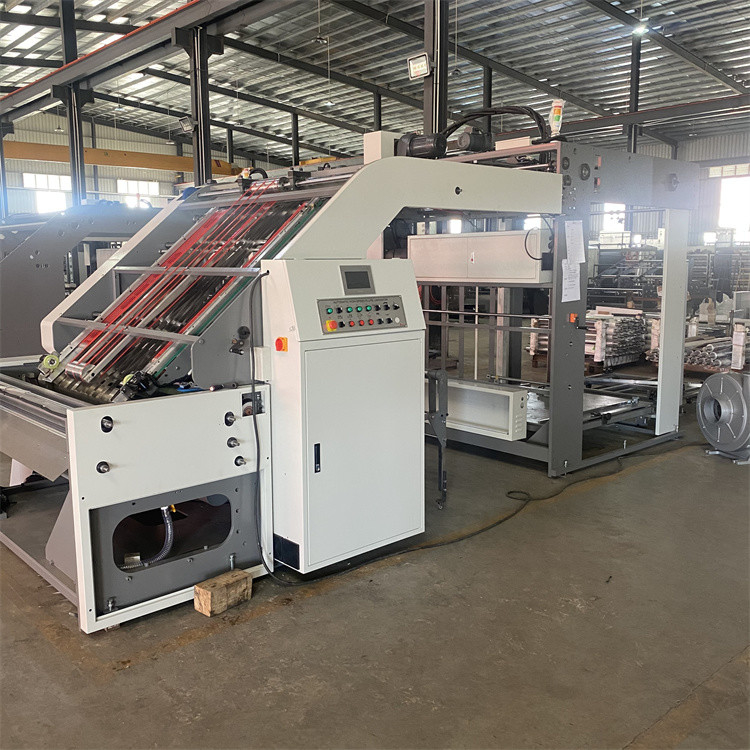

 Customized High Speed Flute Laminator Inline With Auto Flip Flop Stacker 0



Customized High Speed Flute Laminator Inline With Auto Flip Flop Stacker 1



Customized High Speed Flute Laminator Inline With Auto Flip Flop Stacker 2



Customized High Speed Flute Laminator Inline With Auto Flip Flop Stacker 3



Customized High Speed Flute Laminator Inline With Auto Flip Flop Stacker 4



Customized High Speed Flute Laminator Inline With Auto Flip Flop Stacker 5





Customized High Speed Flute Laminator Inline With Auto Flip Flop Stacker 6
