High Speed Corrugated Carton Box Flute Laminating Machine Automatic

Corrugated Carton Box Flute Laminator

Fully Automatic Flute Laminating Machine

26kw Flute Laminating Machine

Place of Origin:

China, Shandong

Brand Name:

DINGXING/DINGYI

Request A Quote

Product Details

Type:

Laminating Machine

Applicable Industries:

Packing Industry

Showroom Location:

Canada, Poland

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Warranty Of Core Components:

2 Years

Core Components:

PLC, Engine, Motor, PLC, Engine, Bearing

Weight:

8000 KG

Warranty:

1 Year

Key Selling Points:

High-accuracy

Machine Type:

Highspeed Laminator

Electrical Control System:

Human Machine Interface With PLC Control

Brand Name:

HangSen

Speed:

12000pcs

After Warranty Service:

Video Technical Support, Online Support, Spare Parts,

Voltage:

Customized

Automatic Grade:

Fully Automatic

Precision:

±1mm

Marketing Type:

New Product 2021

Port:

Qingdao

Highlight:

Corrugated Carton Box Flute Laminator

Fully Automatic Flute Laminating Machine

26kw Flute Laminating Machine

Payment & Shipping Terms

Price

$25,000.00/sets >=1 sets

Packaging Details

standard packing

Supply Ability

50 Set/Sets per Month

Automatic Corrugated Cardboard Flute Laminator CE Certified

Get Best Price

Video

Cardboard Automatic High Speed Flute Laminator Inline With Electric Driven

Get Best Price

Video

7 Layers Corrugate High Speed Flute Laminator 150m/Min DX-1450

Get Best Price

Video

120-600gsm Top Sheet Automatic 5 Ply Flute Laminator ISO CE

Get Best Price

+86 18678943457

tony@dingxingmachinery.com

86-515-85571076

Contact Now

Product Description

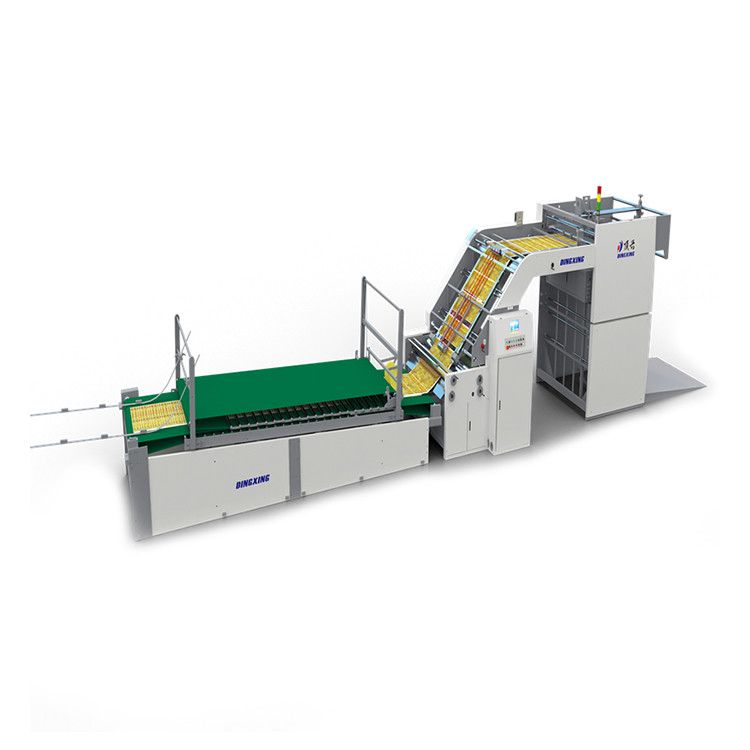

High Speed Automatic Corrugated Carton Box Flute Laminating Machine Machinery High Speed Flute Laminator Line

	DX-1450	DX-1650	DX-1650XL	DX-2100
MAX	145*145	165*145	165*165	210*210
MIN	400*450	400*450	400*450	550*450
TOP GSM	120-600	120-600	120-600	120-600
BOT THICK	0.5-10MM A-N 2/3/5 corrugated board, grey paper board, cardboard
SPEED	150M/MIN
ACCURACY	±1.5MM
POWER	26KW	28KW	28KW	29KW
WEIGHT	7	7.5	7.5	8.5
Dimension	1405623142560	1405625142560	1659825142560	1760729642180

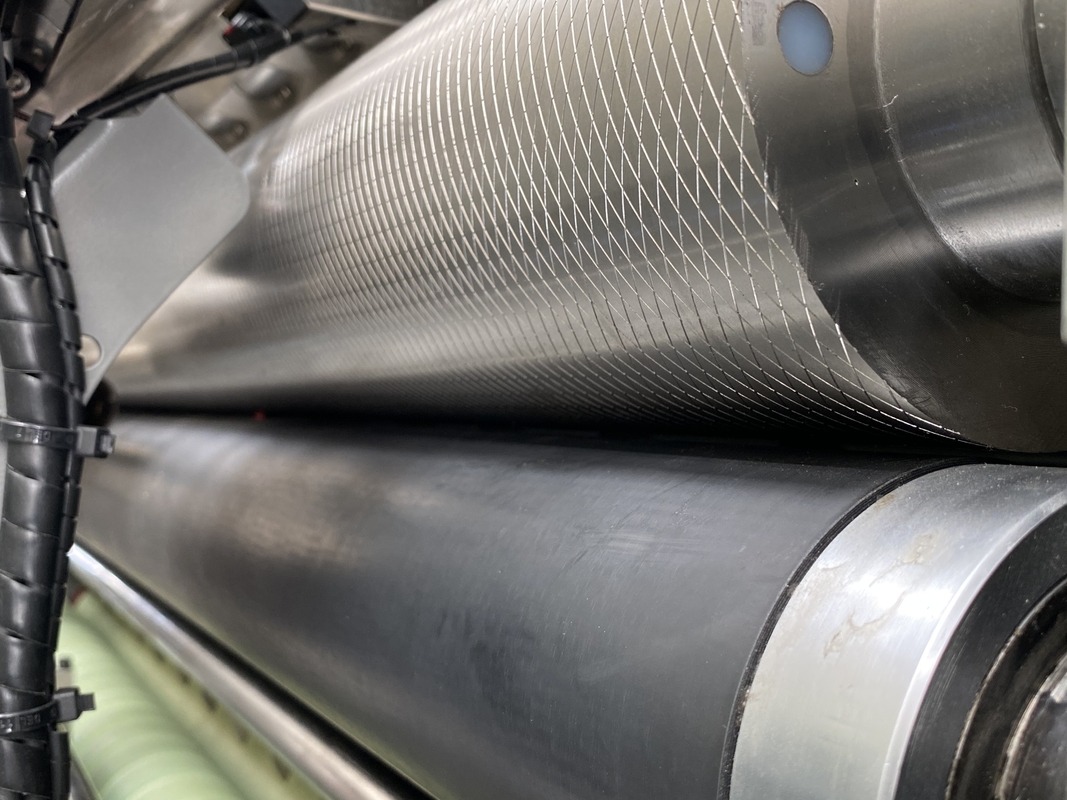

Computerized high-speed lamination at max.speed of 12,000 sheets per hour(Paper length:600mm) • Feeder Base: Low E-type piling table ensures direct paper feeding by pallet cart. Railway truck pre-loader is optional. • Gluing System:High-precision gluing rollers, glue side stopper, auto glue level

controller, no overflow at high speed and glue recirculation system. • Compensation Aligning System: multiple sensors detect relative position of bottom paper,while servo motors ensure dependent upper paper delivery compensation to guarantee precise aligning of two sheets. • Electrical Control System: Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition, irregularities and job record. CE certified.
