Full Automatic Flute Laminator for Carton Paper

Full Automatic Flute Laminator

Carton Paper Automatic Flute Laminator

Plc Control Flute Laminator

Place of Origin:

DONGGUAN

Brand Name:

DINGXING/DINGYI

Request A Quote

Product Details

Type:

Laminating Machine

Applicable Industries:

Manufacturing Plant, Packing Machine, Packing Industry

Showroom Location:

Canada, United States, Poland

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Warranty Of Core Components:

2 Years

Core Components:

PLC, Engine, Bearing, Motor

Condition:

New

Application:

Packing

Packaging Type:

Cartons

Packaging Material:

Paper

Automatic Grade:

Automatic

Driven Type:

Electric

Voltage:

Customized

Dimension(L*W*H):

16727*2514*2180mm

Weight:

7500 KG

Warranty:

1 Year

Key Selling Points:

High-accuracy

Machine Type:

High Speed Flute Laminator

Speed:

12000sheet/hour

Feeder Base Type:

E -type Piling Table

Gluing System:

No Overflow

Compensation Aligning System:

Precise Aligning

Electrical Control System:

PLC Control

Optional:

Leading-edge Feeder

Other Optional:

Back Feeder

Certificate:

CE ISO

Laminating Precision::

±1mm

Marketing Type:

New Product 2021

Port:

Qingdao

Highlight:

Full Automatic Flute Laminator

Carton Paper Automatic Flute Laminator

Plc Control Flute Laminator

Payment & Shipping Terms

Price

$55,000.00 - $65,000.00/sets

Packaging Details

standard packing

Supply Ability

10 Set/Sets per Month

Automatic Corrugated Cardboard Flute Laminator CE Certified

Get Best Price

Video

Cardboard Automatic High Speed Flute Laminator Inline With Electric Driven

Get Best Price

Video

7 Layers Corrugate High Speed Flute Laminator 150m/Min DX-1450

Get Best Price

Video

120-600gsm Top Sheet Automatic 5 Ply Flute Laminator ISO CE

Get Best Price

+86 18678943457

tony@dingxingmachinery.com

86-515-85571076

Contact Now

Product Description

Full Automatic Flute Laminator , Carton Paper Laminator

Computerized high-speed lamination at max.speed of 12,000 sheets per hour(Paper length:600mm)

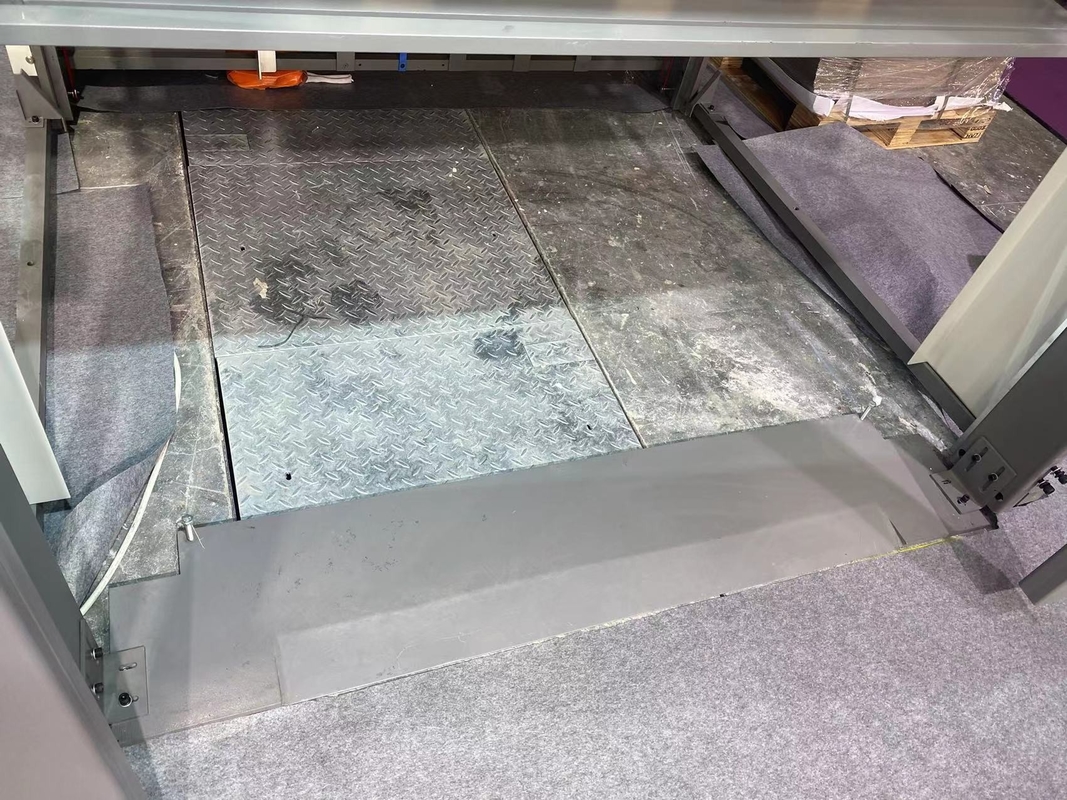

• Feeder Base: Low E-type piling table ensures direct paper feeding by pallet cart. Railway truck pre-loader is optional.

• Gluing System:High-precision gluing rollers, glue side stopper, auto glue level controller, no overflow at high speed and glue recirculation system.

• Compensation Aligning System: multiple sensors detect relative position of bottom paper,while servo motors ensure dependent upper paper

delivery compensation to guarantee precise aligning of two sheets.

• Electrical Control System: Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition,

irregularities and job record. CE certified.

	DX-1450	DX-1650	DX-1650XL	DX-2100
MAX	145*145	165*145	165*165	210*210
MIN	400*450	400*450	400*450	550*450
TOP GSM	120-600	120-600	120-600	120-600
BOT THICK	0.5-10MM A-N 2/3/5 corrugated board, grey paper board, cardboard
SPEED	150M/MIN
ACCURACY	±1.5MM
POWER	26KW	28KW	28KW	29KW
WEIGHT	7	7.5	7.5	8.5
Dimension	1405623142560	1405625142560	1659825142560	1760729642180

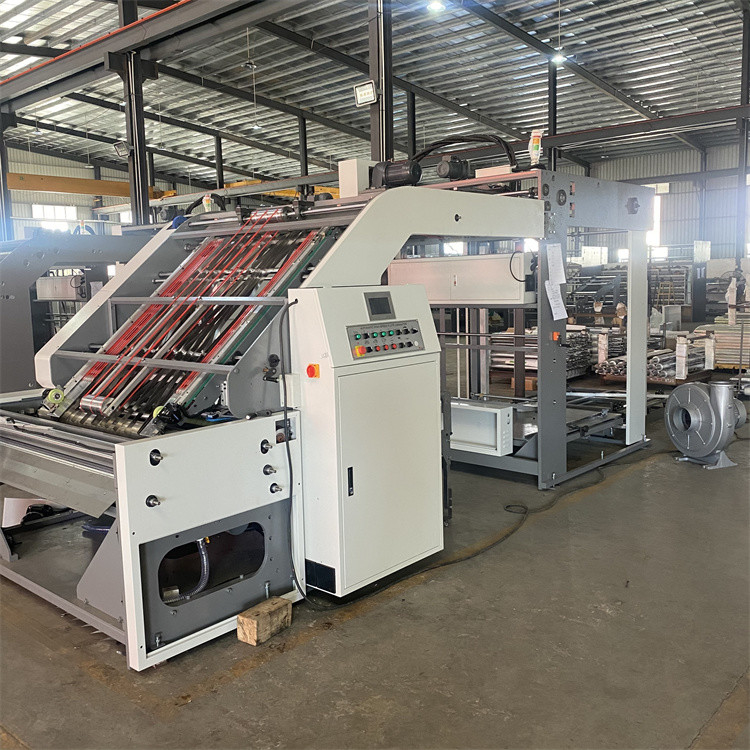

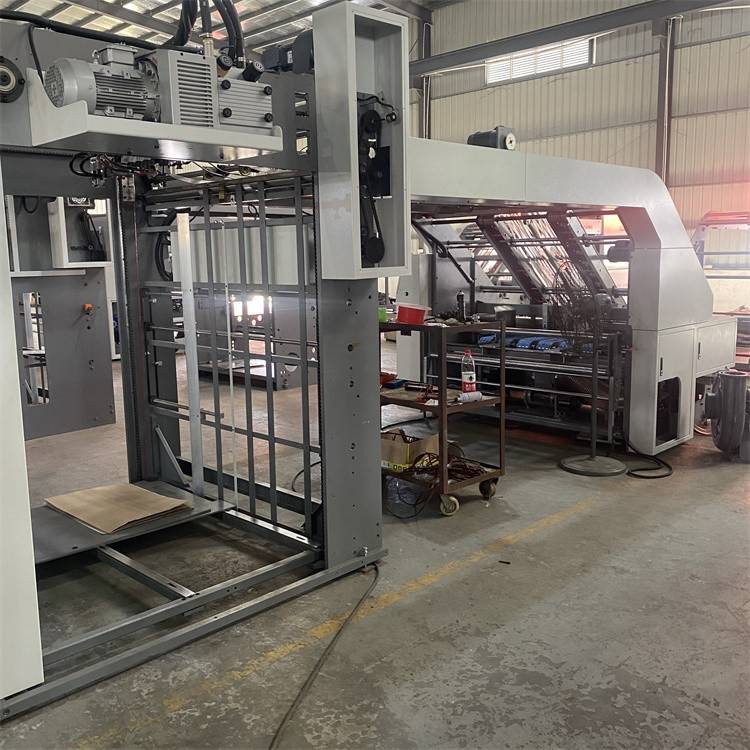

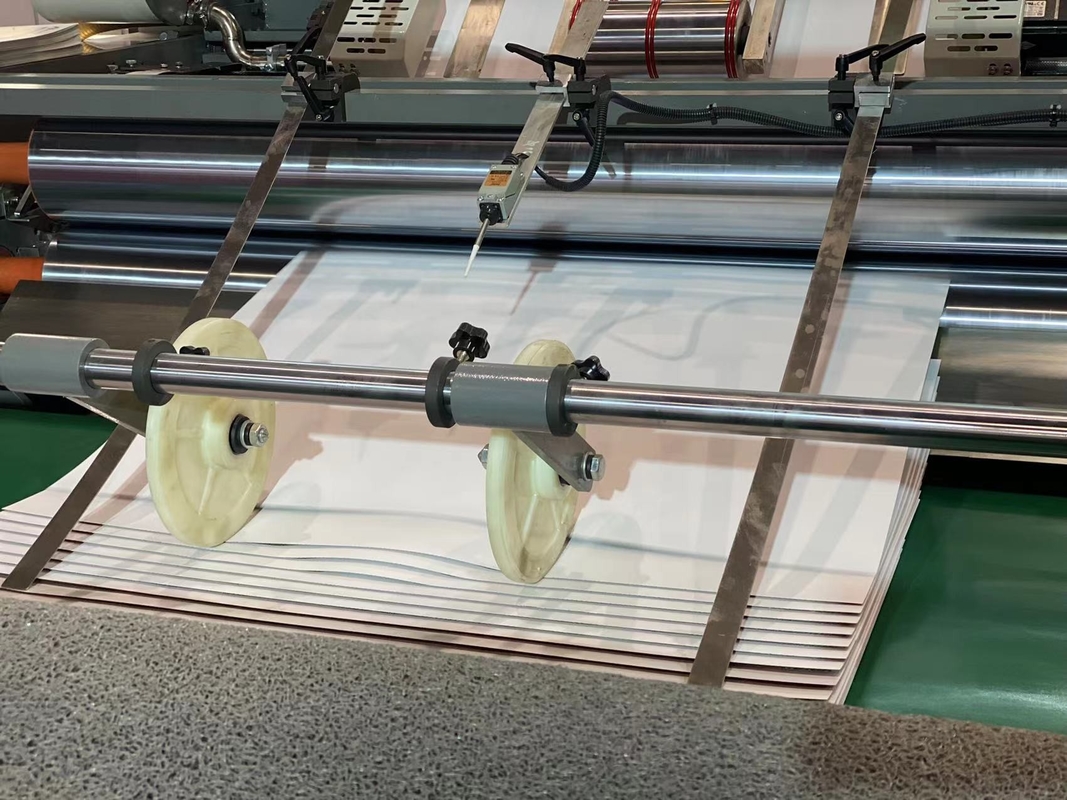

Full Automatic Flute Laminator for Carton Paper 0

Full Automatic Flute Laminator for Carton Paper 6

Full Automatic Flute Laminator for Carton Paper 9
