Cardboard Inline High Speed Flute Laminator With Auto Flip Flop Stacker

Cardboard Inline High Speed Flute Laminator With Auto Flip Flop Stacker

Inline High Speed Flute Laminator

Cardboard High Speed Flute Laminator

Flip Flop Stacker Flute Laminator

Place of Origin:

DONGGUAN

Brand Name:

DINGXING/DINGYI

Contact Us
Request A Quote
Cardboard Inline High Speed Flute Laminator With Auto Flip Flop Stacker
Cardboard Inline High Speed Flute Laminator With Auto Flip Flop Stacker Cardboard Inline High Speed Flute Laminator With Auto Flip Flop Stacker Cardboard Inline High Speed Flute Laminator With Auto Flip Flop Stacker Cardboard Inline High Speed Flute Laminator With Auto Flip Flop Stacker Cardboard Inline High Speed Flute Laminator With Auto Flip Flop Stacker
Product Details
Type:
Laminating Machine
Applicable Industries:
Manufacturing Plant, Packing Machine, Packing Industry
Showroom Location:
Canada, United States, Italy, Russia, Morocco, Sri Lanka, Ukraine, Malaysia, Poland
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty Of Core Components:
2 Years
Core Components:
PLC, Engine, Bearing, Motor
Condition:
New
Application:
Food, Packing
Packaging Type:
Cartons
Packaging Material:
Paper
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
Customized
Dimension(L*W*H):
16727*2514*2180mm
Weight:
7500 KG
Warranty:
1 Year
Key Selling Points:
High-accuracy
Machine Type:
High Speed Flute Laminator
Speed:
12000sheet/hour
Feeder Base Type:
E -type Piling Table
Gluing System:
No Overflow
Compensation Aligning System:
Precise Aligning
Electrical Control System:
PLC Control
Optional:
Leading-edge Feeder
Other Optional:
Back Feeder
Certificate:
CE ISO
Laminating Precision::
±1mm
Marketing Type:
New Product 2021
Port:
Shenzhen
Highlight:

Inline High Speed Flute Laminator

,

Cardboard High Speed Flute Laminator

,

Flip Flop Stacker Flute Laminator

Payment & Shipping Terms
Price
$55,000.00 - $65,000.00/sets
Packaging Details
standard packing
Supply Ability
10 Set/Sets per Month
RELATED PRODUCTS
Good price Automatic Corrugated Cardboard Flute Laminator CE Certified online Video

Automatic Corrugated Cardboard Flute Laminator CE Certified

Get Best Price
Good price Cardboard Automatic High Speed Flute Laminator Inline With Electric Driven online Video

Cardboard Automatic High Speed Flute Laminator Inline With Electric Driven

Get Best Price
Good price 7 Layers Corrugate High Speed Flute Laminator 150m/Min DX-1450 online Video

7 Layers Corrugate High Speed Flute Laminator 150m/Min DX-1450

Get Best Price
Good price 120-600gsm Top Sheet Automatic 5 Ply Flute Laminator ISO CE online Video

120-600gsm Top Sheet Automatic 5 Ply Flute Laminator ISO CE

Get Best Price
Contact Us
+86 18678943457
tony@dingxingmachinery.com
86-515-85571076
Contact Now
Product Description

High Speed Flute Laminator Inline with Auto Flip Flop  Stacker



Computerized high-speed lamination at max.speed of 12,000 sheets per hour(Paper length:600mm)

• Feeder Base: Low E-type piling table ensures direct paper feeding by pallet cart. Railway truck pre-loader is optional.

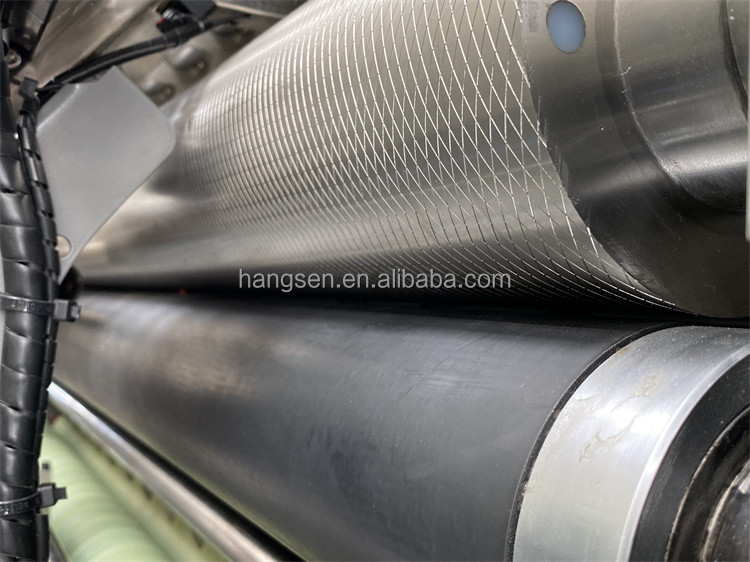

• Gluing System:High-precision gluing rollers, glue side stopper, auto glue level controller, no overflow at high speed and glue recirculation system.

• Compensation Aligning System: multiple sensors detect relative position of bottom paper,while servo motors ensure dependent upper paper

delivery compensation to guarantee precise aligning of two sheets.

• Electrical Control System: Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition,

irregularities and job record. CE certified.



DX-1450

DX-1650

DX-1650XL

DX-2100

MAX

145*145

165*145

165*165

210*210

MIN

400*450

400*450

400*450

550*450

TOP GSM

120-600

120-600

120-600

120-600

BOT THICK

0.5-10MM A-N 2/3/5 corrugated board, grey paper board, cardboard

SPEED

150M/MIN

ACCURACY

±1.5MM

POWER

26KW

28KW

28KW

29KW

WEIGHT

7

7.5

7.5

8.5

Dimension

14056*2314*2560

14056*2514*2560

16598*2514*2560

17607*2964*2180










 Cardboard Inline High Speed Flute Laminator With Auto Flip Flop Stacker 0Cardboard Inline High Speed Flute Laminator With Auto Flip Flop Stacker 1Cardboard Inline High Speed Flute Laminator With Auto Flip Flop Stacker 2Cardboard Inline High Speed Flute Laminator With Auto Flip Flop Stacker 3Cardboard Inline High Speed Flute Laminator With Auto Flip Flop Stacker 4Cardboard Inline High Speed Flute Laminator With Auto Flip Flop Stacker 5Cardboard Inline High Speed Flute Laminator With Auto Flip Flop Stacker 6
