Thermal Knife PUR Laminating Machine Dust Removal MTM-145E4

Thermal Knife PUR Laminating Machine Dust Removal MTM-145E4
Thermal Knife PUR Laminating Machine Dust Removal MTM-145E4 Thermal Knife PUR Laminating Machine Dust Removal MTM-145E4 Thermal Knife PUR Laminating Machine Dust Removal MTM-145E4 Thermal Knife PUR Laminating Machine Dust Removal MTM-145E4

Large Image :  Thermal Knife PUR Laminating Machine Dust Removal MTM-145E4

Product Details:
Place of Origin: CHINA
Brand Name: MTM/DINGXING
Certification: ISO/CE
Model Number: MTM-145E4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 50000-80000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 SET/MONTH

Thermal Knife PUR Laminating Machine Dust Removal MTM-145E4

Description
Max. Laminating Width (mm): 1080 Max Sheet W×L (mm): 1080X1450
Min Sheet W×L (mm): 350×350 Paper Thickness (gsm): 100-500
High Light:

PUR Laminating Machine Thermal Knife

,

PUR Laminating Machine Dust Removal

,

Dust Removal thermal laminating machine

MTM-145E4 High Speed Thermal Knife Film Lamination machine

Automatic Hot Knife Film Laminator

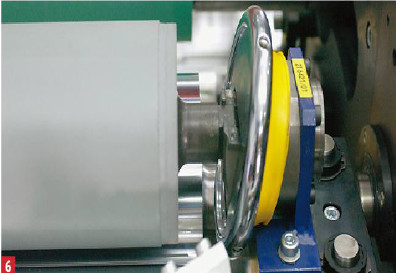

Hot knife cutting blade is suitable for all films, especially PET film,metalized films(metpet) etc..

General features:

●High efficient: Power consumption of hot knife is as low as 0.4kW.

●No tail film: knife blade temperatures rose to 400 °C within 3 seconds to ensure net and quick cutting.

●High Speed Cut: 80 meters per minute.

●High cut accuracy: Double laser self-aligning device ensures perfect cutting effect.

●High precision ceramic anilox coating roller as standard to ensure super even gluing, no glue stripes, longer roller life, anti-corrosion, glue saving(5g/sqm).

●Non-stop paper feeder system enables continuous feeding without machine stop to minimize waste film.

●Electric thermal powder-removal system ensures clean paper surface to enhance lamination quality.

●Electric glue drying system combined with heat recirculation system to guarantee quick heating to dry the glue and power saving.(30kW consumption in production)



Thermal Knife PUR Laminating Machine Dust Removal MTM-145E4 0Thermal Knife PUR Laminating Machine Dust Removal MTM-145E4 1
