Product Details:
|
| Max. Laminating Width (mm): | 1080 | Max Sheet W×L (mm): | 1080×1300 |
|---|---|---|---|
| Min Sheet W×L (mm): | 350×350 | Paper Thickness (gsm): | 100-500 |
| High Light: | 1080*1300mm Thermal Laminating Machine,Film To Sheet Thermal Laminating Machine,Thermal Laminating Machine 68kW |
||

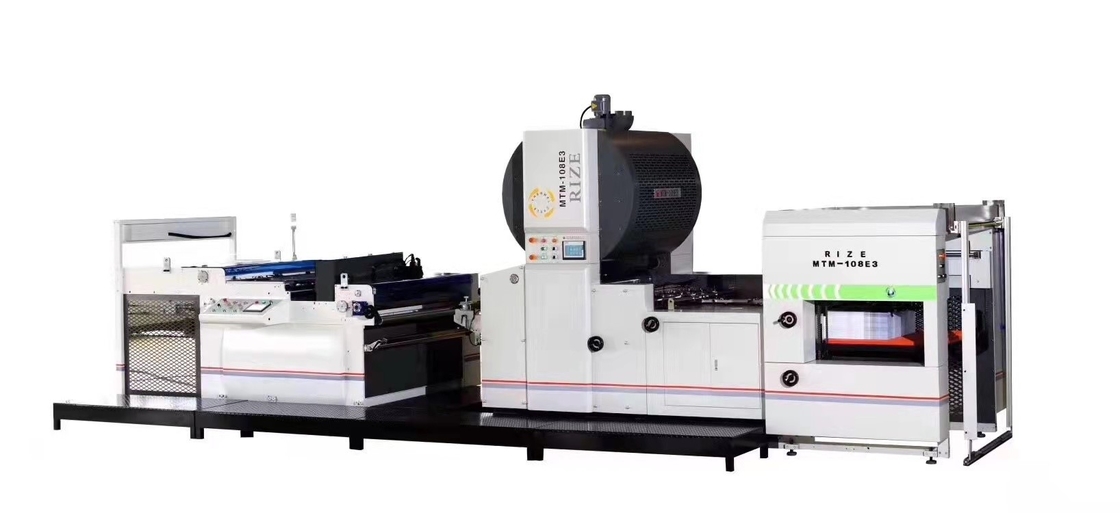

MTM-130E4 Roll Film to Sheet Laminator
MTM-E Automatic Hot Knife Film Laminator
| Description | Quantity | ||
|
Automatic Hot Knife Film Laminator 1 SET Model: MTM-130E4
|
|||
Automatic Hot Knife Film Laminator
Hot knife cutting blade is suitable for all films, especially PET film,metalized films(metpet) etc..
General features:
●High efficient: Power consumption of hot knife is as low as 0.4kW.
●No tail film: knife blade temperatures rose to 400 °C within 3 seconds to ensure net and quick cutting.
●High Speed Cut: 80 meters per minute.
●High cut accuracy: Double laser self-aligning device ensures perfect cutting effect.
●High precision ceramic anilox coating roller as standard to ensure super even gluing, no glue stripes, longer roller life, anti-corrosion, glue saving(5g/sqm).
●Non-stop paper feeder system enables continuous feeding without machine stop to minimize waste film.
●Electric thermal powder-removal system ensures clean paper surface to enhance lamination quality.
●Electric glue drying system combined with heat recirculation system to guarantee quick heating to dry the glue and power saving.(30kW consumption in production)
Specification Sheet
| MODEL | MTM-130E | MTM-145E |
|
Max. laminating width (mm)
|
1080 | 1080 |
| Max sheet W×L (mm) | 1080×1300 | 1080X1450 |
| Min sheet W×L (mm) | 350×350 | 350×350 |
| Paper thickness (gsm) | 100-500 | 100-500 |
| Film thickness (µm) | 6--25 | 6--25 |
| Machine speed (m/min) | 10-70 | 10-70 |
| Machine Dimension L*W*H (mm) | 10300*2366*2900 | 12994*2754*2926 |
| Machine weight (kgs) | 9500 | 10200 |
|
Total power (kw)
|
68kW 30kW(Production) |
68kW 30kW(Production) |
