ISO High Speed Thermal Film Laminator Machine 70m/Min

Certification
China Dongtai Dingxing Machinery Technology Co., Ltd certification
China Dongtai Dingxing Machinery Technology Co., Ltd certification
I'm Online Chat Now

ISO High Speed Thermal Film Laminator Machine 70m/Min

ISO High Speed Thermal Film Laminator Machine 70m/Min
ISO High Speed Thermal Film Laminator Machine 70m/Min ISO High Speed Thermal Film Laminator Machine 70m/Min ISO High Speed Thermal Film Laminator Machine 70m/Min ISO High Speed Thermal Film Laminator Machine 70m/Min

Large Image :  ISO High Speed Thermal Film Laminator Machine 70m/Min

Product Details:
Place of Origin: CHINA
Brand Name: MTM/DINGXING
Certification: ISO/CE
Model Number: MTM-145E4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 50000-80000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 SET/MONTH

ISO High Speed Thermal Film Laminator Machine 70m/Min

Description
Max. Laminating Width (mm): 1080 Max Sheet W×L (mm): 1080X1450
Min Sheet W×L (mm): 350×350 Paper Thickness (gsm): 100-500
High Light:

Thermal Film Laminator Machine ISO

,

Thermal Film Laminator Machine 70m/Min

,

70m/Min high speed thermal laminator

MTM-145E4 Automatic Hot Knife Film Laminator

Description Quantity

Automatic Hot Knife Film Laminator 1 SET Model: MTM-145E4

ISO High Speed Thermal Film Laminator Machine 70m/Min 0







Automatic Hot Knife Film Laminator

Hot knife cutting blade is suitable for all films, especially PET film,metalized films(metpet) etc..

General features:

●High efficient: Power consumption of hot knife is as low as 0.4kW.

●No tail film: knife blade temperatures rose to 400 °C within 3 seconds to ensure net and quick cutting.

●High Speed Cut: 80 meters per minute.

●High cut accuracy: Double laser self-aligning device ensures perfect cutting effect.

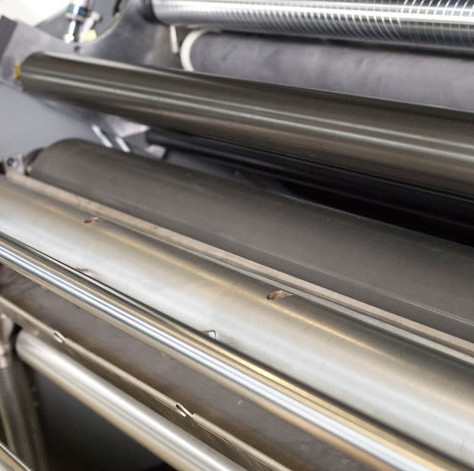

●High precision ceramic anilox coating roller as standard to ensure super even gluing, no glue stripes, longer roller life, anti-corrosion, glue saving(5g/sqm).

●Non-stop paper feeder system enables continuous feeding without machine stop to minimize waste film.

●Electric thermal powder-removal system ensures clean paper surface to enhance lamination quality.

●Electric glue drying system combined with heat recirculation system to guarantee quick heating to dry the glue and power saving.(30kW consumption in production)



Specification Sheet



MODEL MTM-108E MTM-145E

Max. laminating width (mm)



1080 1080
Max sheet W×L (mm) 1080×950 1080X1450
Min sheet W×L (mm) 350×350 350×350
Paper thickness (gsm) 100-500 100-500
Film thickness (µm) 6--25 6--25
Machine speed (m/min) 10-70 10-70
Machine Dimension L*W*H (mm) 10765*2754*2926 12994*2754*2926
Machine weight (kgs) 8600 10200

Total power (kw)



68kW

30kW(Production)

68kW

30kW(Production)
