Product Details:
|
| Automatic Grade: | Automatic | Driven Type: | Electric,Hydraulic,Mechanical |
|---|---|---|---|
| After-sales Service Provided: | Online Support,Video Technical Support | Type: | Laminating Machine And Flip Flop Machine |
| Condition: | New | Warranty: | 1 Year |
| Speed: | 60-150 Sheets/min | ||
| High Light: | 5 Ply Flute Laminator 150m/Min,5 ply flute laminator PLC Control,Back Feeder flute laminator machine |
||

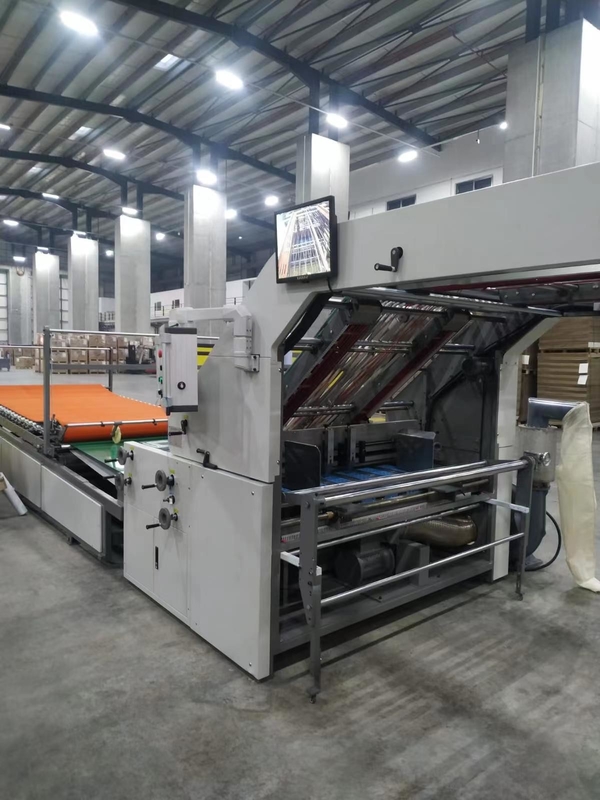

DX-1650 Back Feeder Flute Laminator
• Servo shaftless back feeder, make the top sheet feeding paper overlap, fast and efficiency.
• Dual servo bottom sheet feeder ensures smooth feeding of warping and multi-ply paperboards.
• Computerized high-speed lamination at max.speed of 12,000 sheets per hour(Paper length:600mm)

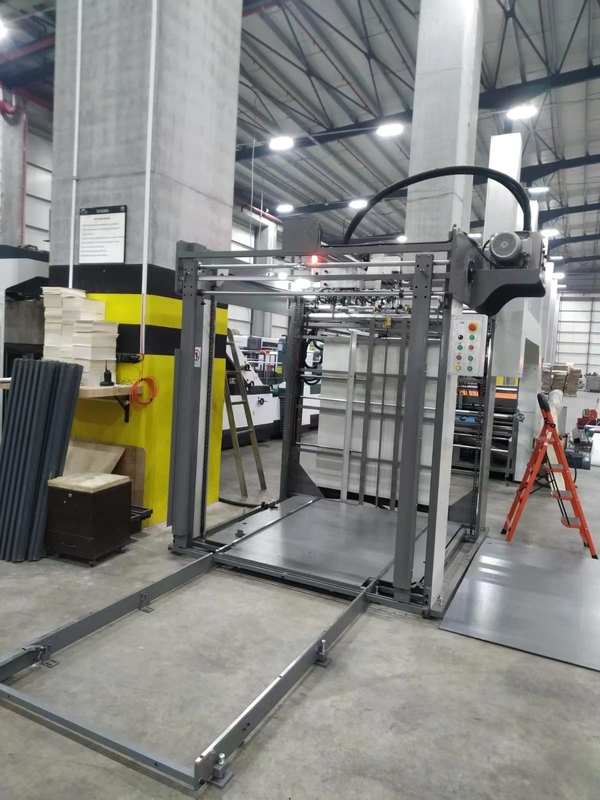

• Feeder Base: Low E-type piling table ensures direct paper feeding by pallet cart. Railway truck pre-loader is optional.

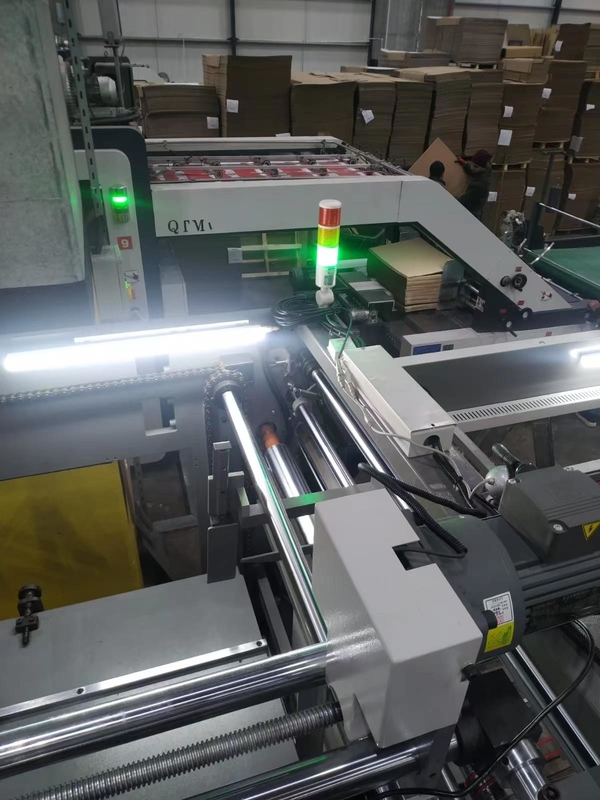

• Gluing System:High-precision gluing rollers, glue side stopper, auto glue level controller, no overflow at high speed and glue recirculation system.
• Compensation Aligning System: multiple sensors detect relative position of bottom paper,while servo motors ensure dependent upper paper delivery compensation to guarantee precise aligning of two sheets.

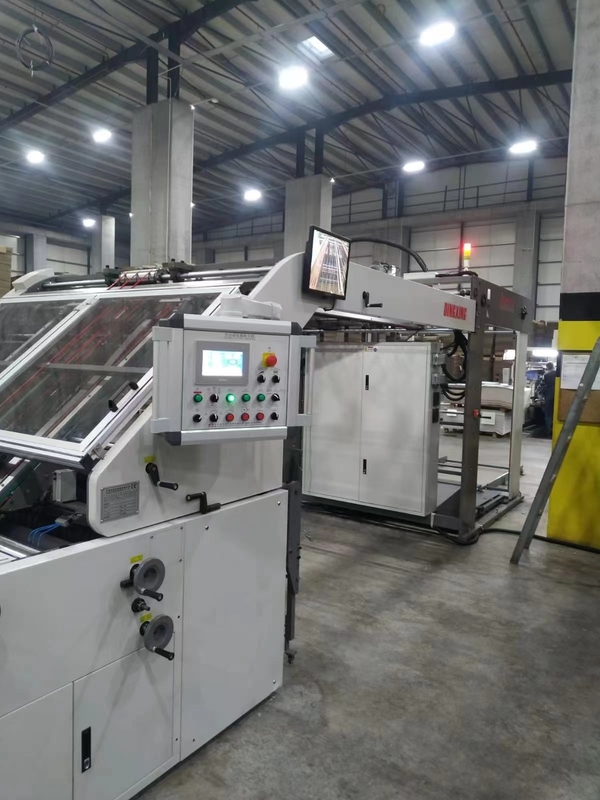

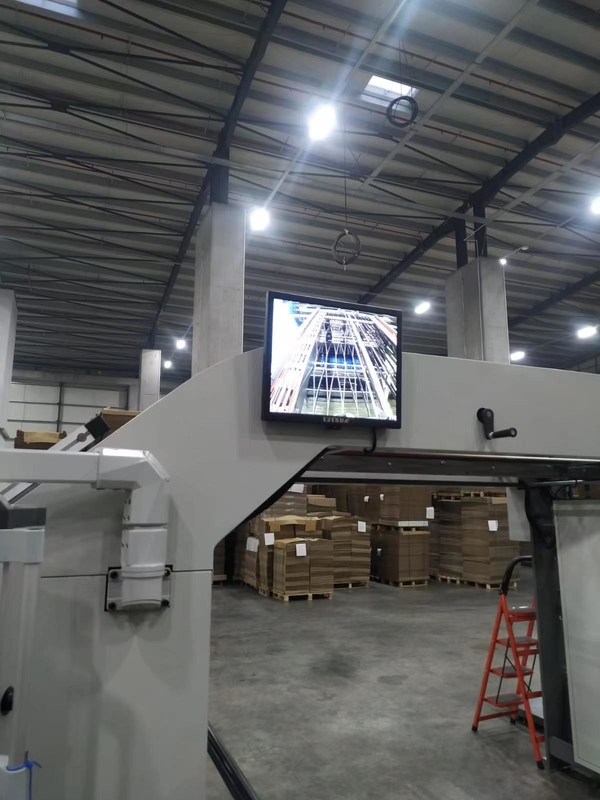

• Electrical Control System: Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition,irregularities and job record. CE certified.
| DX-1450 | DX-1650 | DX-1650XL | |
| Max. Size: | 1450mm*1450mm | 1650mm*1450mm | 1650mm*1650mm |
| Min. Size: | 400mm*450mm | 400mm*450mm | 400mm*450mm |
| Top Sheet GSM: | 120gsm—600g/㎡ | 120gsm—600g/㎡ | 120gsm—600g/㎡ |
| Bottom Sheet Thickness: | 0.5-10mm | 0.5-10mm | 0.5-10mm |
| Max. Speed: | 30~150m/min | 30~150m/min | 30~150m/min |
| Lamination Accuracy: | ±1.5mm | ±1.5mm | ±1.5mm |
| Total Weight: | 7000kgs | 7500kgs | 7500kgs |
| Machine Size: | 14056mm*2314mm*2560mm | 14056mm*2514mm*2560mm | 16525mm*2514mm*2560mm |
| Machine Power: | AC380/50HZ/26KW | AC380/50HZ/28KW | AC380/50HZ/28KW |
| Suitable Paper | Single face(flute A-G), Multi-ply(3-7) corrugated cardboard, grey paperboard, paper board over 300 GSM. | ||
