Double Wall Corrugated Flute Lamination Pasting Machine DW-1650

Double Wall Corrugated Flute Lamination Pasting Machine DW-1650
Double Wall Corrugated Flute Lamination Pasting Machine DW-1650 Double Wall Corrugated Flute Lamination Pasting Machine DW-1650 Double Wall Corrugated Flute Lamination Pasting Machine DW-1650 Double Wall Corrugated Flute Lamination Pasting Machine DW-1650

Large Image :  Double Wall Corrugated Flute Lamination Pasting Machine DW-1650

Product Details:
Place of Origin: China
Brand Name: DINGXING/DINGYI
Certification: ISO/CE
Model Number: DW-1650
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 30000-60000/SET

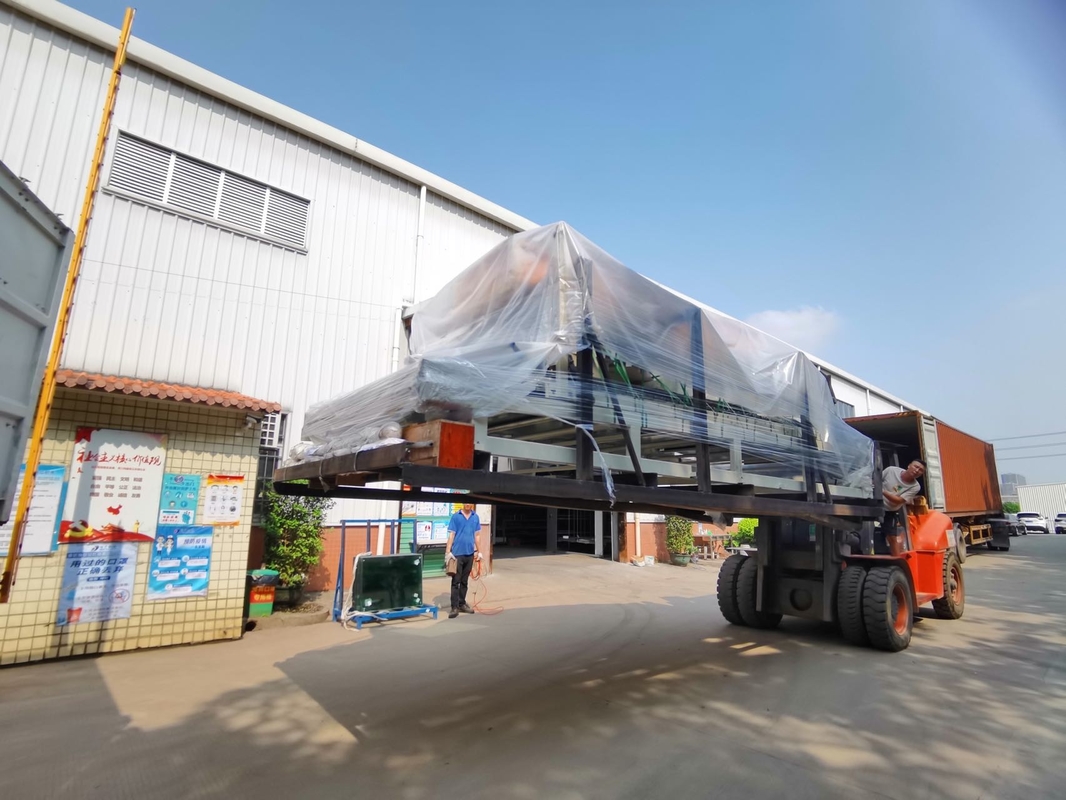

Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 60 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 SET/MONTH

Double Wall Corrugated Flute Lamination Pasting Machine DW-1650

Description
Max. Speed: 5000 Piece/Hour Top Sheet GSM: 120-600
Bottom Sheet GSM: 300-800 Lamination Accuracy: ±1.5mm
High Light:

Corrugated flute lamination pasting machine

,

Double Wall corrugated laminating machine

,

Double Wall Flute Lamination Pasting Machine

DW-1650 Double Wall Flute Laminator

Specifications:

Note: Specifications are subject to change without notice.

Model DW-1650
Max.Sheet Size(L*W, mm) 1650*1450
Min.Sheet Size(L*W, mm) 450*450
Thickness Litho 120~800gsm
Middle 300-800gsm(single flute)
Substrate

300~800gsm (Up to 10mm Thick)

A~N Single Layer/ 3/5Layers Corrugated Boards, Grey Paperboards and Cardboards

Accuracy Within ±2 mm(Subject to Paper Quality and Specifications)
Speed 0 -5000sheets/hour(Subject to Paper Quality and Specifications)
Power AC~380V(30HP)
Dimension: L*W*H(MM) 1700*2650*2600
Weight(KG) 9800



Sources of Main Parts



Name Place of Origin or Materials
  1. Main motor
Taiwan(Joint venture)
2.Lifting motor Taiwan(Joint venture)
3. Decelerator Taiwan(Joint venture)
4.Glue Pump Taiwan(Joint venture)
5.Clutch & Brake Nikka from Taiwan
6.Electrical drive Schneider from France, Fotek,Anly from Taiwan
7.Belts Japan
9. Air Blower Taiwan(Joint venture)
10.Air pump Becker
11.Servo motor Yaskawa

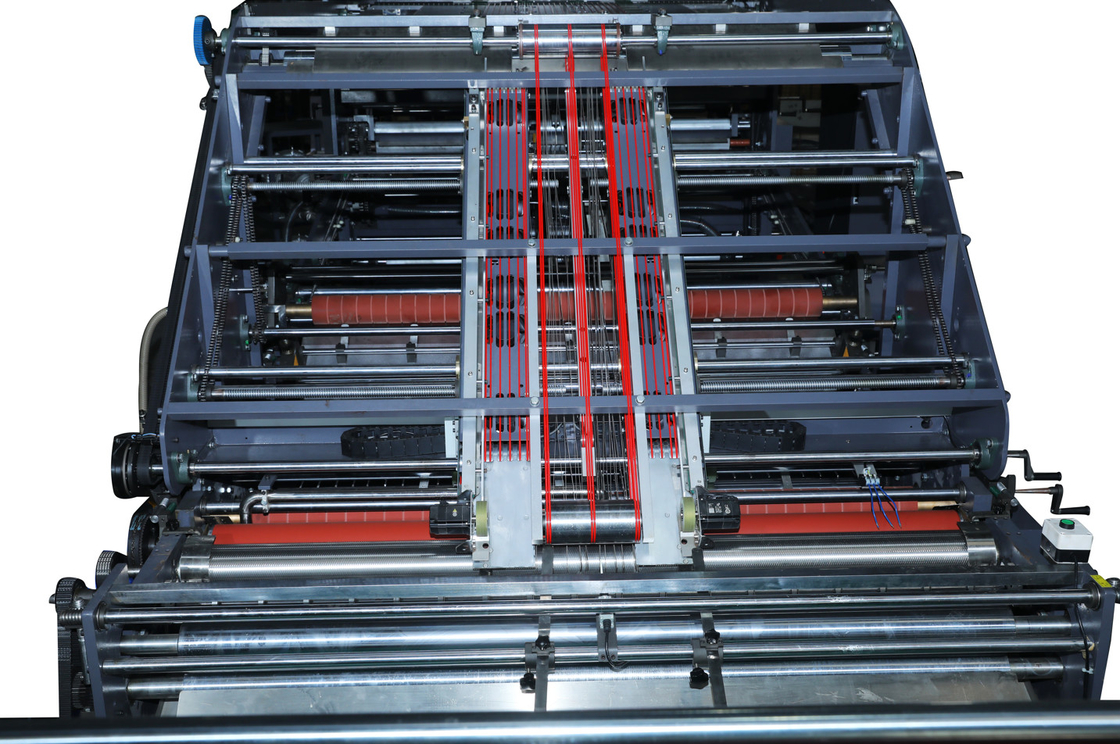

Automatic 5ply Flute Laminator is fortified model adopting two bottom feeders and one top feeder, especially suitable for laminatingtwo single flutes into 4 ply corrugated boards, also acting as a regular flute laminator to transfer thick and large -sized boards smoothly. Operation easily



Automatic Sply Flute Laminator is applied in broad scope of papers, bottom sheet from single layer/three/five layers corrugatedboards which can
be laminated easily and accurately, and total boards from 2 bottom feeders are maximum 8 layers . Servo aligning unit between top and bottom paper to guarantee better lamination precision.
