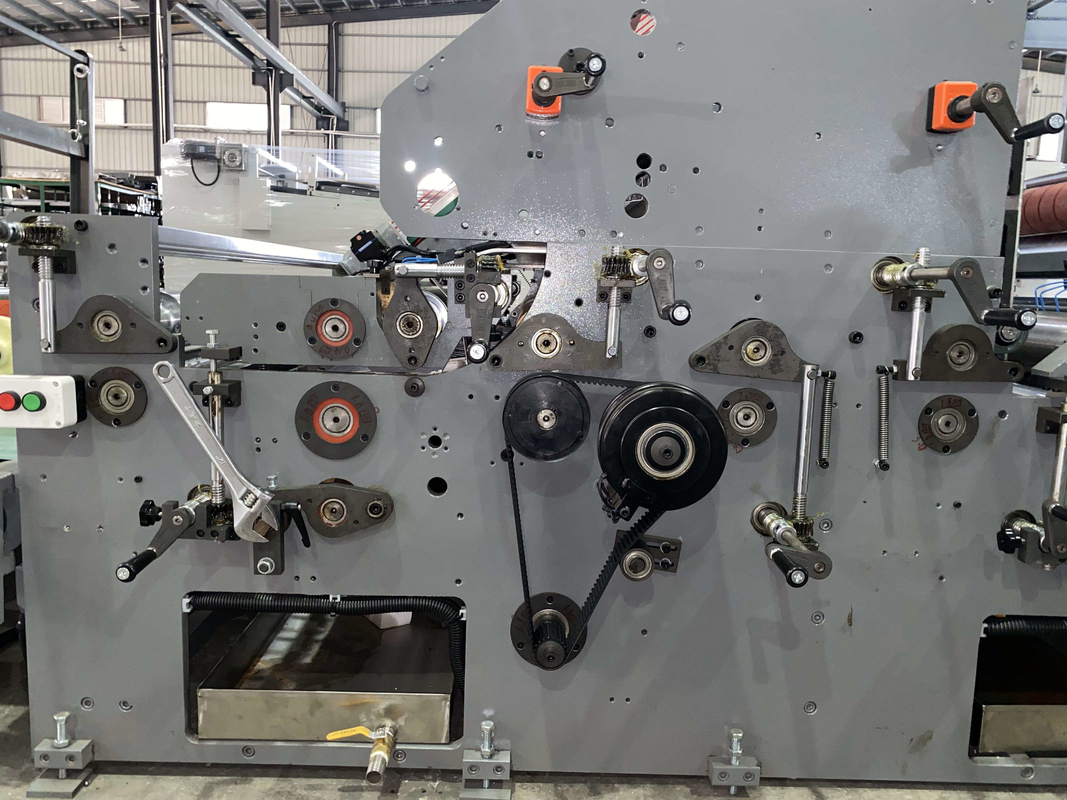

5Ply Middle Speed Flute Lamination Pasting Machine 380V 30HP

5Ply Middle Speed Flute Lamination Pasting Machine 380V 30HP
5Ply Middle Speed Flute Lamination Pasting Machine 380V 30HP 5Ply Middle Speed Flute Lamination Pasting Machine 380V 30HP 5Ply Middle Speed Flute Lamination Pasting Machine 380V 30HP 5Ply Middle Speed Flute Lamination Pasting Machine 380V 30HP

Large Image :  5Ply Middle Speed Flute Lamination Pasting Machine 380V 30HP

Product Details:
Place of Origin: China
Brand Name: DINGXING/DINGYI
Certification: ISO/CE
Model Number: DW-1650
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 40000-60000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 60 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 SET/MONTH

5Ply Middle Speed Flute Lamination Pasting Machine 380V 30HP

Description
Max. Speed: 5000 Piece/Hour Top Sheet GSM: 120-600
Bottom Sheet GSM: 300-800 Lamination Accuracy: ±1.5mm
High Light:

Middle Speed Flute Lamination Pasting Machine

,

5Ply Flute Lamination Pasting Machine

,

Flute Lamination Machine 380V

DW-1650 5Ply Middle Speed Flute Laminator

Specifications:

Note: Specifications are subject to change without notice.

Model DW-1650
Max.Sheet Size(L*W, mm) 1650*1450
Min.Sheet Size(L*W, mm) 450*450
Thickness Litho 120~800gsm
Middle 300-800gsm(single flute)
Substrate

300~800gsm (Up to 10mm Thick)

A~N Single Layer/ 3/5Layers Corrugated Boards, Grey Paperboards and Cardboards

Accuracy Within ±2 mm(Subject to Paper Quality and Specifications)
Speed 0 -5000sheets/hour(Subject to Paper Quality and Specifications)
Power AC~380V(30HP)
Dimension: L*W*H(MM) 1700*2650*2600
Weight(KG) 9800



Sources of Main Parts



Name Place of Origin or Materials
  1. Main motor
Taiwan(Joint venture)
2.Lifting motor Taiwan(Joint venture)
3. Decelerator Taiwan(Joint venture)
4.Glue Pump Taiwan(Joint venture)
5.Clutch & Brake Nikka from Taiwan
6.Electrical drive Schneider from France, Fotek,Anly from Taiwan
7.Belts Japan
9. Air Blower Taiwan(Joint venture)
10.Air pump Becker
11.Servo motor Yaskawa



Automatic 5ply Flute Laminator is fortified model adopting two bottom feeders and one top feeder, especially suitable for laminatingtwo single flutes into 4 ply corrugated boards, also acting as a regular flute laminator to transfer thick and large -sized boards smoothly. Operation easily



Automatic Sply Flute Laminator is applied in broad scope of papers, bottom sheet from single layer/three/five layers corrugatedboards which can
be laminated easily and accurately, and total boards from 2 bottom feeders are maximum 8 layers . Servo aligning unit between top and bottom paper to guarantee better lamination precision.
