Name: Touch Screen Flute Lamination Pasting Machine Two Flute One Sheet
Brand: Dongtai Dingxing Machinery Technology Co., Ltd
SKU: DW-1650
Price: 40,000.00 USD
Availability: InStock

Home > products > Flute Lamination Pasting Machine >

Touch Screen Flute Lamination Pasting Machine Two Flute One Sheet

Touch Screen Flute Lamination Pasting Machine

Two Flute One Sheet lamination machine

Touch Screen Flute Laminator machine

Place of Origin:

China

Brand Name:

DINGXING/DINGYI

Certification:

ISO/CE

Model Number:

DW-1650

Request A Quote

Touch Screen Flute Lamination Pasting Machine Two Flute One Sheet

Product Details

Max. Speed:

5000 Piece/Hour

Top Sheet GSM:

120-600

Bottom Sheet GSM:

300-800

Lamination Accuracy:

±1.5mm

Highlight:

Touch Screen Flute Lamination Pasting Machine

Two Flute One Sheet lamination machine

Touch Screen Flute Laminator machine

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 20000-60000/SET

Packaging Details

Meteorological anti-rust film and steel bottom bracket

Delivery Time

70 DAYS

Payment Terms

L/C, D/A, D/P, T/T

Supply Ability

5 SET/MONTH

5Ply Middle Speed Flute Lamination Pasting Machine 380V 30HP

Get Best Price

5000pcs/H Flute Lamination Pasting Machine Grey Paperboards Auto Flute Laminator

Get Best Price

Double Wall Corrugated Flute Lamination Pasting Machine DW-1650

Get Best Price

Back Feeder 3 Ply 5 Ply Flute Laminator Machine 150m/Min PLC Control

Get Best Price

+86 18678943457

tony@dingxingmachinery.com

86-515-85571076

Contact Now

Product Description

DW-1650 Two Flute One Sheet Laminator

Specifications:

Note: Specifications are subject to change without notice.

Model		DW-1650
Max.Sheet Size(L*W, mm)		1650*1450
Min.Sheet Size(L*W, mm)		450*450
Thickness	Litho	120~800gsm
	Middle	300-800gsm(single flute)
	Substrate	300~800gsm (Up to 10mm Thick) A~N Single Layer/ 3/5Layers Corrugated Boards, Grey Paperboards and Cardboards
Accuracy		Within ±2 mm(Subject to Paper Quality and Specifications)
Speed		0 -5000sheets/hour(Subject to Paper Quality and Specifications)
Power		AC~380V(30HP)
Dimension: LWH(MM)		170026502600
Weight(KG)		9800

Sources of Main Parts

Name	Place of Origin or Materials
Main motor	Taiwan(Joint venture)
2.Lifting motor	Taiwan(Joint venture)
3. Decelerator	Taiwan(Joint venture)
4.Glue Pump	Taiwan(Joint venture)
5.Clutch & Brake	Nikka from Taiwan
6.Electrical drive	Schneider from France, Fotek,Anly from Taiwan
7.Belts	Japan
9. Air Blower	Taiwan(Joint venture)
10.Air pump	Becker
11.Servo motor	Yaskawa

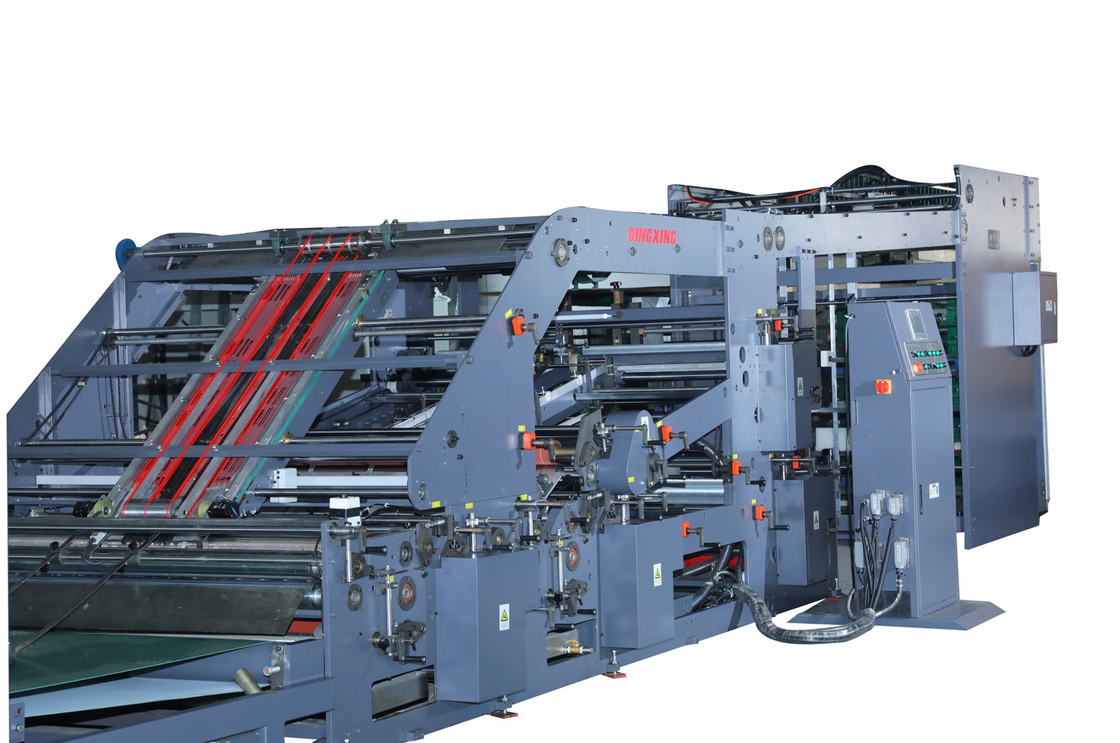

Automatic 5ply Flute Laminator is fortified model adopting two bottom feeders and one top feeder, especially suitable for laminatingtwo single flutes into 4 ply corrugated boards, also acting as a regular flute laminator to transfer thick and large -sized boards smoothly. Operation easily

Automatic Sply Flute Laminator is applied in broad scope of papers, bottom sheet from single layer/three/five layers corrugatedboards which can
be laminated easily and accurately, and total boards from 2 bottom feeders are maximum 8 layers . Servo aligning unit between top and bottom paper to guarantee better lamination precision.

Touch Screen Flute Lamination Pasting Machine Two Flute One Sheet 0
