Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width

Certification
China Dongtai Dingxing Machinery Technology Co., Ltd certification
China Dongtai Dingxing Machinery Technology Co., Ltd certification
I'm Online Chat Now

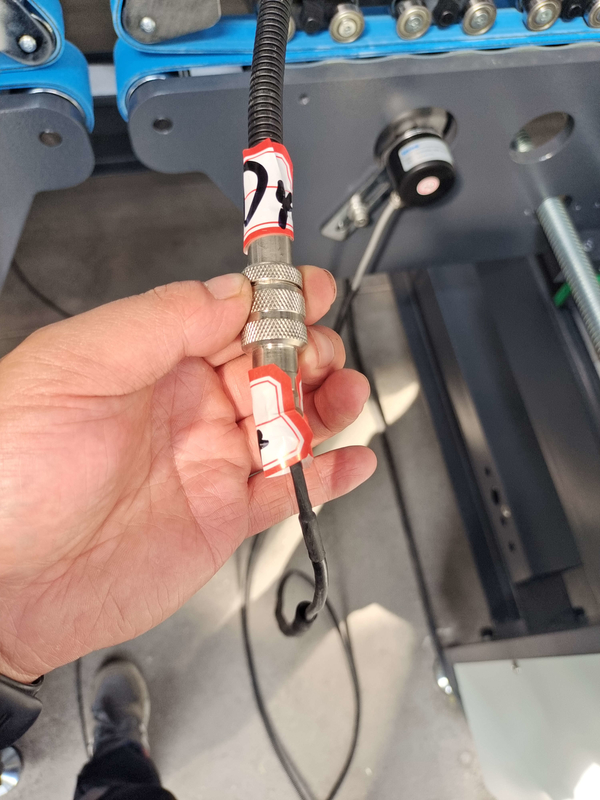

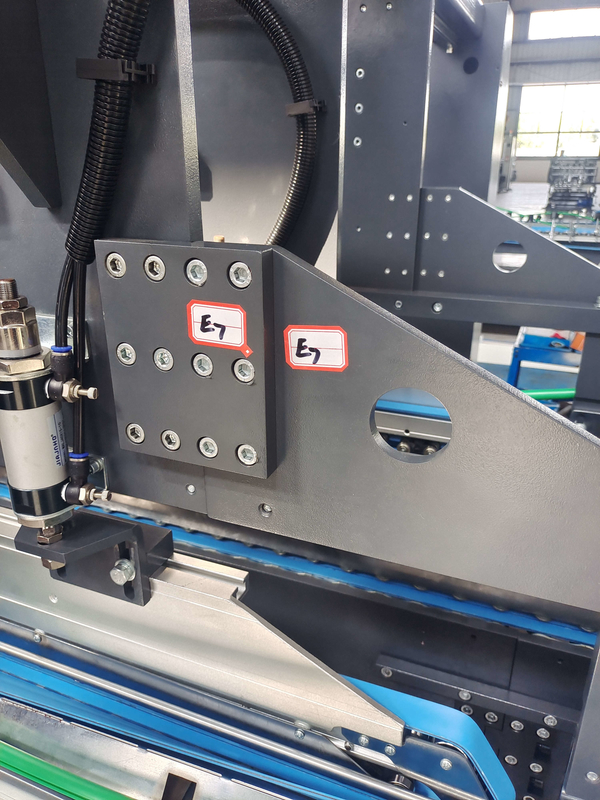

Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width

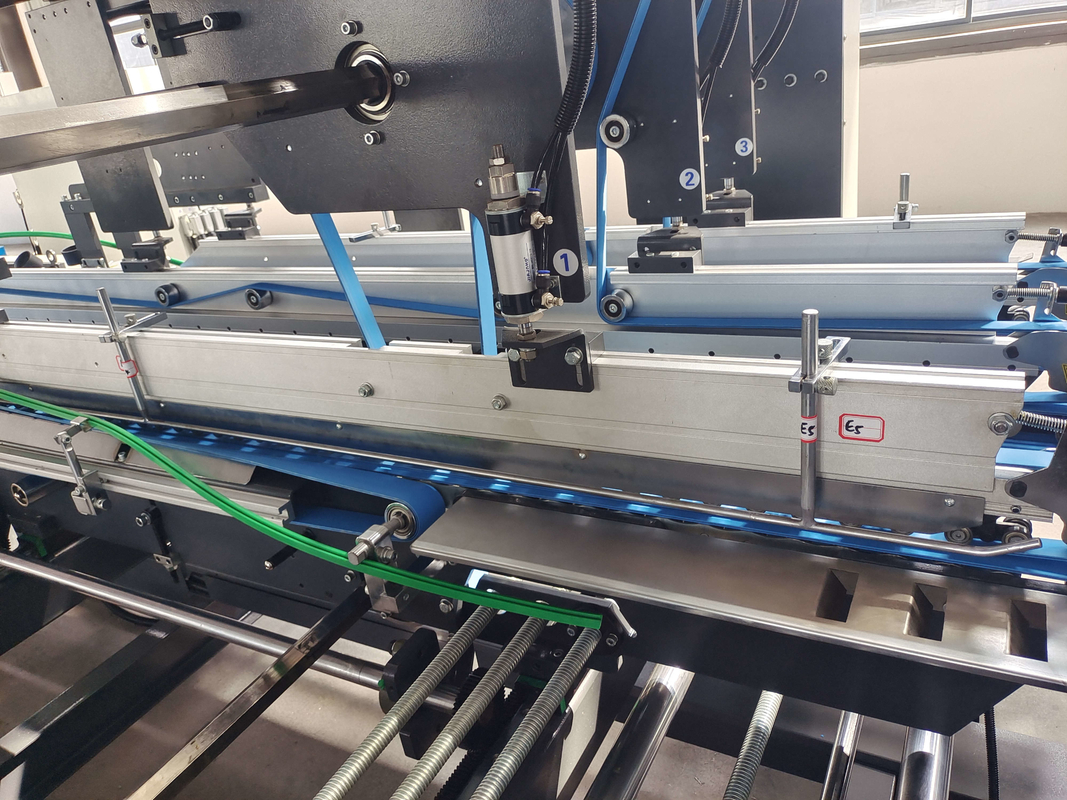

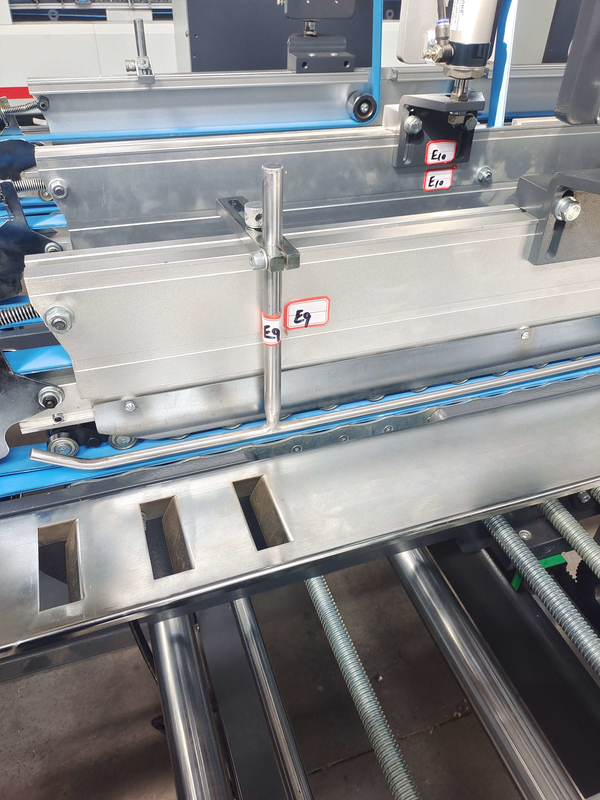

Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width
Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width

Large Image :  Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width

Product Details:
Place of Origin: CHINA
Brand Name: JINGHONG
Certification: ISO/CE
Model Number: JH-850
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 30000-80000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 60 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 SET/MONTH

Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width

Description
Box Width: 128mm-850mm Applicable Paper Quality: White Cardboard (250-800 Gsm), Cardboard To Cardboard Laminated.
Mechanical Speed: 450m/min
High Light:

850mm Box Width Folder Gluer Machine

,

Automatic Cardboard Folder Gluer Machine

,

850mm Box automatic folder gluer machine

HIGH SPEED AUTOMATIC FOLDER GLUER



JH-850-PCW



Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width 0

Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width 1



JH-850 Automatic Cardboard Folder Gluer Machine



1. Introduction

This machine adopts multi-groove belt transmission structure, low noise, stable operation and simple maintenance;

The motor of this machine adopts inverter control, automatic speed regulation, stable power saving;

The operation adopts single-sided tooth rod adjustment, which is simple and convenient (automatic adjustment by motor is optional);

The paper output adopts multiple thick belts equipped with vibration motors to ensure continuous, accurate, automatic, and paper feeding;

The segmented upper belt plate, combined with a special design, can be adjusted according to the needs of the product without tensioning the belt;

The special upper belt board structure design can effectively protect the elastic drive and avoid damage caused by improper operation;

Provide the lower glue cylinder, which adopts tooth rods to adjust the left and right sides of the glue cylinder, which is easy to operate (relevant glue spray system must be selected);

Use touch screen and PLC control system, remote control operating system, equipped with photoelectric counting, quantitative counting, equipped with automatic paper kicking device; inkjet device, more comprehensive functions;

The conveying pressure table adopts special materials, adjusts the pressure by air pressure, and is equipped with a sponge belt to ensure the perfect product;

One hex wrench can adjust all adjustment accessories, easy to operate;

This machine can produce two-fold and four-fold hook bottom cardboard and laminated packaging boxes;

This machine can add four/hex box functions.



2. Technical Parameters:

A. JH-850-PC specification:

  • Applicable paper quality: white cardboard (250-800 gsm), cardboard to cardboard laminated.
  • Paper feeding method: with suction belt correctly, automatically and continuously
  • Box width: 128mm-850mm
  • Mechanical size (L×W×H/M): 15.8×1.39×1.5
  • Glue: solute
  • Total weight (approximately): 7.5T
  • Power required: about 21KW
  • Mechanical speed: 450m/min

B. Components:

It is divided into seven modules: a feeder section, an alignment section, a pre-fold section, a gluing section, a folding forming section, a press section, and a conveyor section.





  • Feeder Section

▪ The paper feeding part has an independent motor drive system, and the paper feeding mode is synchronized with the host;

▪ Six 30mm thick paper feeding belts; 10mm metal plates are adjusted horizontally to set the width;

▪ The embossing power guide wheel guides the paper output belt; the left and right sides are equipped with baffles to adjust left and right according to product style;

▪ Equipped with three paper ejection knives for the paper section to adjust the asymmetric length according to the actual sample;

▪ The vibration device cooperates with the motor to feed paper accurately and quickly, continuously and automatically;

▪ The paper feeding section can stack paper with a height of 400MM, equipped with a dust removal device with a wool wheel to ensure smooth paper feeding;

▪The operator can control the paper feed switch in any operating area;

Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width 2



  • Alignment Section



▪ The cardboard sent by the paper feeding part can be corrected by the correction part to ensure the conveying accuracy.

▪ The upper drive pressure can be adjusted up and down to adapt to different cardboard thicknesses

Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width 3



  • Pre-fold Section:



Special design can pre-fold the first fold line 180 degrees and the third fold line 165 degrees. Make it easier to open the box;

It can be upgraded to install four/six anti-tick system (optional device).

Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width 4



  • Gluing Section



Equipped with hook bottom combination, adjustment mechanism, ideal and flexible design, quick and easy operation.

The segmented upper belt plate, combined with a special design, can be adjusted for expansion and contraction according to the needs of the product, without the need to tension the belt.

The lower glue cylinder is equipped with one on each side, the capacity is large, and it is selected according to the actual situation; the glue volume of the glue cylinder is adjustable, stable and easy to maintain; the thickness of the glue wheel provided is 4mm, and it can also be selected according to the special requirements of the customer; the glue cylinder is strong , Durable stainless steel material;

The bottom glue is completed by four sets of hook bottom devices.

The bottom belt is 30MM, the upper belt is 20MM, and the upper pressure belt plate can move up and down to adapt to different cardboard thicknesses.



Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width 5















  • Folding Forming Section





    ▪The three-plate structure

The second fold line is 180 degrees, and the fourth fold line is 180 degrees.

Special design The speed of the left and right conveying belt of the folding section can be adjusted individually to correct the traveling direction of the box blank to ensure straight conveying.

Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width 6





  • Press Section

Use photoelectric counter to automatically pick up paper and water spray dual-purpose system.

Paper jam detection device.

The adjustment of the upper and lower belts is simple and easy to operate.

The paper clap function is optional.

Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width 7



  • Conveyor Section:

The left and right two-plate mobile stack press belts can be adjusted on-line according to the stacking requirements of the product to improve production efficiency.

A special extra sponge belt is used to press the concave part of the stack of boxes.

Pneumatic pressure adjustment, easy to adjust, can effectively ensure the uniform pressure of the fit.

In automatic mode, it is linked with the host ratio to improve the stability of production stacking.

Automatic Cardboard Folder Gluer Machine 128mm-850mm Box Width 8



  1. Main parts list
No. Item Brand Origin
1 Main motor CB motor Taiwan
2 Frequency converter Inovance China
3 HMI Panel Master China
4 Synchronous belt Gates USA
5 Main drive bearing NSK/SKF Japan, Sweden
6 Main axis   Taiwan
7 Paper feeding belt NITTA Japan
8 Flat belt NITTA Japan
9 PLC Fatek Taiwan
10 Electrical components Schneider France
11 Straight track STAF Taiwan
12 Electronic inspection Sunx Japan








  1. Spare parts list
No. Item Quan. Remark
1 Operation toolbox and tools 1 Standard
2 Photoelectric counter 1 Standard
3 Kick count 1 Standard
4 Level pad 16 Standard
5 Horizontal pipe 15 meters 1 Standard
6 Computer monitor 1 Standard
7 Screws 1 Standard




OPTIONAL LIST:

  • Inspection system
  • Two heads for double-sided tape
  • Plasma double gun USD 10,000
  • Window glue



Recommend spare parts list

No. Item Quantity Unit price(USD)
1 Give paper tape 1 723
2 Synchronous belt 1 52
3 V-ribbed belt 1 1088
4 Flat belt 1 2341
5 Plastic nut 10 3
6 Sponge belt 1 142
7 emergency button 1 6
8 Hole screw 20 1
9 Square nut 20 1
10 Hook bottom piece 1 342
11 Holder 1 470
