Leading Edge Feeder Automatic Flute Laminator Machine 29KW DX-2100

Product: DX-2100 High-speed Litho Laminator

(Synchronous Servo-driven)

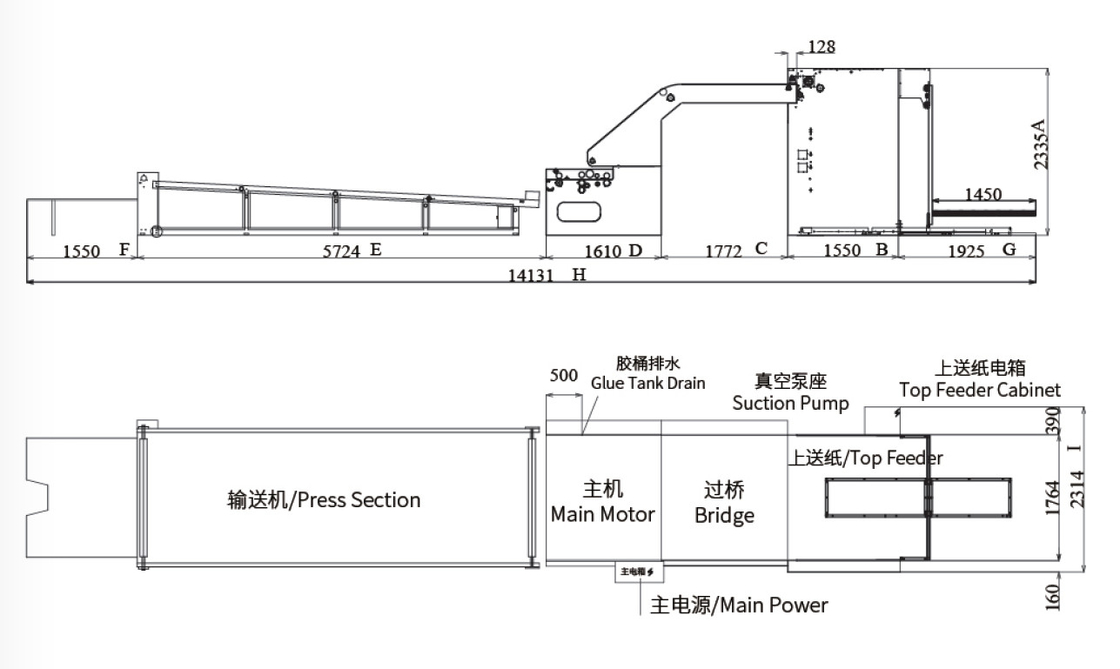

Floor:

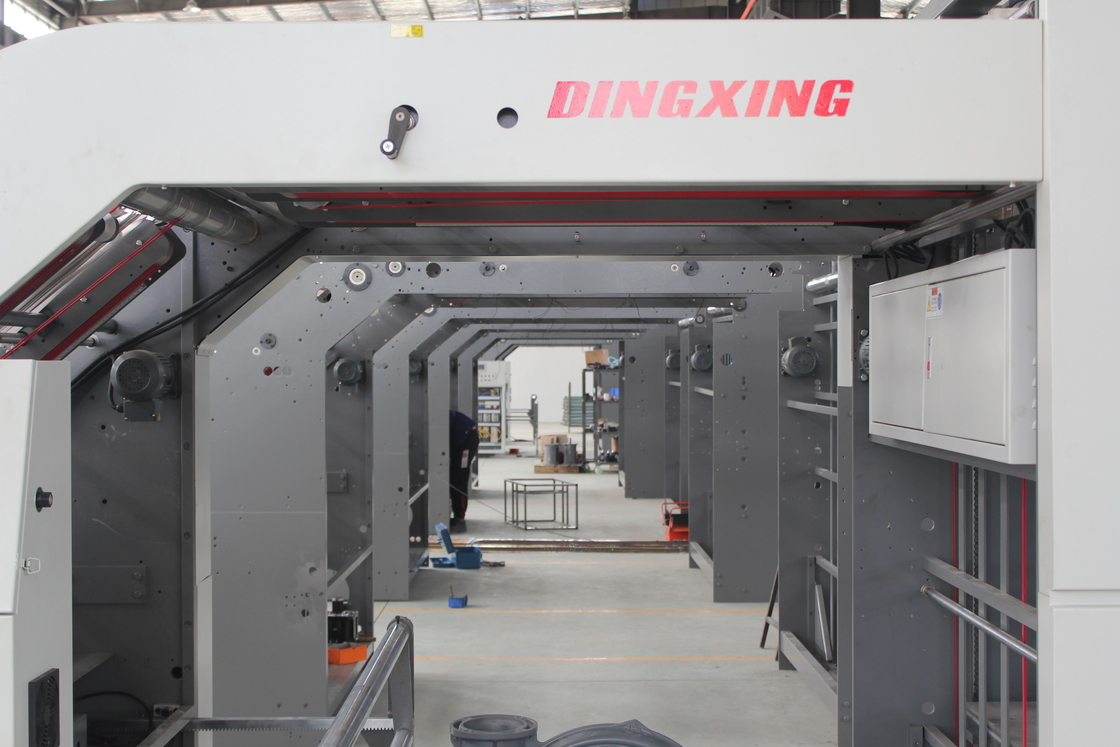

DX-2100 Leading Edge Feeder Flute Laminator

Technical Data:

**Specifications are subject to change without notice

1. Laminating tolerance. If paper quality and cut is good and precise enough, and at the speed of 9000 sheets/hour, the laminator can reach as well as 1.0mm tolerance or less.
2. The knurled stainless-steel gluing roller can guarantee the glue consumption normally ranging from 25-30gsm subject to operator’s skills and types of corrugated paper.

• Front-top leading-edge suction feeder ensures stable running at high speed.
• No extra adjustment for different sheets format, easy to operate.
• E-type paper holding plate for quick paper changeover.
• Pre-loading device by rail equipped as standard.
• Easy for pulling thin paper to lowest 100 gsm paper.

• Equipped with two Yaskawa servo motors, one is for accurate paper feeding timing, another is for controlling intermittent air suction for better bigger size paper feeding.

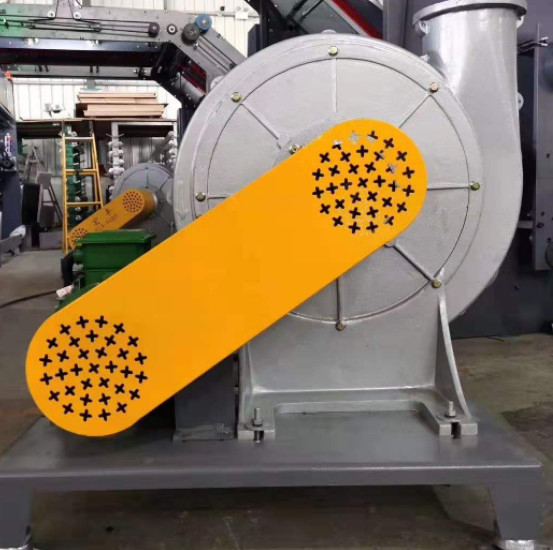

• Big air blower and separate belt holders ensure smooth feeding of 2ply,3ply,4ply, 5ply and cardboard, no vibration of belt holder.

Servo motor assembly to ensure accurate and strengthened suction

• High precise coating stainless steel roller mechanism assures even glue applied.
• Special mechanism ensures paper stripping off the gluing roller, easy to clean, dismantle and adjust
• Three sensors to control the glue volume level automatically.
• Side Glue stopper ensures no overflow at high speed and glue re-circulation at high speed.

• Multi sensors to monitor feeding position of the bottom sheets, the upper two servo motors (Japanese Yaskawa brand) adjust the top sheets synchronously to make accurate register during lamination.

Multi Power transmission evenly distributed by gears and belts combination, maintenance free, low noise, high efficiency

• Main gears for gluing rollers are made from Taiwan company.

• The laminated sheets collected by press conveyor as standard for perfect bonding.
• The conveyor speed is adjustable by one motor as per the machine speed.

Touch Screen

• Man-machine interface (Proface) with PLC touch-screen control, warning light indicator, automatic monitoring of production condition, irregularities and job record.

Control Cabinet
