Product: DX-1650 Leading Edge Feeder Litho Laminator





1650*1650mm Litho Lamination Machine 150m/Min High Speed 0



Floor:



1650*1650mm Litho Lamination Machine 150m/Min High Speed 1



Technical Data:



Model DX-1650XL
Max. Sheet Size (W*L) 1650*1650mm
Min. Sheet Size (W*L) 400*450mm
Thickness Top sheet 120~600gsm
Bottom sheet 0.5-10mm
Laminating Accuracy ±1.5mm (subject to paper cutting precision)
Max. Speed

150 m/min (Subject to board quality and specification)

e.g., around 10,000 sheets/hour at length 600mm

Power AC380/50HZ/27KW
Dimension L*W*H 16727mmx2514mmx2180mm



**Specifications are subject to change without notice



  1. Laminating tolerance. If paper quality and cut is good and precise enough, and at the speed of 9000 sheets/hour, the laminator can reach as well as 1.0mm tolerance or less.
  2. The knurled stainless-steel gluing roller can guarantee the glue consumption normally ranging from 25-30gsm subject to operator’s skills and types of corrugated paper.







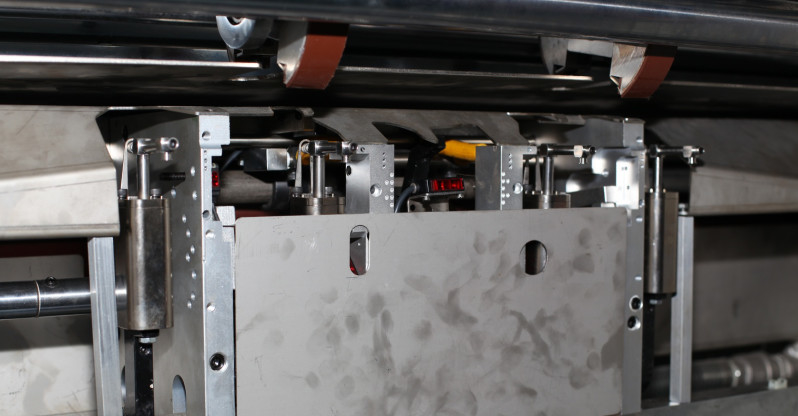

Litho Sheet Feeding Section
  • Front-top leading-edge suction feeder ensures stable running at high speed.
  • No extra adjustment for different sheets format, easy to operate.
  • E-type paper holding plate for quick paper changeover.
  • Pre-loading device by rail equipped as standard.
  • Easy for pulling thin paper to lowest 100 gsm paper.





1650*1650mm Litho Lamination Machine 150m/Min High Speed 2





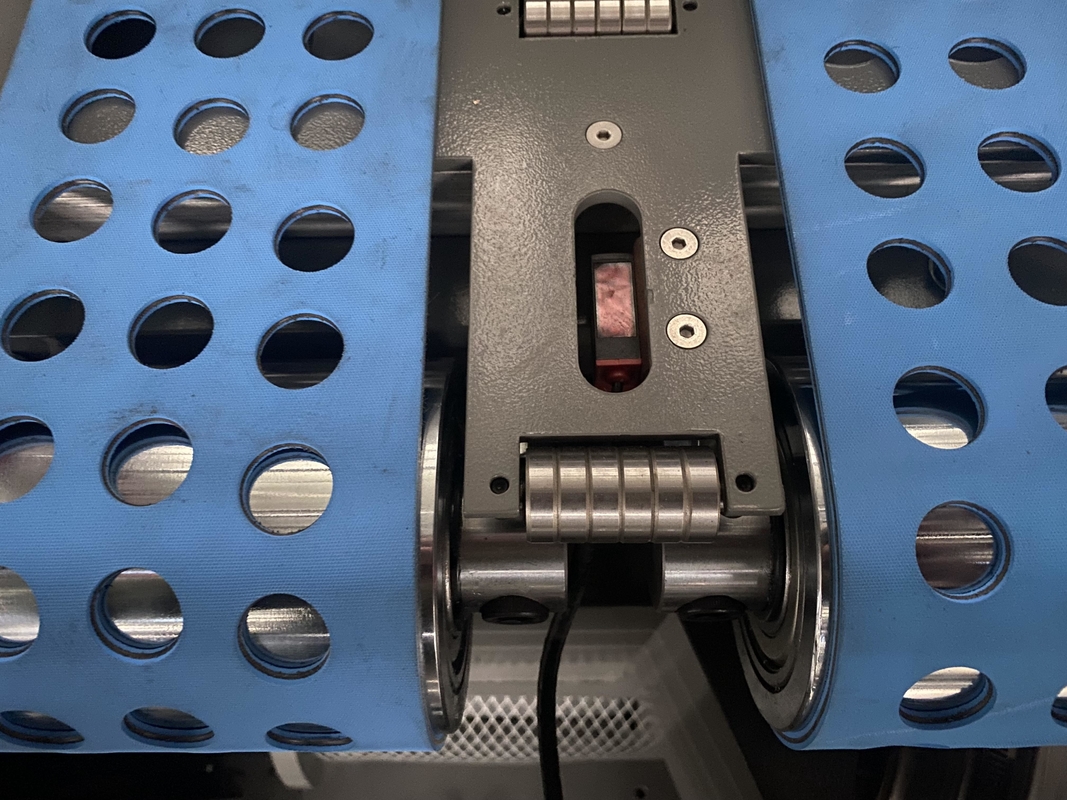

Bottom sheet feeding section
  • Equipped with two Yaskawa servo motors, one is for accurate paper feeding timing, another is for controlling intermittent air suction for better bigger size paper feeding.

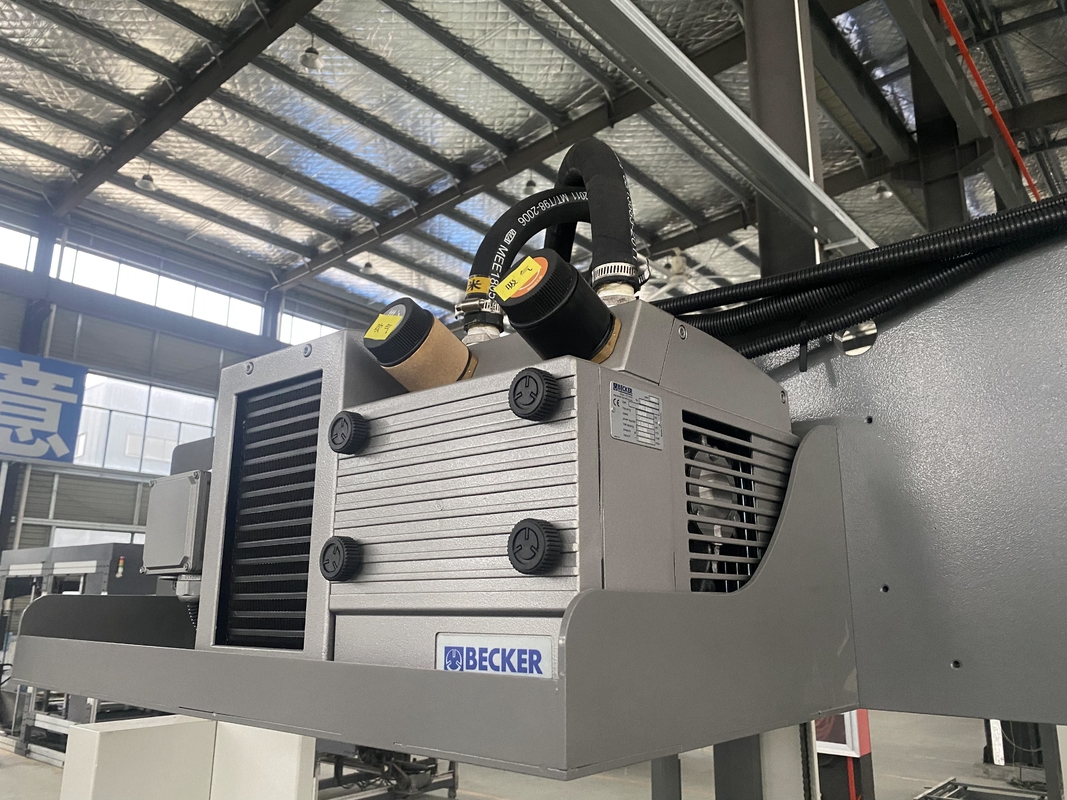

  • Big air blower and separate belt holders ensure smooth feeding of 2ply,3ply,4ply, 5ply and cardboard, no vibration of belt holder.

1650*1650mm Litho Lamination Machine 150m/Min High Speed 3



1650*1650mm Litho Lamination Machine 150m/Min High Speed 4



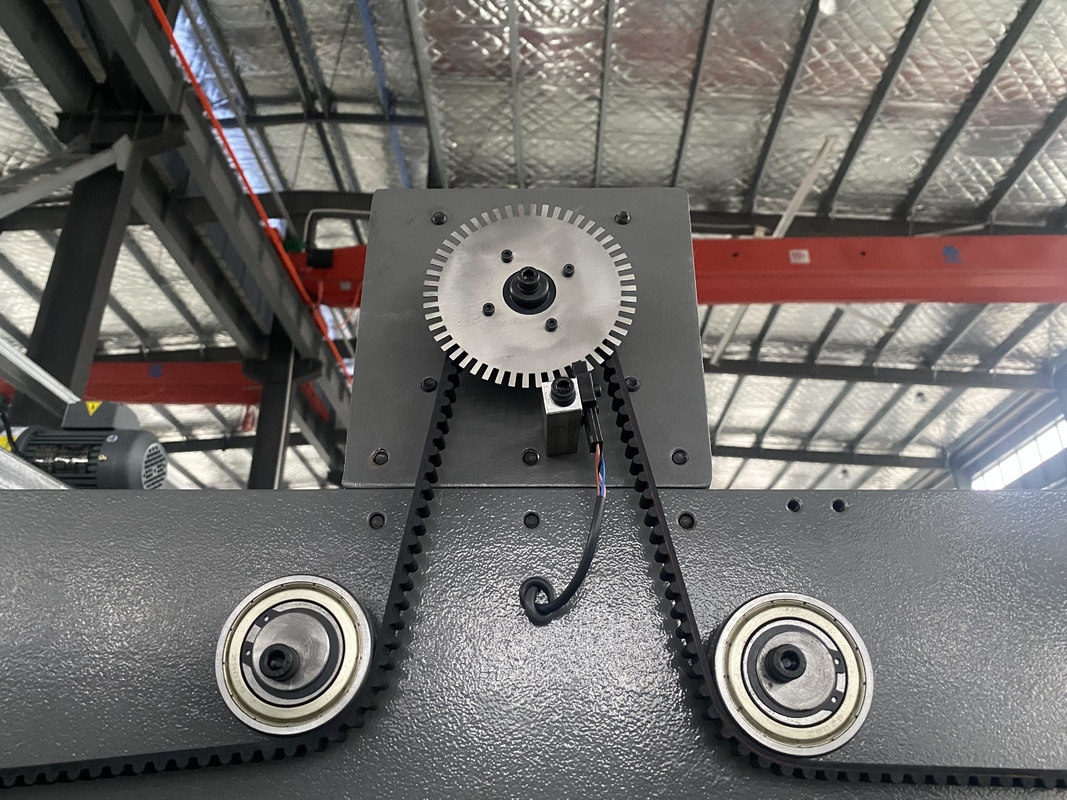

Servo motor assembly to ensure accurate and strengthened suction





1650*1650mm Litho Lamination Machine 150m/Min High Speed 5



Gluing section
  • High precise coating stainless steel roller mechanism assures even glue applied.
  • Special mechanism ensures paper stripping off the gluing roller, easy to clean, dismantle and adjust
  • Three sensors to control the glue volume level automatically.
  • Side Glue stopper ensures no overflow at high speed and glue re-circulation at high speed.

1650*1650mm Litho Lamination Machine 150m/Min High Speed 6







Register section
  • Multi sensors to monitor feeding position of the bottom sheets, the upper two servo motors (Japanese Yaskawa brand) adjust the top sheets synchronously to make accurate register during lamination.

1650*1650mm Litho Lamination Machine 150m/Min High Speed 7



Transmission system

Multi Power transmission evenly distributed by gears and belts combination, maintenance free, low noise, high efficiency

  • Main gears for gluing rollers are made from Taiwan company.

1650*1650mm Litho Lamination Machine 150m/Min High Speed 8

Pressing conveyor
  • The laminated sheets collected by press conveyor as standard for perfect bonding.
  • The conveyor speed is adjustable by one motor as per the machine speed.

1650*1650mm Litho Lamination Machine 150m/Min High Speed 9

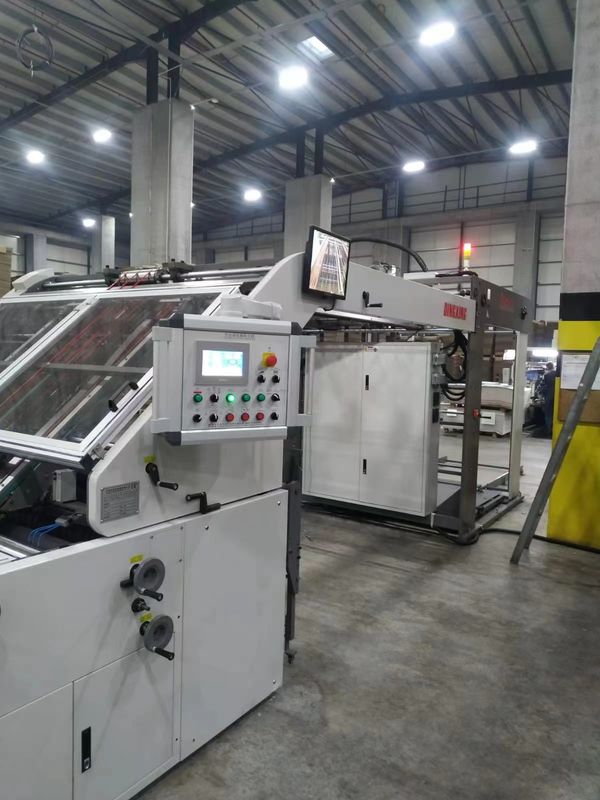

Touch Screen

  • Man-machine interface (Proface) with PLC touch-screen control, warning light indicator, automatic monitoring of production condition, irregularities and job record.

1650*1650mm Litho Lamination Machine 150m/Min High Speed 10

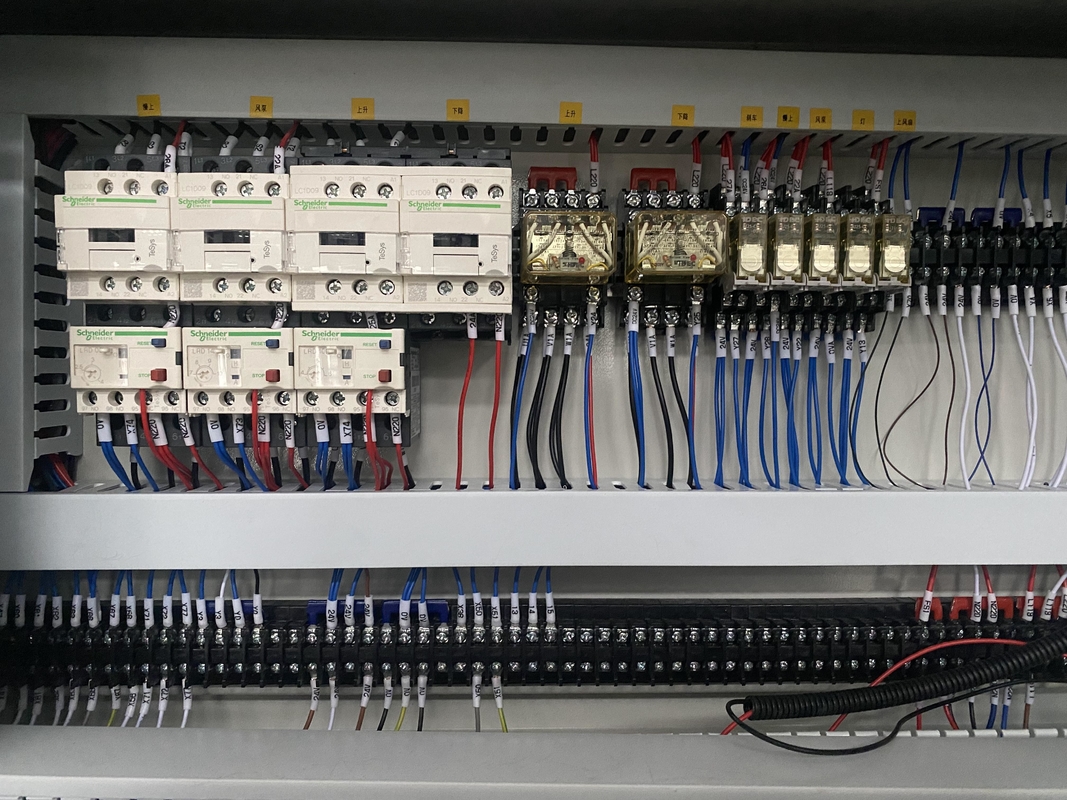

Control Cabinet



1650*1650mm Litho Lamination Machine 150m/Min High Speed 11
