Name: Multi Ply Sheet To Cardboard Flute Laminator Machine DX-1450
Brand: Dongtai Dingxing Machinery Technology Co., Ltd
SKU: DX-1450
Price: 35,000.00 USD
Availability: InStock

Home > products > Flute Laminator Machine >

Multi Ply Sheet To Cardboard Flute Laminator Machine DX-1450

Multi Ply Sheet To Cardboard laminator

Sheet To Cardboard Flute Laminator Machine

Multi Ply Flute Laminator Machine

Place of Origin:

China

Brand Name:

DINGXING/DINGYI

Certification:

ISO/CE

Model Number:

DX-1450

Request A Quote

Product Details

Max. Speed:

150m/min

Top Sheet GSM:

120-600

Bottom Sheet Thickness:

0.5mm-10mm

Lamination Accuracy:

±1mm

Highlight:

Multi Ply Sheet To Cardboard laminator

Sheet To Cardboard Flute Laminator Machine

Multi Ply Flute Laminator Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 20000-50000/SET

Packaging Details

Meteorological anti-rust film and steel bottom bracket

Delivery Time

30 DAYS

Payment Terms

L/C, D/A, D/P, T/T

Supply Ability

15 SET/MONTH

PLC Control Cardboard High Speed Flute Laminator 150m/Min

Get Best Price

300-800gsm Bottom Sheet Paperboard Flute Laminator Machine 5000 Piece /H

Get Best Price

120-600gsm Top Sheet Auto Flute Laminator 3Ply Corrugated Laminating Machine

Get Best Price

Middle Speed 1300*1100mm Auto Flute Laminator Machine DF-1300

Get Best Price

+86 18678943457

tony@dingxingmachinery.com

86-515-85571076

Contact Now

Product Description

DX-1450 Sheet to Cardboard Flute Laminator

	DX-1450	DX-1650	DX-1650XL
Max. Size:	*1450mm1450mm**	1650mm*1450mm	1650mm*1650mm
Min. Size:	*400mm450mm**	400mm*450mm	400mm*450mm
Top Sheet GSM:	120gsm—600g/㎡	120gsm—600g/㎡	120gsm—600g/㎡
Bottom Sheet Thickness:	0.5-10mm	0.5-10mm	0.5-10mm
Max. Speed:	30~150m/min	30~150m/min	30~150m/min
Lamination Accuracy:	±1.5mm	±1.5mm	±1.5mm
Total Weight:	7000kgs	7500kgs	7500kgs
Machine Size:	*14056mm2314mm2560mm*	14056mm2514mm2560mm	16525mm2514mm2560mm
Machine Power:	AC380/50HZ/26KW	AC380/50HZ/28KW	AC380/50HZ/28KW
Suitable Paper	Single face(flute A-G), Multi-ply(3-7) corrugated cardboard, grey paperboard, paper board over 300 GSM.

Multi Ply Sheet To Cardboard Flute Laminator Machine DX-1450 0

• Servo shaftless back feeder, make the top sheet feeding paper overlap, fast and efficiency.

Multi Ply Sheet To Cardboard Flute Laminator Machine DX-1450 1

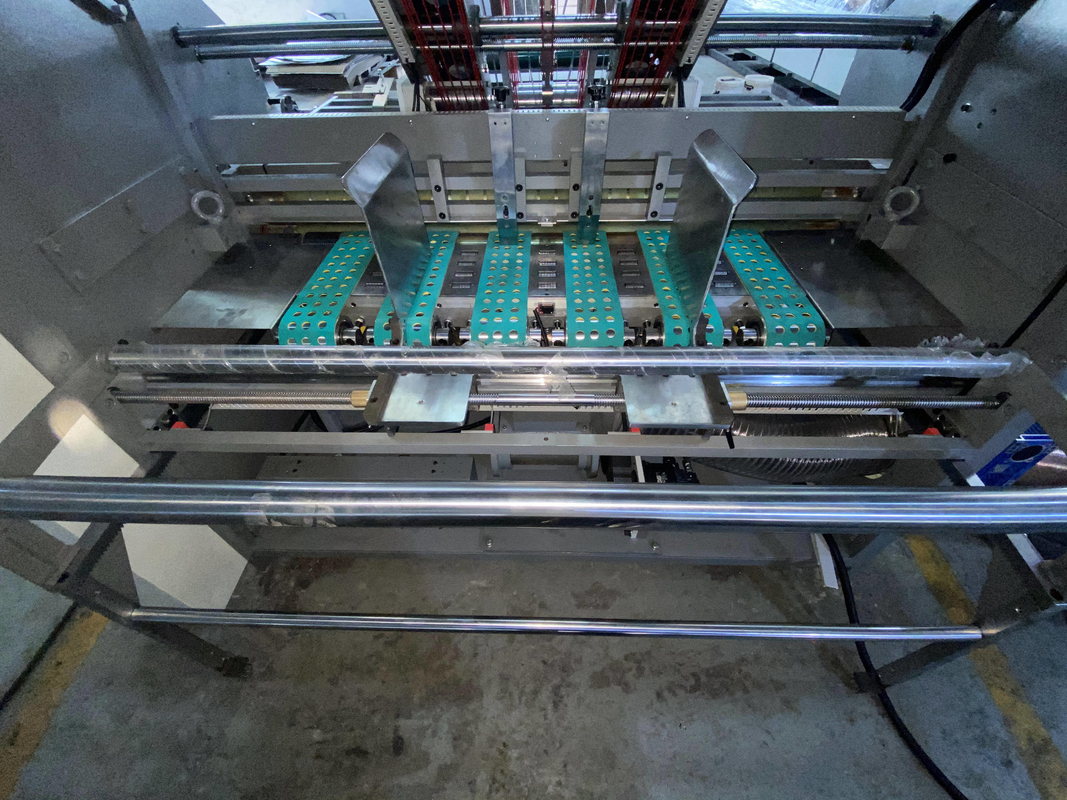

• Dual servo bottom sheet feeder ensures smooth feeding of warping and multi-ply paperboards.

Multi Ply Sheet To Cardboard Flute Laminator Machine DX-1450 2

• Computerized high-speed lamination at max.speed of 12,000 sheets per hour(Paper length:600mm)

• Feeder Base: Low E-type piling table ensures direct paper feeding by pallet cart. Railway truck pre-loader is optional.

Multi Ply Sheet To Cardboard Flute Laminator Machine DX-1450 3

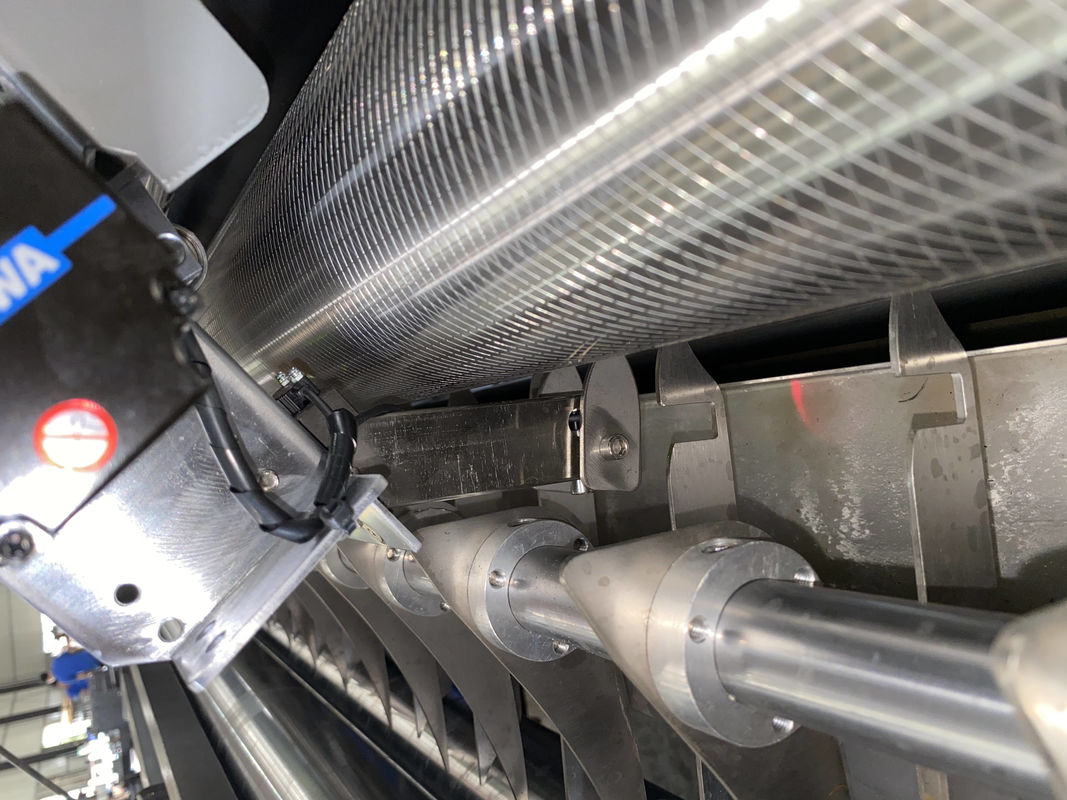

• Gluing System:High-precision gluing rollers, glue side stopper, auto glue level controller, no overflow at high speed and glue recirculation system.

Multi Ply Sheet To Cardboard Flute Laminator Machine DX-1450 4

• Compensation Aligning System: multiple sensors detect relative position of bottom paper,while servo motors ensure dependent upper paper delivery compensation to guarantee precise aligning of two sheets.

Multi Ply Sheet To Cardboard Flute Laminator Machine DX-1450 5

• Electrical Control System: Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition,irregularities and job record. CE certified. Multi Ply Sheet To Cardboard Flute Laminator Machine DX-1450 7
