10000pcs/H Front Feeder Litho Flute Laminator Machine Synchronous Servo Driven

Description
Max. Speed: 10000 Piece/Hour Top Sheet GSM: 120-600
Bottom Sheet Thickness: 0.5mm-10mm Lamination Accuracy: ±1mm
High Light:

Front Feeder Flute Laminator Machine

,

10000pcs/H Litho Flute Laminator Machine

,

Synchronous Servo driven Litho Laminator

Product: DX-2100 High-speed Litho Laminator

(Synchronous Servo-driven)



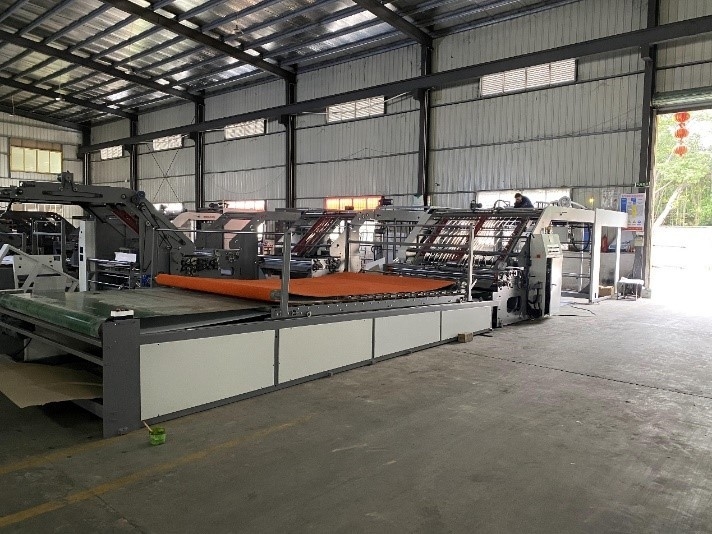

10000pcs/H Front Feeder Litho Flute Laminator Machine Synchronous Servo Driven 0

DX-2100 Front Feeder Flute Laminator







Technical Data:



Model DX-2100
Max. Sheet Size (W*L) 2100*2100mm
Min. Sheet Size (W*L) 500*450mm
Thickness Top sheet 120~600gsm
Bottom sheet 0.5-10mm
Laminating Accuracy ±1mm (subject to paper cutting precision)
Max. Speed

150 m/min (Subject to board quality and specification)

e.g., around 10,000 sheets/hour at length 600mm

Power AC380/50HZ/29KW
Dimension L*W*H 17607mmx2964mmx2180mm





**Specifications are subject to change without notice



  1. Laminating tolerance. If paper quality and cut is good and precise enough, and at the speed of 9000 sheets/hour, the laminator can reach as well as 1.0mm tolerance or less.
  2. The knurled stainless-steel gluing roller can guarantee the glue consumption normally ranging from 25-30gsm subject to operator’s skills and types of corrugated paper.







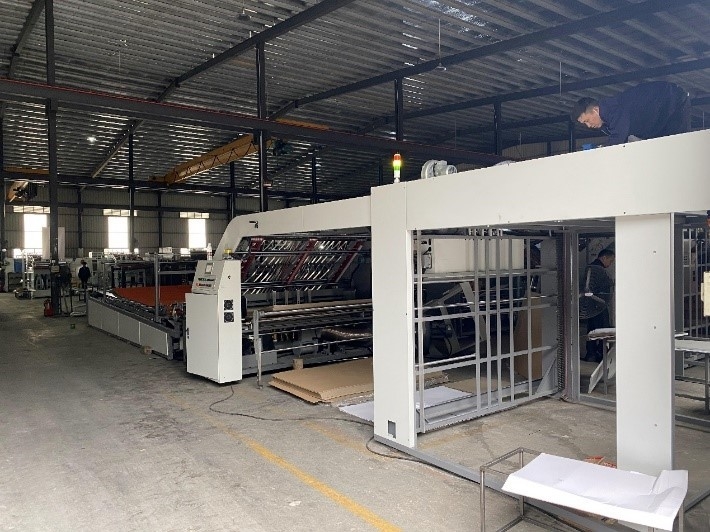

Litho Sheet Feeding Section
  • Front-top leading-edge suction feeder ensures stable running at high speed.
  • No extra adjustment for different sheets format, easy to operate.
  • E-type paper holding plate for quick paper changeover.
  • Pre-loading device by rail equipped as standard.
  • Easy for pulling thin paper to lowest 100 gsm paper.





10000pcs/H Front Feeder Litho Flute Laminator Machine Synchronous Servo Driven 1





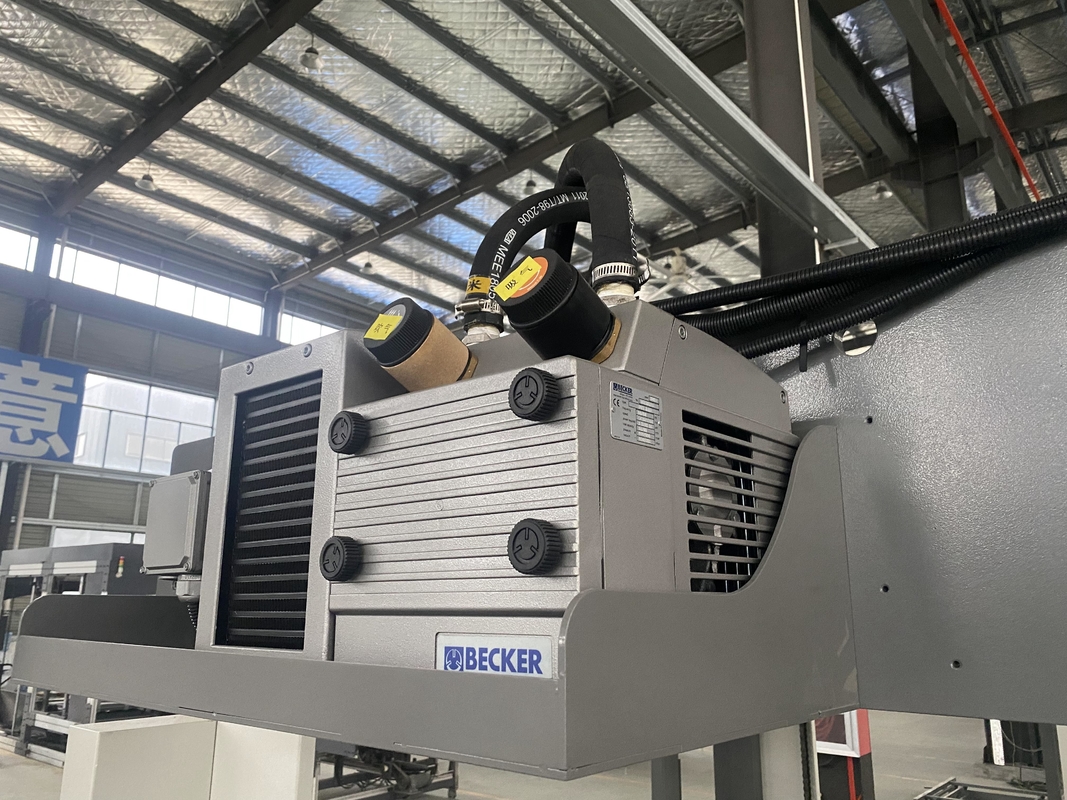

Bottom sheet feeding section
  • Equipped with two Yaskawa servo motors, one is for accurate paper feeding timing, another is for controlling intermittent air suction for better bigger size paper feeding.
  • Big air blower and separate belt holders ensure smooth feeding of 2ply,3ply,4ply, 5ply and cardboard, no vibration of belt holder.

10000pcs/H Front Feeder Litho Flute Laminator Machine Synchronous Servo Driven 2



Servo motor assembly to ensure accurate and strengthened suction





10000pcs/H Front Feeder Litho Flute Laminator Machine Synchronous Servo Driven 3



Gluing section
  • High precise coating stainless steel roller mechanism assures even glue applied.
  • Special mechanism ensures paper stripping off the gluing roller, easy to clean, dismantle and adjust
  • Three sensors to control the glue volume level automatically.
  • Side Glue stopper ensures no overflow at high speed and glue re-circulation at high speed.

10000pcs/H Front Feeder Litho Flute Laminator Machine Synchronous Servo Driven 4







Register section
  • Multi sensors to monitor feeding position of the bottom sheets, the upper two servo motors (Japanese Yaskawa brand) adjust the top sheets synchronously to make accurate register during lamination.

10000pcs/H Front Feeder Litho Flute Laminator Machine Synchronous Servo Driven 5



Transmission system

Multi Power transmission evenly distributed by gears and belts combination, maintenance free, low noise, high efficiency

  • Main gears for gluing rollers are made from Taiwan company.

10000pcs/H Front Feeder Litho Flute Laminator Machine Synchronous Servo Driven 6

Pressing conveyor

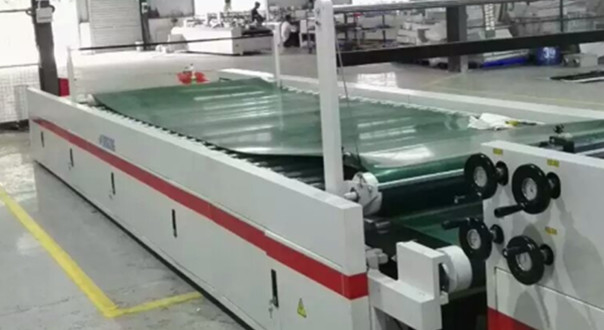

  • The laminated sheets collected by press conveyor as standard for perfect bonding.
  • The conveyor speed is adjustable by one motor as per the machine speed.

10000pcs/H Front Feeder Litho Flute Laminator Machine Synchronous Servo Driven 7





Touch Screen

  • Man-machine interface (Proface) with PLC touch-screen control, warning light indicator, automatic monitoring of production condition, irregularities and job record.

10000pcs/H Front Feeder Litho Flute Laminator Machine Synchronous Servo Driven 8



Control Cabinet



10000pcs/H Front Feeder Litho Flute Laminator Machine Synchronous Servo Driven 9
