Touch Screen Carton Corrugated Box Folder Gluer PLC Control

Certification
China Dongtai Dingxing Machinery Technology Co., Ltd certification
China Dongtai Dingxing Machinery Technology Co., Ltd certification
I'm Online Chat Now

Touch Screen Carton Corrugated Box Folder Gluer PLC Control

Touch Screen Carton Corrugated Box Folder Gluer PLC Control
Touch Screen Carton Corrugated Box Folder Gluer PLC Control Touch Screen Carton Corrugated Box Folder Gluer PLC Control Touch Screen Carton Corrugated Box Folder Gluer PLC Control Touch Screen Carton Corrugated Box Folder Gluer PLC Control

Large Image :  Touch Screen Carton Corrugated Box Folder Gluer PLC Control

Product Details:
Place of Origin: CHINA
Brand Name: JINGHONG
Certification: ISO/CE
Model Number: JH-1100J
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 100000-240000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 60 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2 SET/MONTH

Touch Screen Carton Corrugated Box Folder Gluer PLC Control

Description
Max. Size: 1100mm-900mm Applicable Paper Quality: White Cardboard (350-800 Gsm), Laminated E, C.B.A. Corrugated Cardboard
Total Power: 33.5KW Color: Customized
High Light:

Touch Screen carton folder gluer

,

Corrugated Box Folder Gluer PLC Control

,

PLC Control carton folder gluer

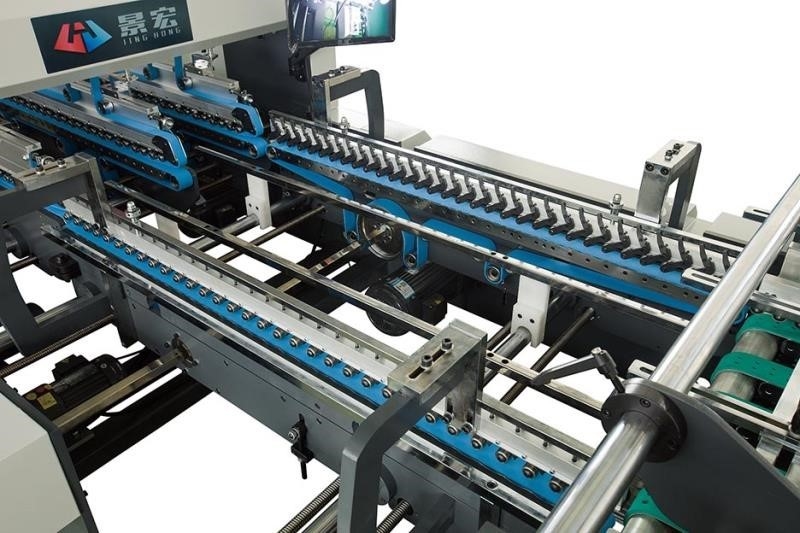

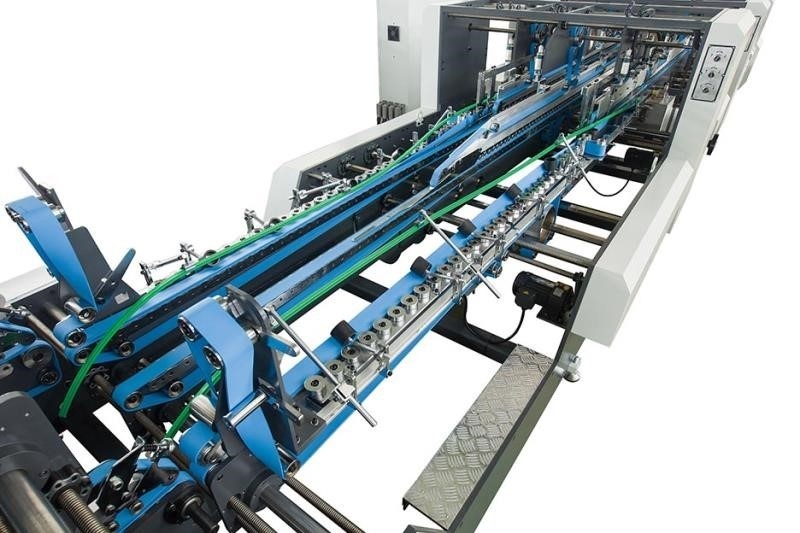

JH-1100-J High Speed Automatic Folder Gluer Inline with Scanner



Introduction

This machine adopts multi-groove belt transmission structure, low noise, stable operation, and simple maintenance;

The motor of this machine adopts inverter control, automatic speed regulation, stable power saving;

The operation adopts single-sided tooth rod adjustment, which is simple and convenient (automatic adjustment by motor is optional);

The paper output adopts multiple thick belts equipped with vibration motors to ensure continuous, accurate, automatic, and paper feeding;

The segmented upper belt plate, combined with a special design, can be adjusted according to the needs of the product without tensioning the belt;

The special upper belt board structure design can effectively protect the elastic drive and avoid damage caused by improper operation;

Provide the lower glue cylinder, which adopts tooth rods to adjust the left and right sides of the glue cylinder, which is easy to operate (relevant glue spray system must be selected);

Use touch screen and PLC control system, remote control operating system, equipped with photoelectric counting, quantitative counting, equipped with automatic paper kicking device; inkjet device, more comprehensive functions;

The conveying pressure table adopts special materials, adjusts the pressure by air pressure, and is equipped with a sponge belt to ensure the perfect product;

One hex wrench can adjust all adjustment accessories, easy to operate;

This machine can produce two-fold and four-fold hook bottom cardboard and laminated packaging boxes;

This machine can add four/hex box functions.





Touch Screen Carton Corrugated Box Folder Gluer PLC Control 0Touch Screen Carton Corrugated Box Folder Gluer PLC Control 1Touch Screen Carton Corrugated Box Folder Gluer PLC Control 2Touch Screen Carton Corrugated Box Folder Gluer PLC Control 3Touch Screen Carton Corrugated Box Folder Gluer PLC Control 4Touch Screen Carton Corrugated Box Folder Gluer PLC Control 5
