9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650

9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650
9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650 9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650 9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650 9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650

Large Image :  9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650

Product Details:
Place of Origin: China
Brand Name: DINGXING/DINGYI
Certification: ISO/CE
Model Number: FZ-1650
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 15000-40000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 20 Set/Month

9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650

Description
Max. Working Size: 1650mm*1450mm Min. Working Size: 600mm*600mm
Max. Speed: 10000 Piece/Hour Automation: Aotumatic Stacker Out And Pallet Change
High Light:

9KW Auto Stacker Machine

,

Laminated Sheets Auto Stacker Machine

,

Collecting Sheets Auto Stacker Machine

FZ-1650 Auto Flip Flop Stacker

9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650 0



9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650 1

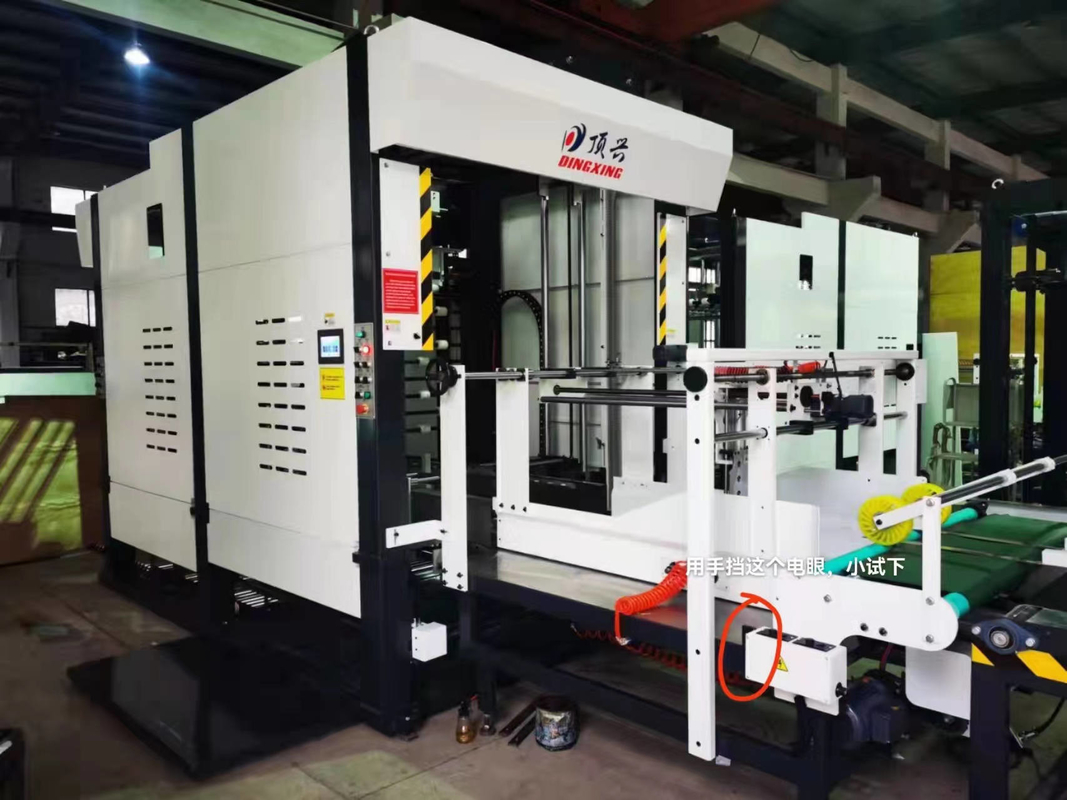

Automatic Flip Flop Stacker

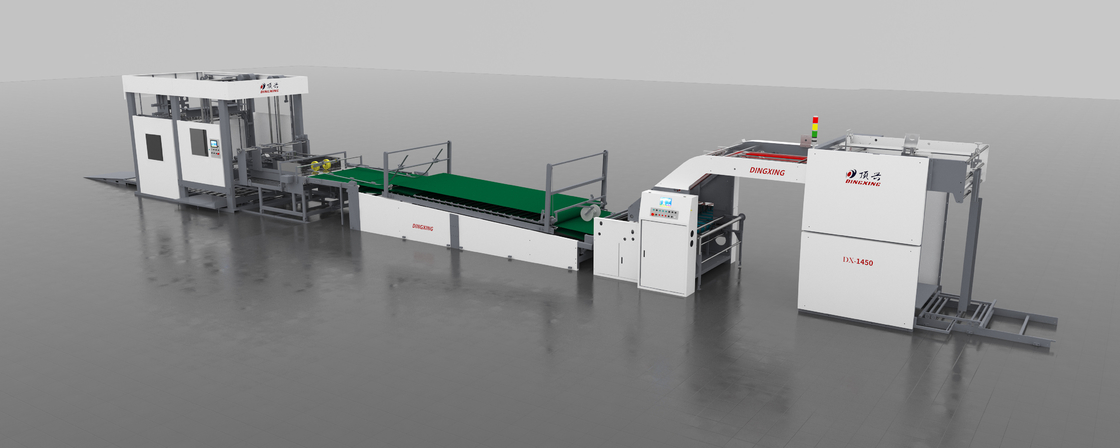

In order to achieve best efficiency for High Speed Laminator, this flip flop stacker is to track the speed of the laminator and collect laminated sheets in piles neatly and automatically, and be integrated into one production line with flute laminator to increase efficiency.



Description:



1, Integrated with flute laminator to ensure automatic collection, stacking of laminated sheets.

2,Fully intermittent turning, flip-flop stacking sheets into an organised and smooth piling.

3, Stacked by one pile of up and one pile of down or two piles up and two piles down subject to paper thickness and job request.

4.Automatic paper pile height setting.

5.Touch screen operation, user-friendly and easy to run.

6 Time-saving, labor-saving and production efficient.

7. Max speed is 10000 sheets per hour.

9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650 2



Specifications:

Model FZ-1650
Max. Sheet Size 1650(W)*1450(L)(mm)
Min. Sheet Size 600(W)*600(L)(mm)
Max. Speed 6000-1000Sheets/hour (Subject to paper quality and size)
Total Power Required 9 KW

Specifications are subject to change without notice

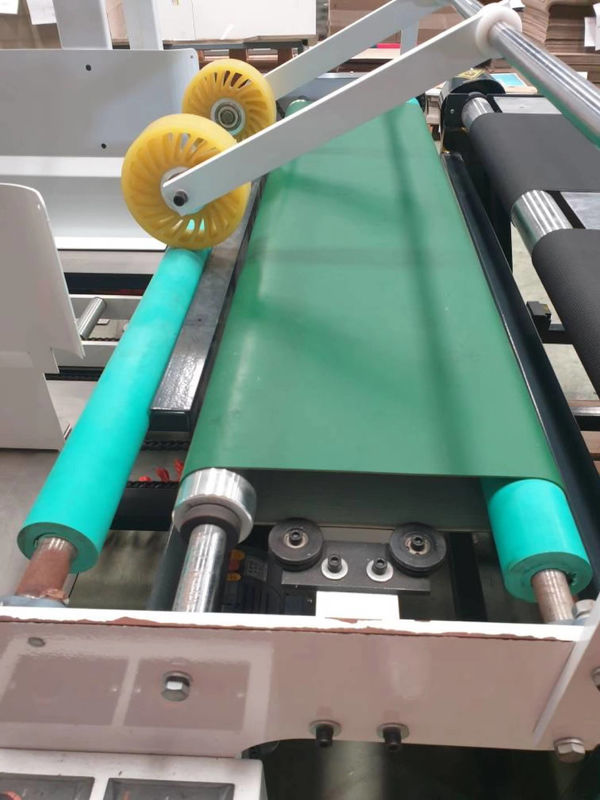

Laminated Sheets Separation System

Main purpose is to separate the heavily overlapped sheets from pressing conveyor of laminator and deliver laminated sheets to paper collection system



9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650 3





Pre-stack System

Pre-stack system is to collect with laminated sheets separation system, and stack one pile of sheets neatly and deliver to flip flop system. Stack height is adjustable by entering number of sheets into HMI and paper push is driven by motor



9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650 4



Touch Screen (HMI)

To enter paper size, paper quantity and start the machine running.

9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650 5





Paper Flip Flop System



9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650 6

9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650 7



Paper Loosening System



9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650 8

Paper Lifting System



Paper lifting system is driven by Innovance servo motor



9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650 9





Paper Collecting System

9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650 10

Paper Delivery System

9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650 11



Control Cabinet

9KW Auto Stacker Machine Collecting Laminated Sheets FZ-1650 12
