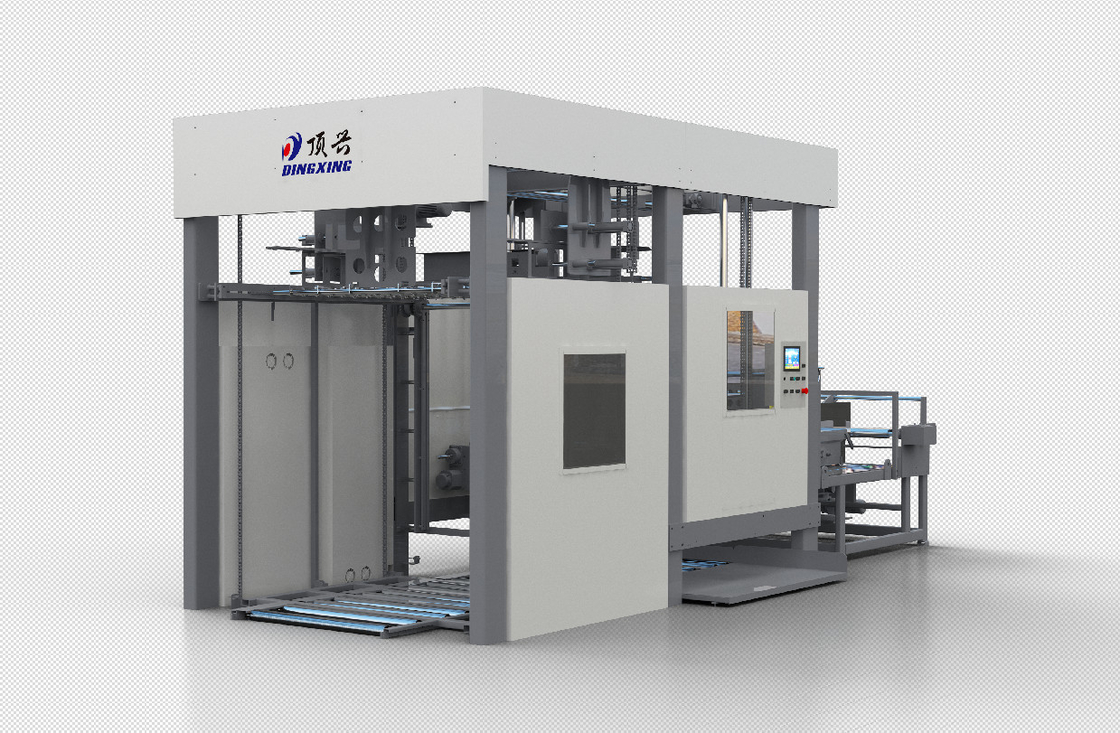

FZ-2100L Auto Flip Flop Stacker
Automatic Flip Flop Stacker
In order to achieve best efficiency for High Speed Laminator, this flip flop stacker is to track the speed of the laminator and collect laminated sheets in piles neatly and automatically, and be integrated into one production line with flute laminator to increase efficiency.
Description:
1, Integrated with flute laminator to ensure automatic collection, stacking of laminated sheets.
2,Fully intermittent turning, flip-flop stacking sheets into an organised and smooth piling.
3, Stacked by one pile of up and one pile of down or two piles up and two piles down subject to paper thickness and job request.
4.Automatic paper pile height setting.
5.Touch screen operation, user-friendly and easy to run.
6 Time-saving, labor-saving and production efficient.
7. Max speed is 10000 sheets per hour.
Specifications:
| Model |
FZ-2100L |
| Max. Sheet Size |
2100(W)*2100(L)(mm) |
| Min. Sheet Size |
600(W)*600(L)(mm) |
| Max. Speed |
6000-1000Sheets/hour (Subject to paper quality and size) |
| Total Power Required |
9 KW |
Specifications are subject to change without notice
Laminated Sheets Separation System
Main purpose is to separate the heavily overlapped sheets from pressing conveyor of laminator and deliver laminated sheets to paper collection system
Pre-stack System
Pre-stack system is to collect with laminated sheets separation system, and stack one pile of sheets neatly and deliver to flip flop system. Stack height is adjustable by entering number of sheets into HMI and paper push is driven by motor
Touch Screen (HMI)
To enter paper size, paper quantity and start the machine running.
Paper Flip Flop System
Paper Loosening System
Paper Lifting System
Paper lifting system is driven by Innovance servo motor
Paper Collecting System
Paper Delivery System

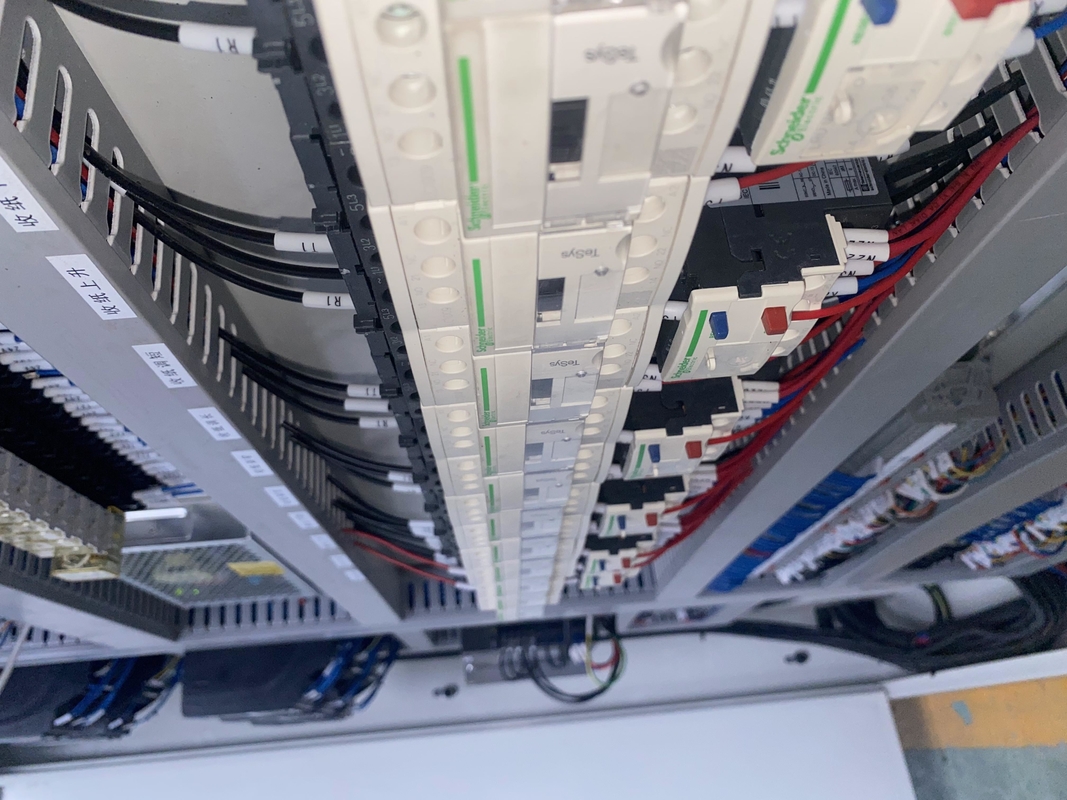

Control Cabinet
