ISO Automatic Paper Stacking Machine 10000 Sheets / Hour

ISO Automatic Paper Stacking Machine 10000 Sheets / Hour
ISO Automatic Paper Stacking Machine 10000 Sheets / Hour ISO Automatic Paper Stacking Machine 10000 Sheets / Hour ISO Automatic Paper Stacking Machine 10000 Sheets / Hour ISO Automatic Paper Stacking Machine 10000 Sheets / Hour

Large Image :  ISO Automatic Paper Stacking Machine 10000 Sheets / Hour

Product Details:
Place of Origin: China
Brand Name: DINGXING/DINGYI
Certification: ISO/CE
Model Number: FZ-2100L
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 22000-40000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 45 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 20 Set/Month

ISO Automatic Paper Stacking Machine 10000 Sheets / Hour

Description
Max. Working Size: 2100mm*2100mm Min. Working Size: 600mm*600mm
Max. Speed: 10000 Piece/Hour Automation: Aotumatic Stacker Out And Pallet Change
High Light:

ISO Automatic Paper Stacking Machine

,

Paper Stacking Machine 10000 Sheets / Hour

,

10000 Sheets / Hour Automatic Stacking Machine

FZ-2100L Rotary Stacker

Automatic Flip Flop Stacker

In order to achieve best efficiency for High Speed Laminator, this flip flop stacker is to track the speed of the laminator and collect laminated sheets in piles neatly and automatically, and be integrated into one production line with flute laminator to increase efficiency.



Description:



1, Integrated with flute laminator to ensure automatic collection, stacking of laminated sheets.

2,Fully intermittent turning, flip-flop stacking sheets into an organised and smooth piling.

3, Stacked by one pile of up and one pile of down or two piles up and two piles down subject to paper thickness and job request.

4.Automatic paper pile height setting.

5.Touch screen operation, user-friendly and easy to run.

6 Time-saving, labor-saving and production efficient.

7. Max speed is 10000 sheets per hour.

ISO Automatic Paper Stacking Machine 10000 Sheets / Hour 0



Specifications:

Model FZ-2100L
Max. Sheet Size 2100(W)*2100(L)(mm)
Min. Sheet Size 600(W)*600(L)(mm)
Max. Speed 6000-1000Sheets/hour (Subject to paper quality and size)
Total Power Required 9 KW

Specifications are subject to change without notice



Laminated Sheets Separation System

Main purpose is to separate the heavily overlapped sheets from pressing conveyor of laminator and deliver laminated sheets to paper collection system



ISO Automatic Paper Stacking Machine 10000 Sheets / Hour 1





Pre-stack System

Pre-stack system is to collect with laminated sheets separation system, and stack one pile of sheets neatly and deliver to flip flop system. Stack height is adjustable by entering number of sheets into HMI and paper push is driven by motor



ISO Automatic Paper Stacking Machine 10000 Sheets / Hour 2



Touch Screen (HMI)

To enter paper size, paper quantity and start the machine running.

ISO Automatic Paper Stacking Machine 10000 Sheets / Hour 3





Paper Flip Flop System



ISO Automatic Paper Stacking Machine 10000 Sheets / Hour 4

ISO Automatic Paper Stacking Machine 10000 Sheets / Hour 5



Paper Loosening System



ISO Automatic Paper Stacking Machine 10000 Sheets / Hour 6

Paper Lifting System



Paper lifting system is driven by Innovance servo motor



ISO Automatic Paper Stacking Machine 10000 Sheets / Hour 7





Paper Collecting System

ISO Automatic Paper Stacking Machine 10000 Sheets / Hour 8

Paper Delivery System

ISO Automatic Paper Stacking Machine 10000 Sheets / Hour 9

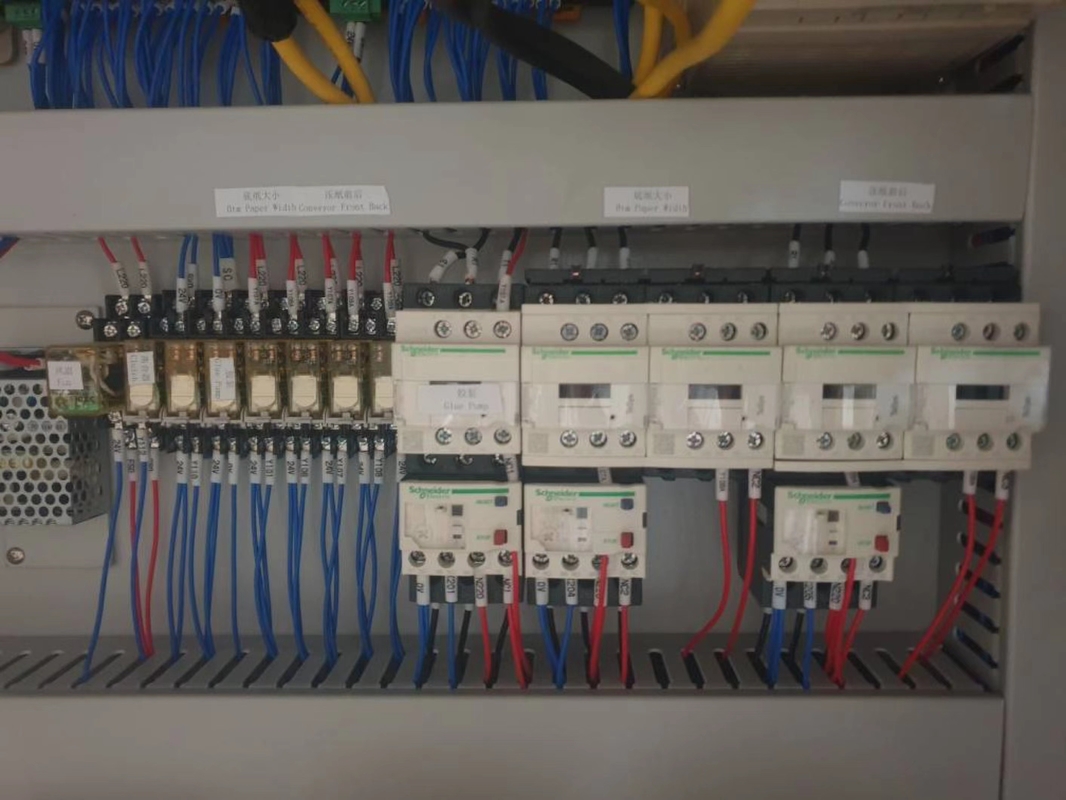

Control Cabinet

ISO Automatic Paper Stacking Machine 10000 Sheets / Hour 10

ISO Automatic Paper Stacking Machine 10000 Sheets / Hour 11
