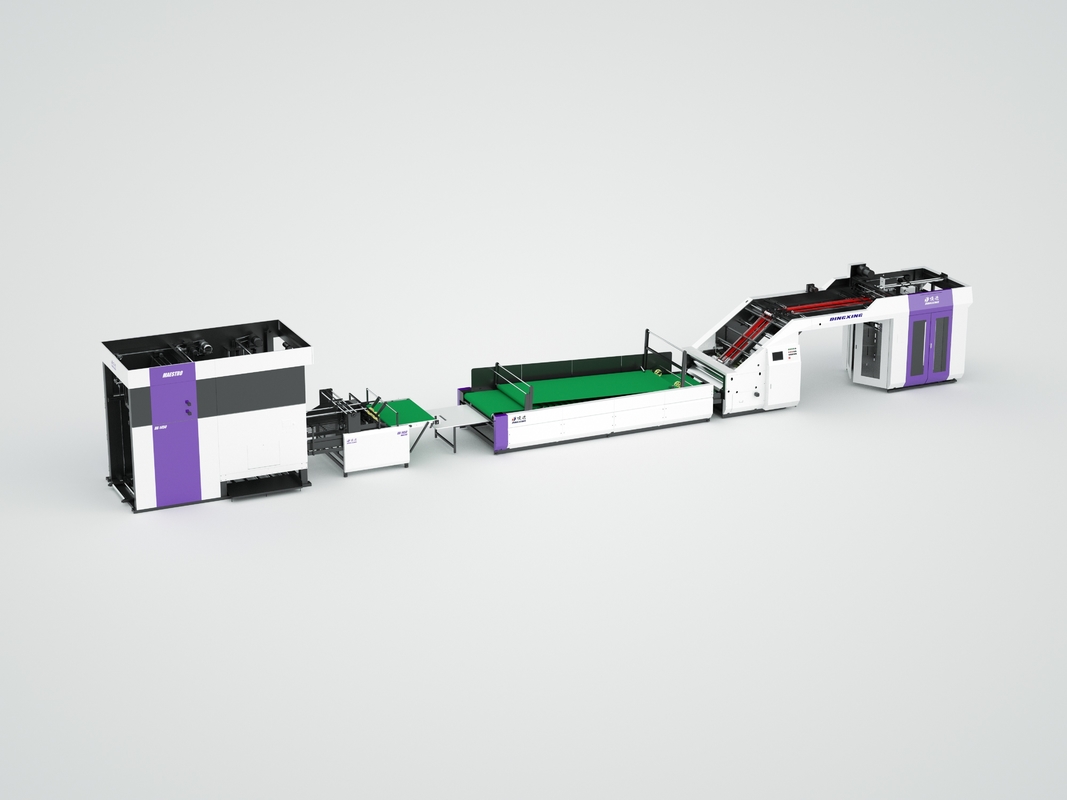

1650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour

1650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour
1650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour 1650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour 1650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour 1650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour

Large Image :  1650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour

Product Details:
Place of Origin: China
Brand Name: DINGXING/DINGYI
Certification: ISO/CE
Model Number: DW-1650
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 20000-60000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 70 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 SET/MONTH

1650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour

Description
Max. Speed: 5000 Piece/Hour Top Sheet GSM: 120-600
Bottom Sheet GSM: 300-800 Lamination Accuracy: ±1.5mm
High Light:

1650*1400mm flute lamination pasting machine

,

5000 Sheets / Hour flute lamination machine

,

1650*1400mm flute lamination machine

DW-1650 Two Flute One Sheet Laminator



Model

Modelo

DW-1650

Max. SheetSize(WxL)

Tamaño máximo (WxL)

1650x1400mm(65x55’)



Min. Sheet Size(WxL)

Tamaño mínimo de tabla

450x450mm(18x18’)

Thickness of litho

Espesor de Litho

150~800gsm

Thickness of middle

Espesor de medio

300-800gsm(single flute)

Thickness of substrate

Espesor del sustrato

300~800gsm (Up to 10mm Thick)

A~N Single Layer/ 3/5Layers Corrugated Boards, Grey Paperboards and Cardboards

Accuracy

Precisión de laminado

±2mm(Subject to Paper Quality and Specifications)

Speed

velocidad

0 -5000sheets/hour(Subject to Paper Quality and Specifications)

Power

Longitud total

AC~380V(30HP)

Total weight

Peso todo

9800kg



Main Features



  • Automatic 5Ply Flute Laminator is fortified model adopting two bottom feeders and one top feeder, especially suitable for laminating two single flutes and one top cardboard into 5 ply or two single flutes into corrugated boards, also acting as a regular flute laminator to transfer thicker and large-sized boards smoothly and freely, operator friendly.

  • Automatic 5Ply Flute Laminator is applied in broad scope of papers, substrate papers from cardboards, grey paperboards, single layer/ three/five layers corrugated boards which can be laminated easily and accurately, and total boards from 2 bottom feeders are maximum 8 layers

1650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour 01650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour 1
