Hot Knife Thermal Film Laminator For 6-25um PET Metalized Films

Hot Knife Thermal Film Laminator For 6-25um PET Metalized Films
Hot Knife Thermal Film Laminator For 6-25um PET Metalized Films Hot Knife Thermal Film Laminator For 6-25um PET Metalized Films Hot Knife Thermal Film Laminator For 6-25um PET Metalized Films Hot Knife Thermal Film Laminator For 6-25um PET Metalized Films

Large Image :  Hot Knife Thermal Film Laminator For 6-25um PET Metalized Films

Product Details:
Place of Origin: CHINA
Brand Name: MTM/DINGXING
Certification: ISO/CE
Model Number: MTM-130E3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 50000-80000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 SET/MONTH

Hot Knife Thermal Film Laminator For 6-25um PET Metalized Films

Description
Max. Laminating Width (mm): 1080 Max Sheet W×L (mm): 1080X1300
Min Sheet W×L (mm): 350×350 Paper Thickness (gsm): 100-500
High Light:

Hot Knife Thermal Film Laminator

,

25um PET Metalized Thermal Film Laminator

,

PET Metalized Hot Knife Film Laminator

MTM-130E3 Automatic Chain Knife Film Laminator

MTM-E Automatic Film Laminator

Description Quantity

Automatic Chain Knife Film Laminator 1 SET Model: MTM-130 E3

Hot Knife Thermal Film Laminator For 6-25um PET Metalized Films 0







Automatic Hot Knife Film Laminator

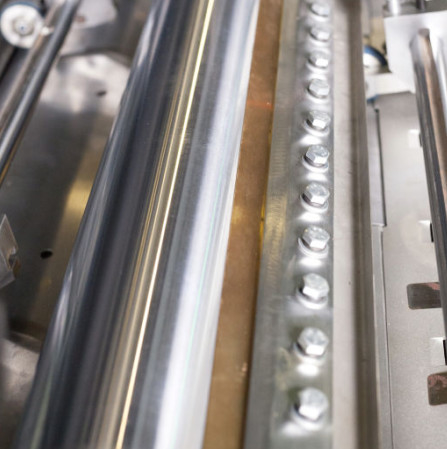

Hot knife cutting blade is suitable for all films, especially PET film,metalized films(metpet) etc..

General features:

●High efficient: Power consumption of hot knife is as low as 0.4kW.

●No tail film: knife blade temperatures rose to 400 °C within 3 seconds to ensure net and quick cutting.

●High Speed Cut: 80 meters per minute.

●High cut accuracy: Double laser self-aligning device ensures perfect cutting effect.

●High precision ceramic anilox coating roller as standard to ensure super even gluing, no glue stripes, longer roller life, anti-corrosion, glue saving(5g/sqm).

●Non-stop paper feeder system enables continuous feeding without machine stop to minimize waste film.

●Electric thermal powder-removal system ensures clean paper surface to enhance lamination quality.

●Electric glue drying system combined with heat recirculation system to guarantee quick heating to dry the glue and power saving.(30kW consumption in production)



Specification Sheet



MODEL MTM-108E MTM-130E

Max. laminating width (mm)



1080 1080
Max sheet W×L (mm) 1080×950 1080X1300
Min sheet W×L (mm) 350×350 350×350
Paper thickness (gsm) 100-500 100-500
Film thickness (µm) 6--25 6--25
Machine speed (m/min) 10-70 10-70
Machine Dimension L*W*H (mm) 10765*2754*2926 10300*2366*2900
Machine weight (kgs) 8600 9500

Total power (kw)



68kW

30kW(Production)

68kW

30kW(Production)





Standard Function Sections:

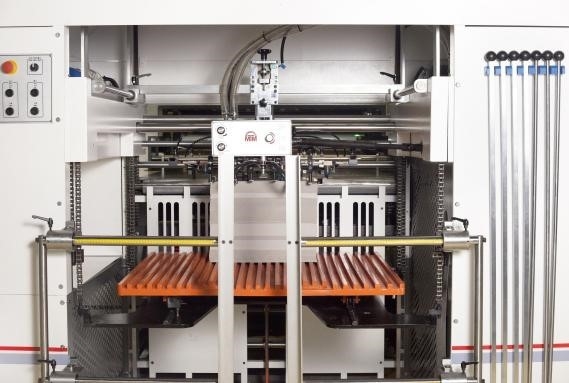

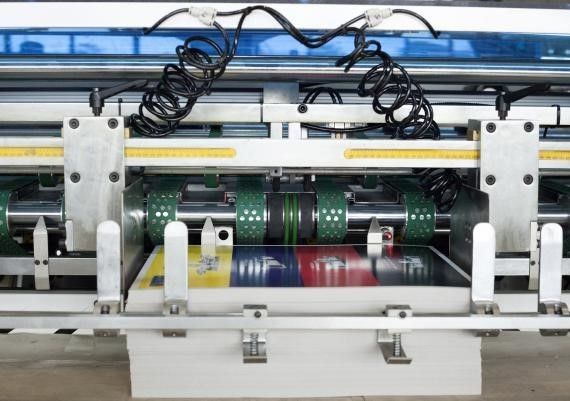

  1. Automatic feeder

-Servo control automatic high speed feeder.

-Non-stop feeding device.



Hot Knife Thermal Film Laminator For 6-25um PET Metalized Films 1







B. Side lay register

-Mechanical side lay register

-High speed paper registration.

Hot Knife Thermal Film Laminator For 6-25um PET Metalized Films 2



C. Powder Removal System



-Electrostatic paper powder collector as standard

- to increase paper brightness and reduce the amount of glue.



Hot Knife Thermal Film Laminator For 6-25um PET Metalized Films 3

D. Laminating Section







- Electromagnetic heating system , quick heating , energy saving and environmental protection.


Hot Knife Thermal Film Laminator For 6-25um PET Metalized Films 4



E. Coating System:(with Electromagnetic energy-saving system)



- Precision ceramic roller coating , glue saving.


Hot Knife Thermal Film Laminator For 6-25um PET Metalized Films 5





F. Drying system:(with Electromagnetic energy-saving system)



- Hot air circulation system , high speed drying , power saving.

Hot Knife Thermal Film Laminator For 6-25um PET Metalized Films 6



G. Automatic cutting





-Chain knife cutting system suitable for PET/OPP/PVC film cutting

-Servo automatic tracking control

-Servo control tension

-Laser positioning, accurate and precise



Hot Knife Thermal Film Laminator For 6-25um PET Metalized Films 7



  1. Automatic Non-stop Stacker

-Three sides paper aligning , automatic speed reduction , double sheet removal device.

Hot Knife Thermal Film Laminator For 6-25um PET Metalized Films 8
