PUR Adhesive 100-500GSM Paper Film Laminating Machine High Speed

Certification
China Dongtai Dingxing Machinery Technology Co., Ltd certification
China Dongtai Dingxing Machinery Technology Co., Ltd certification
I'm Online Chat Now

PUR Adhesive 100-500GSM Paper Film Laminating Machine High Speed

PUR Adhesive 100-500GSM Paper Film Laminating Machine High Speed
PUR Adhesive 100-500GSM Paper Film Laminating Machine High Speed PUR Adhesive 100-500GSM Paper Film Laminating Machine High Speed PUR Adhesive 100-500GSM Paper Film Laminating Machine High Speed PUR Adhesive 100-500GSM Paper Film Laminating Machine High Speed

Large Image :  PUR Adhesive 100-500GSM Paper Film Laminating Machine High Speed

Product Details:
Place of Origin: CHINA
Brand Name: MTM/DINGXING
Certification: ISO/CE
Model Number: MTM-108E3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 40000-70000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 SET/MONTH

PUR Adhesive 100-500GSM Paper Film Laminating Machine High Speed

Description
Max. Laminating Width (mm): 1080 Max Sheet W×L (mm): 1080×950
Min Sheet W×L (mm): 350×350 Paper Thickness (gsm): 100-500
High Light:

500GSM Paper Film Laminating Machine

,

PUR Adhesive Paper Film Laminating Machine

,

500GSM Paper pur laminating machine

MTM-108E3 Film Laminator Equip with Chain Knife

MTM-E Automatic Hot Knife Film Laminator

Description Quantity

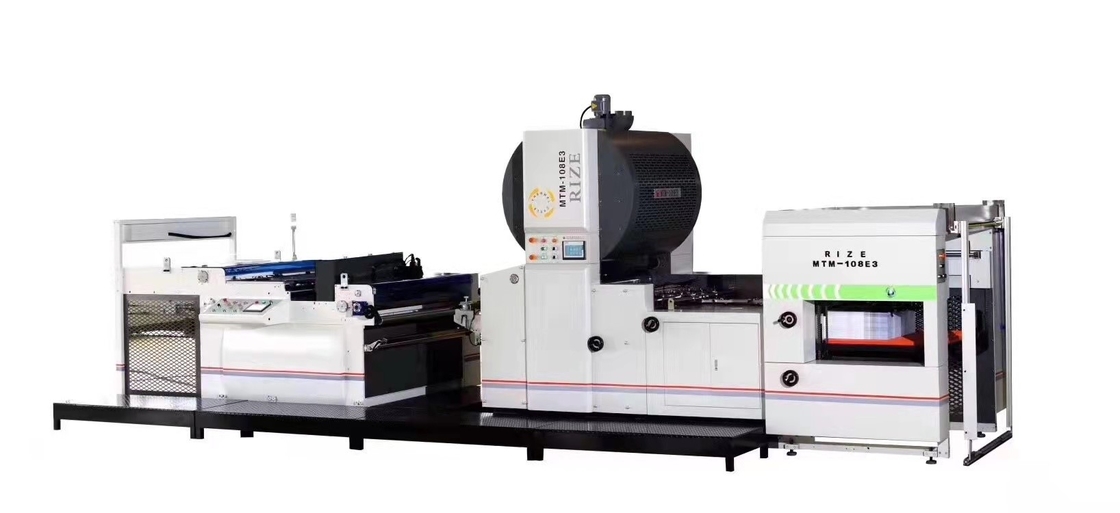

Automatic Chain Knife Film Laminator 1 SET Model: MTM-108E3

PUR Adhesive 100-500GSM Paper Film Laminating Machine High Speed 0







Automatic Hot Knife Film Laminator

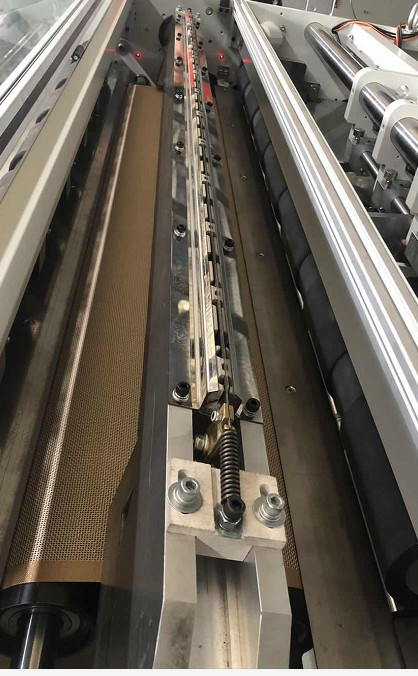

Hot knife cutting blade is suitable for all films, especially PET film,metalized films(metpet) etc..

General features:

●High efficient: Power consumption of hot knife is as low as 0.4kW.

●No tail film: knife blade temperatures rose to 400 °C within 3 seconds to ensure net and quick cutting.

●High Speed Cut: 80 meters per minute.

●High cut accuracy: Double laser self-aligning device ensures perfect cutting effect.

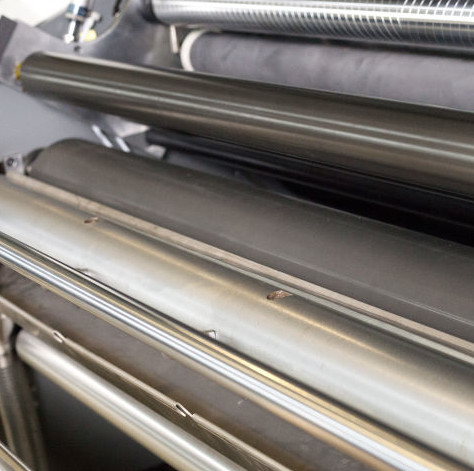

●High precision ceramic anilox coating roller as standard to ensure super even gluing, no glue stripes, longer roller life, anti-corrosion, glue saving(5g/sqm).

●Non-stop paper feeder system enables continuous feeding without machine stop to minimize waste film.

●Electric thermal powder-removal system ensures clean paper surface to enhance lamination quality.

●Electric glue drying system combined with heat recirculation system to guarantee quick heating to dry the glue and power saving.(30kW consumption in production)



Specification Sheet



MODEL MTM-108E MTM-145E

Max. laminating width (mm)



1080 1080
Max sheet W×L (mm) 1080×950 1080X1450
Min sheet W×L (mm) 350×350 350×350
Paper thickness (gsm) 100-500 100-500
Film thickness (µm) 6--25 6--25
Machine speed (m/min) 10-70 10-70
Machine Dimension L*W*H (mm) 10765*2754*2926 12994*2754*2926
Machine weight (kgs) 8600 10200

Total power (kw)



68kW

30kW(Production)

68kW

30kW(Production)





PUR Adhesive 100-500GSM Paper Film Laminating Machine High Speed 1PUR Adhesive 100-500GSM Paper Film Laminating Machine High Speed 2
