ISO Chain Knife Film Laminator Machine Hot Knife Thermal Film Laminator

ISO Chain Knife Film Laminator Machine Hot Knife Thermal Film Laminator
ISO Chain Knife Film Laminator Machine Hot Knife Thermal Film Laminator ISO Chain Knife Film Laminator Machine Hot Knife Thermal Film Laminator ISO Chain Knife Film Laminator Machine Hot Knife Thermal Film Laminator ISO Chain Knife Film Laminator Machine Hot Knife Thermal Film Laminator

Large Image :  ISO Chain Knife Film Laminator Machine Hot Knife Thermal Film Laminator

Product Details:
Place of Origin: CHINA
Brand Name: MTM/DINGXING
Certification: ISO/CE
Model Number: MTM-130E3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 50000-80000/SET
Packaging Details: Meteorological anti-rust film and steel bottom bracket
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 SET/MONTH

ISO Chain Knife Film Laminator Machine Hot Knife Thermal Film Laminator

Description
Max. Laminating Width (mm): 1080 Max Sheet W×L (mm): 1080X1300
Min Sheet W×L (mm): 350×350 Paper Thickness (gsm): 100-500
High Light:

ISO Chain Knife Film Laminator Machine

,

hot knife thermal film laminator

,

Chain Knife thermal film laminator

MTM-130E3 Chain Cutter Film Laminator



MTM-E Automatic Film Laminator

Description Quantity

Automatic Chain Knife Film Laminator 1 SET Model: MTM-130 E3

ISO Chain Knife Film Laminator Machine Hot Knife Thermal Film Laminator 0

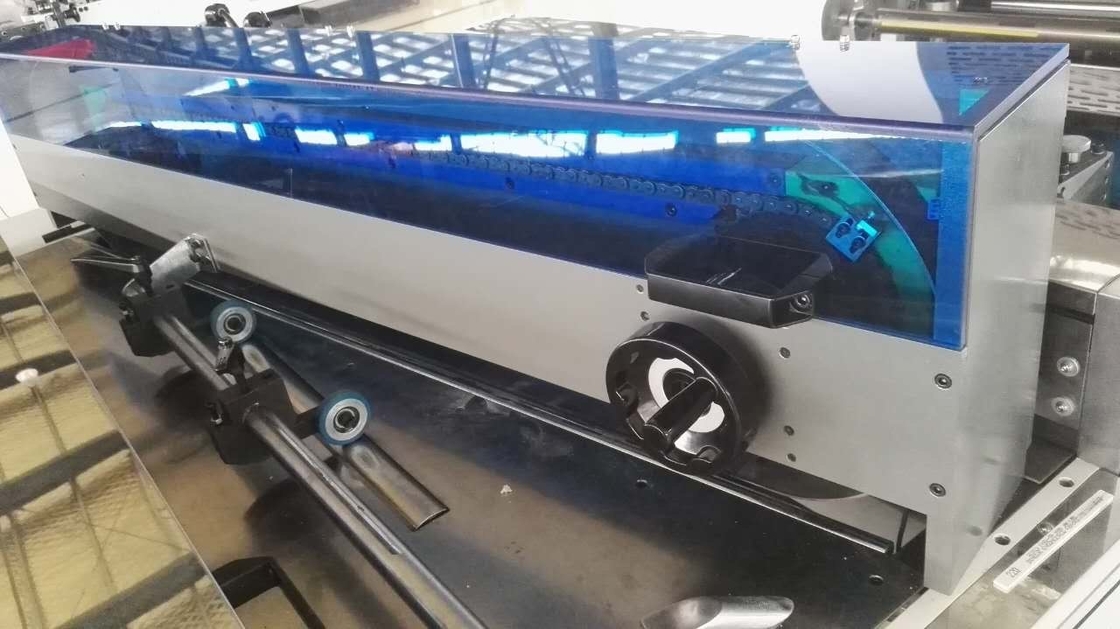

Automatic Hot Knife Film Laminator

Hot knife cutting blade is suitable for all films, especially PET film,metalized films(metpet) etc..

General features:

●High efficient: Power consumption of hot knife is as low as 0.4kW.

●No tail film: knife blade temperatures rose to 400 °C within 3 seconds to ensure net and quick cutting.

●High Speed Cut: 80 meters per minute.

●High cut accuracy: Double laser self-aligning device ensures perfect cutting effect.

●High precision ceramic anilox coating roller as standard to ensure super even gluing, no glue stripes, longer roller life, anti-corrosion, glue saving(5g/sqm).

●Non-stop paper feeder system enables continuous feeding without machine stop to minimize waste film.

●Electric thermal powder-removal system ensures clean paper surface to enhance lamination quality.

●Electric glue drying system combined with heat recirculation system to guarantee quick heating to dry the glue and power saving.(30kW consumption in production)



Specification Sheet



MODEL MTM-108E MTM-130E

Max. laminating width (mm)



1080 1080
Max sheet W×L (mm) 1080×950 1080X1300
Min sheet W×L (mm) 350×350 350×350
Paper thickness (gsm) 100-500 100-500
Film thickness (µm) 6--25 6--25
Machine speed (m/min) 10-70 10-70
Machine Dimension L*W*H (mm) 10765*2754*2926 10300*2366*2900
Machine weight (kgs) 8600 9500

Total power (kw)



68kW

30kW(Production)

68kW

30kW(Production)



ISO Chain Knife Film Laminator Machine Hot Knife Thermal Film Laminator 1ISO Chain Knife Film Laminator Machine Hot Knife Thermal Film Laminator 2ISO Chain Knife Film Laminator Machine Hot Knife Thermal Film Laminator 3ISO Chain Knife Film Laminator Machine Hot Knife Thermal Film Laminator 4ISO Chain Knife Film Laminator Machine Hot Knife Thermal Film Laminator 5
