Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker

Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker
Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker

Large Image :  Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker

Product Details:
Place of Origin: SHENZHEN
Brand Name: DINGXING/DINGYI
Payment & Shipping Terms:
Price: $30,000.00/sets >=1 sets
Packaging Details: standard packing
Supply Ability: 10 Set/Sets per Month

Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker

Description
Type: Laminating Machine Applicable Industries: Manufacturing Plant, Paper Laminating Industry, Paper Packing Machine
Showroom Location: Canada, United States, Chile, Colombia, Poland Video Outgoing-inspection: Provided
Machinery Test Report: Provided Warranty Of Core Components: 2 Years
Core Components: PLC, Engine, Bearing, Gearbox, Motor Condition: New
Application: Food, Commodity Packaging Type: Cartons, Paper
Packaging Material: Paper Automatic Grade: Automatic
Driven Type: Electric Voltage: Customized
Dimension(L*W*H): 11985*2420*2500mm Weight: 6500 KG
Warranty: 1 Year Key Selling Points: High-accuracy
Machine Type: Flip Flop Stacker Speed: High Speed
After Warranty Service: Online Support, Field Maintenance And Repair Service After-sales Service Provided: Engineers Available To Service Machinery Overseas, Free Spare Parts
Min.Sheet Size: 500*500mm Max.Sheet Size: 2100*2100mm
Max. Speed: 10000pcs/h Certificate: CE ISO
Business Type: Manufacturer Direct Sales Company History: More Than 40 Years
Marketing Type: Hot Product 2021 Port: Qingdao
High Light:

Litho Flute Laminator Machine

,

Plc Control Litho Laminator

,

10000pcs/H Flute Laminator Machine

AutoFlip Flop Stacker

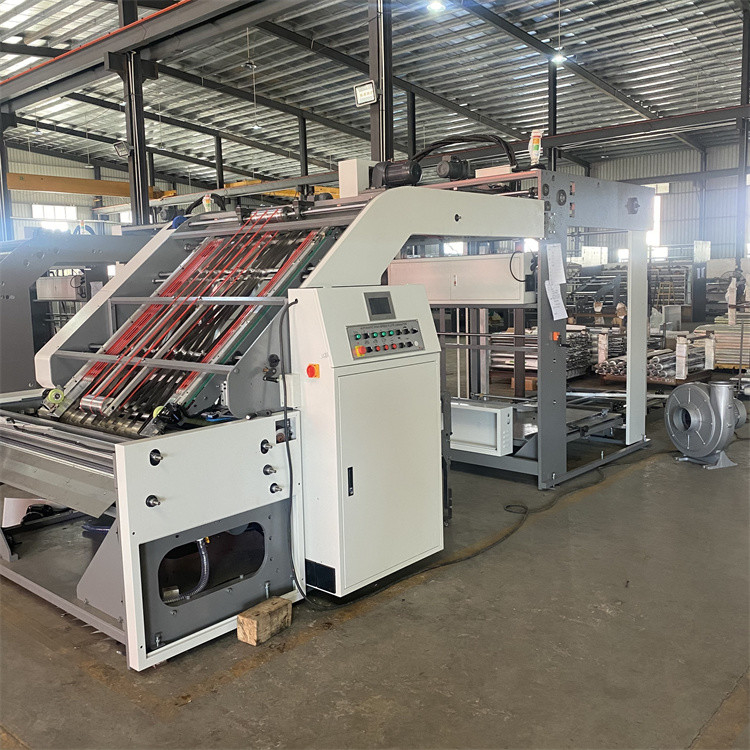

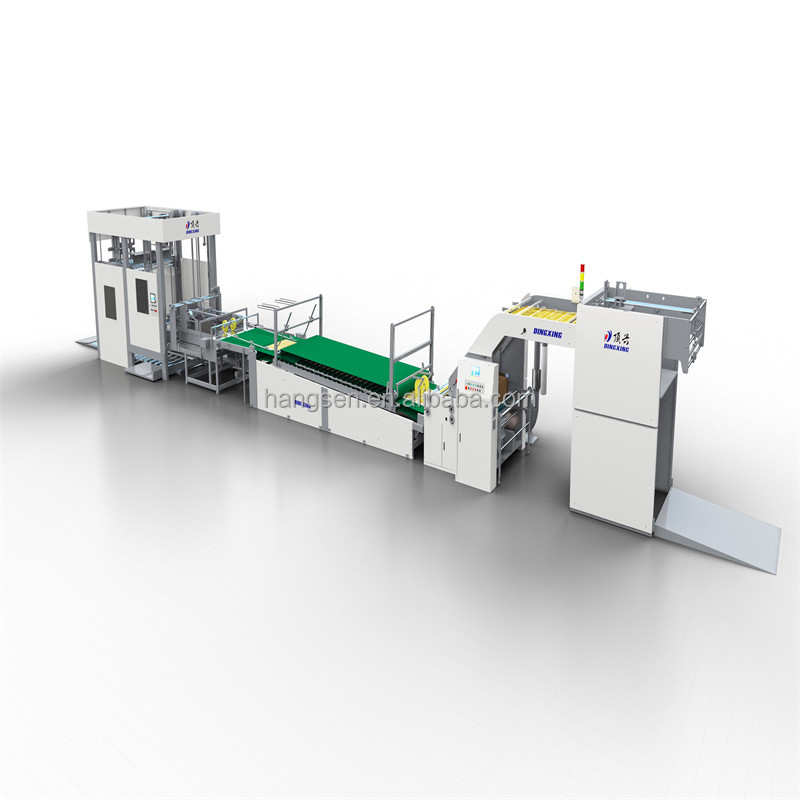

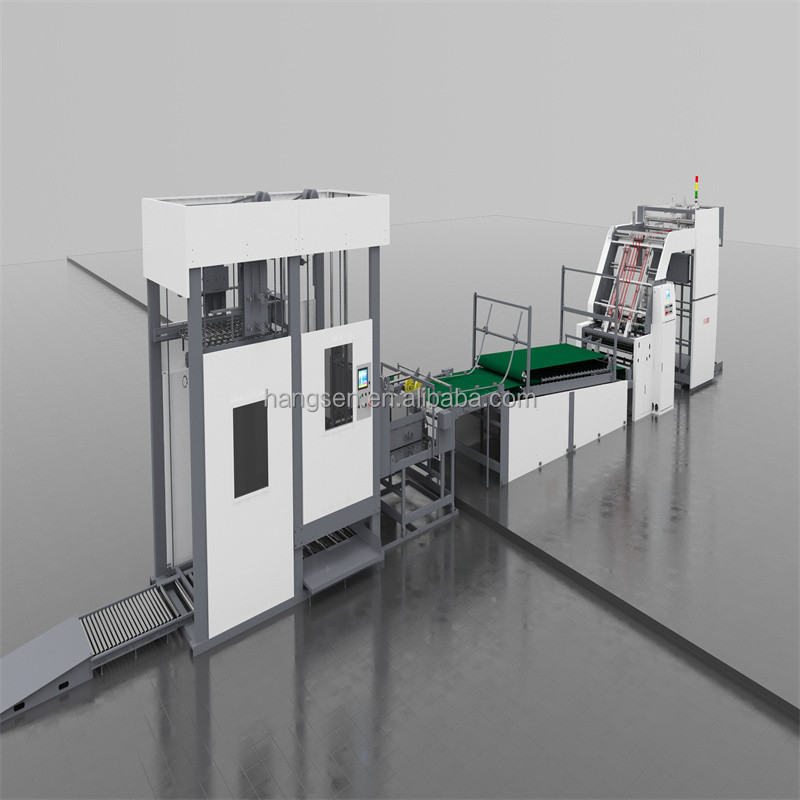

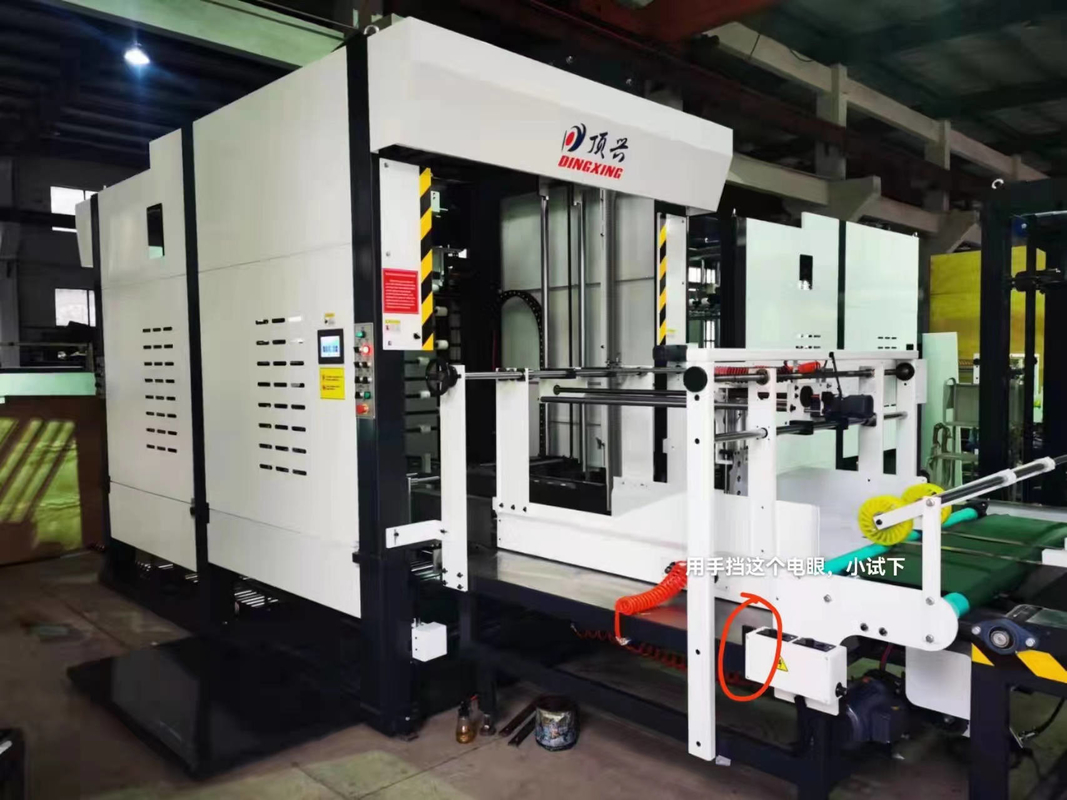

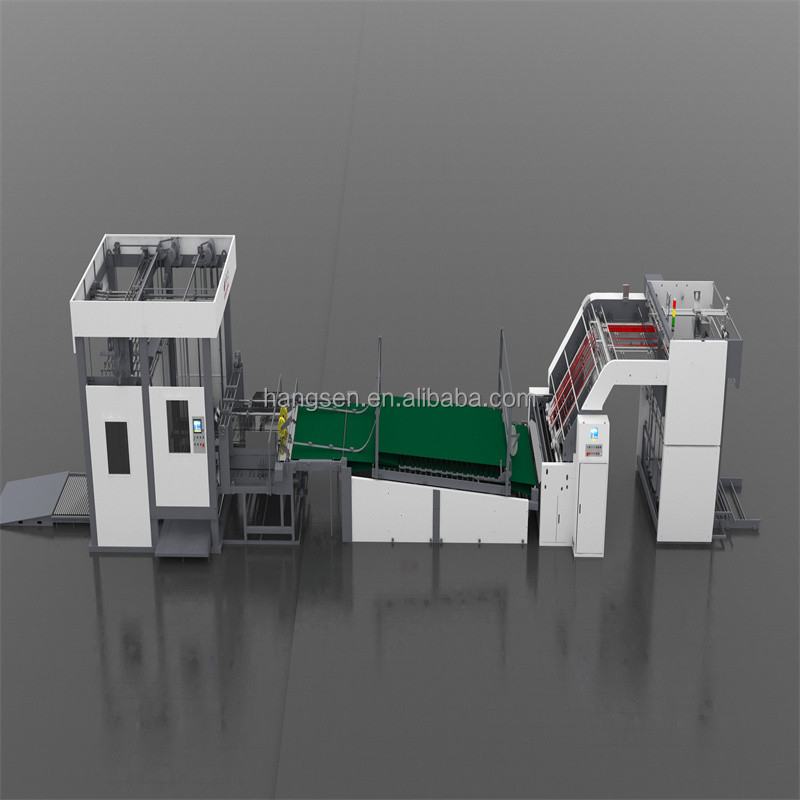

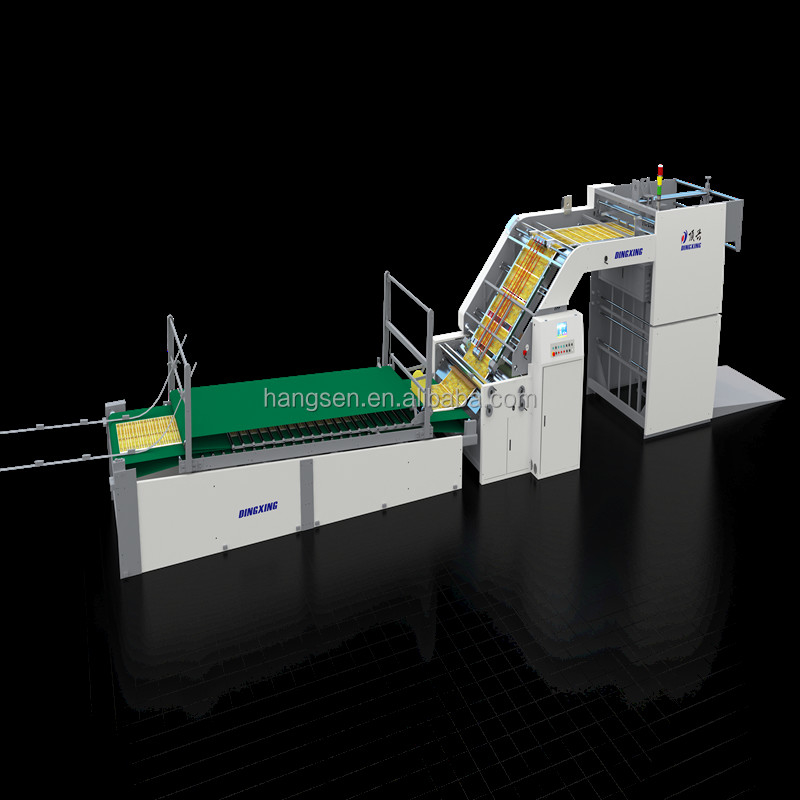

Automatic Servo Motor Flute Litho Laminator Flip Flop Stacker

• Integrated with flute laminator machine to fulfil the automatic

finished laminated cardboard collection and stack.

• Fully automatic Intermittent turning, flip-flop stacking in order.

• Time saving, Labor saving, production efficiency improving.

• Stacked by one pile of up and one pile of down or two piles of up and

two piles of down subject to paper pile thickness and operation

request.

• Automatic paper pile height setting.

• Touch screen operation, easy to learn.

• Max speed is 10000 copies per hour.





Model

FZ-1450

FZ-1650

FZ-1650L

FZ-2100

FZ-2100L

Length A (mm)

6760

6960

6960

6960

6960

Width B (mm)

2320

2320

2520

2520

2520

Height C (mm)

2900

3100

3100

3100

3100

Maximum size (mm)

1450*1450

1650*1450

1650*1650

2100*1650

2100*2100

Minimum size (mm)

500*500

600*600

600*600

600*600

600*600

Machine power

7.8KW

7.8KW

7.8KW

7.8KW

7.8KW

























Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker 0



Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker 1

Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker 2



Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker 3





Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker 4







Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker 5Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker 6Automatic Servo Motor Litho Flute Laminator Machine Flip Flop Stacker 7
