Name: 120m/Min Automatic Corrugated Boards Flute Laminator Middle Speed DF-1450S
Brand: Dongtai Dingxing Machinery Technology Co., Ltd
SKU: DF-1450S
Price: 40,000.00 USD
Availability: InStock

Home > products > Flute Laminator Machine >

120m/Min Automatic Corrugated Boards Flute Laminator Middle Speed DF-1450S

120m/Min Automatic Flute Laminator

Corrugated Boards Automatic Flute Laminator

120m/Min Corrugated Boards Flute Laminator

Place of Origin:

CHINA

Brand Name:

DINGXING/DINGYI

Certification:

ISO/CE

Model Number:

DF-1450S

Request A Quote

Product Details

Maximum Speed:

120m/min

Maximum Size:

1650*1400

Quantity Of Servo System:

2 Sets

Remote System:

Optional

Highlight:

120m/Min Automatic Flute Laminator

Corrugated Boards Automatic Flute Laminator

120m/Min Corrugated Boards Flute Laminator

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 30000-50000/SET

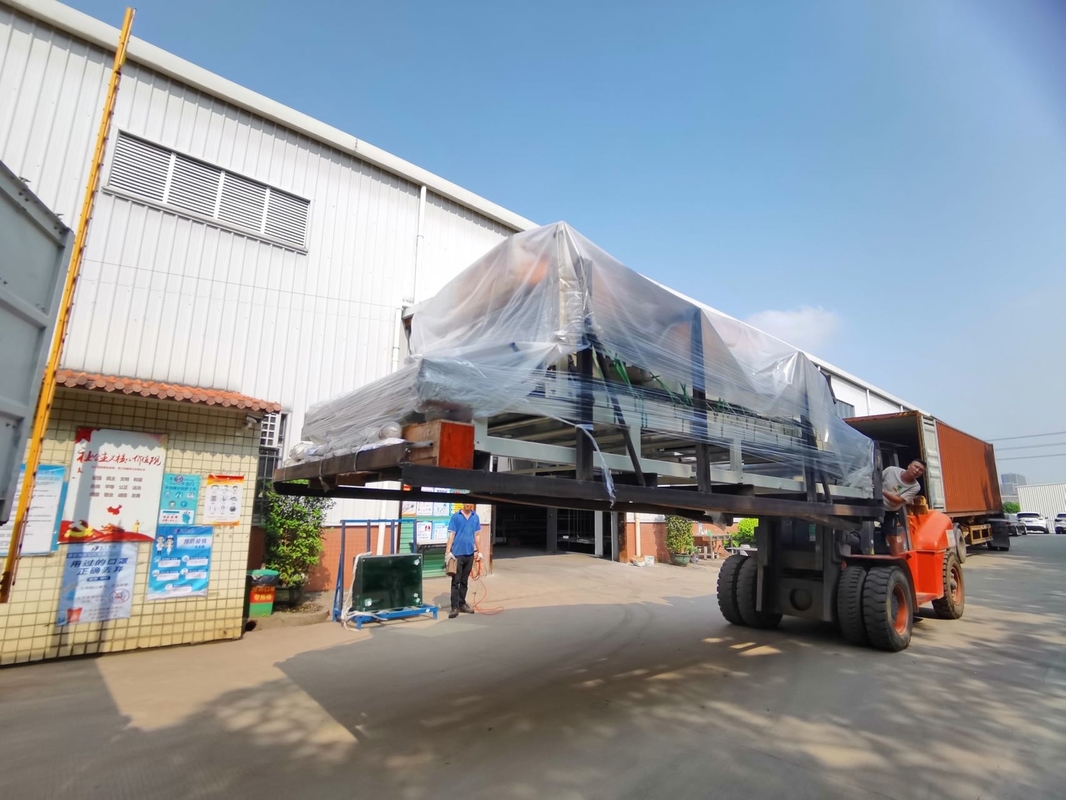

Packaging Details

Meteorological anti-rust film and steel bottom bracket

Delivery Time

30 DAYS

Payment Terms

L/C, D/A, D/P, T/T

Supply Ability

10 SET/MONTH

PLC Control Cardboard High Speed Flute Laminator 150m/Min

Get Best Price

300-800gsm Bottom Sheet Paperboard Flute Laminator Machine 5000 Piece /H

Get Best Price

120-600gsm Top Sheet Auto Flute Laminator 3Ply Corrugated Laminating Machine

Get Best Price

Middle Speed 1300*1100mm Auto Flute Laminator Machine DF-1300

Get Best Price

+86 18678943457

tony@dingxingmachinery.com

86-515-85571076

Contact Now

Product Description

Specification

DF-1450S Automatic Middle Speed Flute Laminator

Model/Modelo	BDF-1450S	BDF-1450L	BDF-1650L
Max. SheetSize(WXL) Tamaño máximo (WXL)	1450mm*1100mm (57’x43’)	1650mmx1450mm (65'x57')	1650mmx1650mm (65’x65’)
Min. Sheet Size(WXL) Tamaño mínimo de tabla	350mm*350mm (14’x14’)	400mmx400mm (16’x16')	400mmx400mm (16’x16’)
Thickness of Upper Paper Grosor del papel	120~800gsm
Thickness of Bottom Paper Grosor de fondo	300~800gsm (Up to 10mm Thick) A~N Single Layer/ Three/Five Layers Corrugated Boards, Grey Paper boards and Boards
Max. Speed Velocidad máxima	0~100 sheets/Min(Subject to Paper Quality and Specifications)
Laminating Precision Precisión de laminado	±1.5mm(Subject to Paper Quality and Specifications)
Power Poder	AC~380V(17HP)	AC~380V(17HP)	AC~380V(17HP)
Dimension: LxWxH(m) Tamaño: largo x ancho x alto (m)	12.5x2.5x2.9	15x2.6x2.9	15x2.6x2.9
Weight(kg) Peso (kg)	6500	7000	7500

Main Features

BDF Series Automatic Flute Laminator is fortified model adopting several patented mechanisms with a great improvement on mechanical system, driven system and aligning system by qualified engineers, especially suitable for transferring thicker and large-sized boards smoothly and freely, operator friendly.
This Midas Series Automatic Flute Laminator is applied in broad scope of papers, substrate papers from cardboards, grey paperboards, single layer/ three/five layers corrugated boards which can be laminated easily and accurately.
Fine selection of parts with high accuracy, high tensile and high endurance ensures stable running and long operational life so as to produce a great deal of profits for the customers.
Improvement on driven system is to cut down maintenance cost and This new system lowers the noise and swaying to ensure easy and convenient operation.
