Name: 300-800gsm Bottom Sheet Paperboard Flute Laminator Machine 5000 Piece /H
Brand: Dongtai Dingxing Machinery Technology Co., Ltd
SKU: DW-1650
Price: 40,000.00 USD
Availability: InStock

Home > products > Flute Laminator Machine >

300-800gsm Bottom Sheet Paperboard Flute Laminator Machine 5000 Piece /H

800gsm Bottom Sheet Flute Laminator Machine

Flute Laminator Machine 5000 Piece /H

5000 Piece /H paperboard laminating machine

Place of Origin:

China

Brand Name:

DINGXING/DINGYI

Certification:

ISO/CE

Model Number:

DW-1650

Request A Quote

300-800gsm Bottom Sheet Paperboard Flute Laminator Machine 5000 Piece /H

Product Details

Max. Speed:

5000 Piece/Hour

Top Sheet GSM:

120-600

Bottom Sheet GSM:

300-800

Lamination Accuracy:

±1.5mm

Highlight:

800gsm Bottom Sheet Flute Laminator Machine

Flute Laminator Machine 5000 Piece /H

5000 Piece /H paperboard laminating machine

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 20000-60000/SET

Packaging Details

Meteorological anti-rust film and steel bottom bracket

Delivery Time

70 DAYS

Payment Terms

L/C, D/A, D/P, T/T

Supply Ability

5 SET/MONTH

PLC Control Cardboard High Speed Flute Laminator 150m/Min

Get Best Price

300-800gsm Bottom Sheet Paperboard Flute Laminator Machine 5000 Piece /H

Get Best Price

120-600gsm Top Sheet Auto Flute Laminator 3Ply Corrugated Laminating Machine

Get Best Price

Middle Speed 1300*1100mm Auto Flute Laminator Machine DF-1300

Get Best Price

+86 18678943457

tony@dingxingmachinery.com

86-515-85571076

Contact Now

Product Description

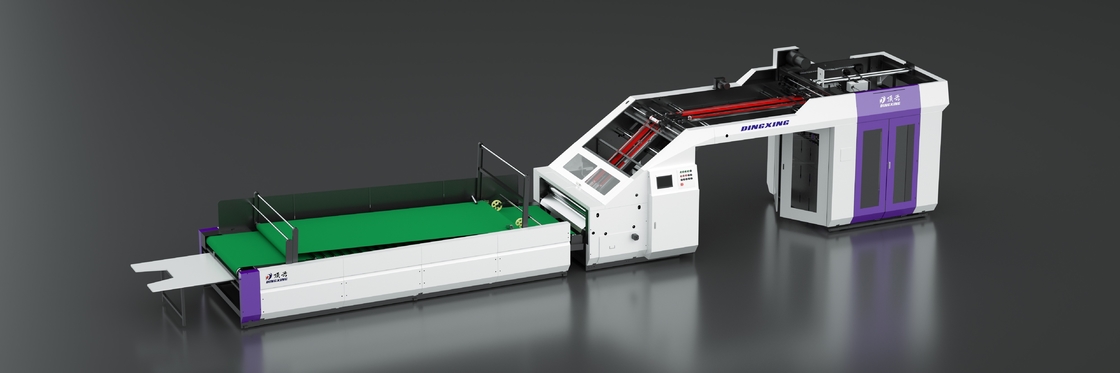

DW-1650 2+2+1 Corrugated Laminator

Model

Modelo

DW-1650

Max. SheetSize(WxL)

Tamaño máximo (WxL)

1650x1400mm(65x55’)

Min. Sheet Size(WxL)

Tamaño mínimo de tabla

450x450mm(18x18’)

Thickness of litho

Espesor de Litho

150~800gsm

Thickness of middle

Espesor de medio

300-800gsm(single flute)

Thickness of substrate

Espesor del sustrato

300~800gsm (Up to 10mm Thick)

A~N Single Layer/ 3/5Layers Corrugated Boards, Grey Paperboards and Cardboards

Accuracy

Precisión de laminado

±2mm(Subject to Paper Quality and Specifications)

Speed

velocidad

0 -5000sheets/hour(Subject to Paper Quality and Specifications)

Power

Longitud total

AC~380V(30HP)

Total weight

Peso todo

9800kg

Main Features

Automatic 5Ply Flute Laminator is fortified model adopting two bottom feeders and one top feeder, especially suitable for laminating two single flutes and one top cardboard into 5 ply or two single flutes into corrugated boards, also acting as a regular flute laminator to transfer thicker and large-sized boards smoothly and freely, operator friendly.
Automatic 5Ply Flute Laminator is applied in broad scope of papers, substrate papers from cardboards, grey paperboards, single layer/ three/five layers corrugated boards which can be laminated easily and accurately, and total boards from 2 bottom feeders are maximum 8 layers
